Test I: Memory Seat/Mirror Control Module Input Test

For test procedures, see Fig 1 .

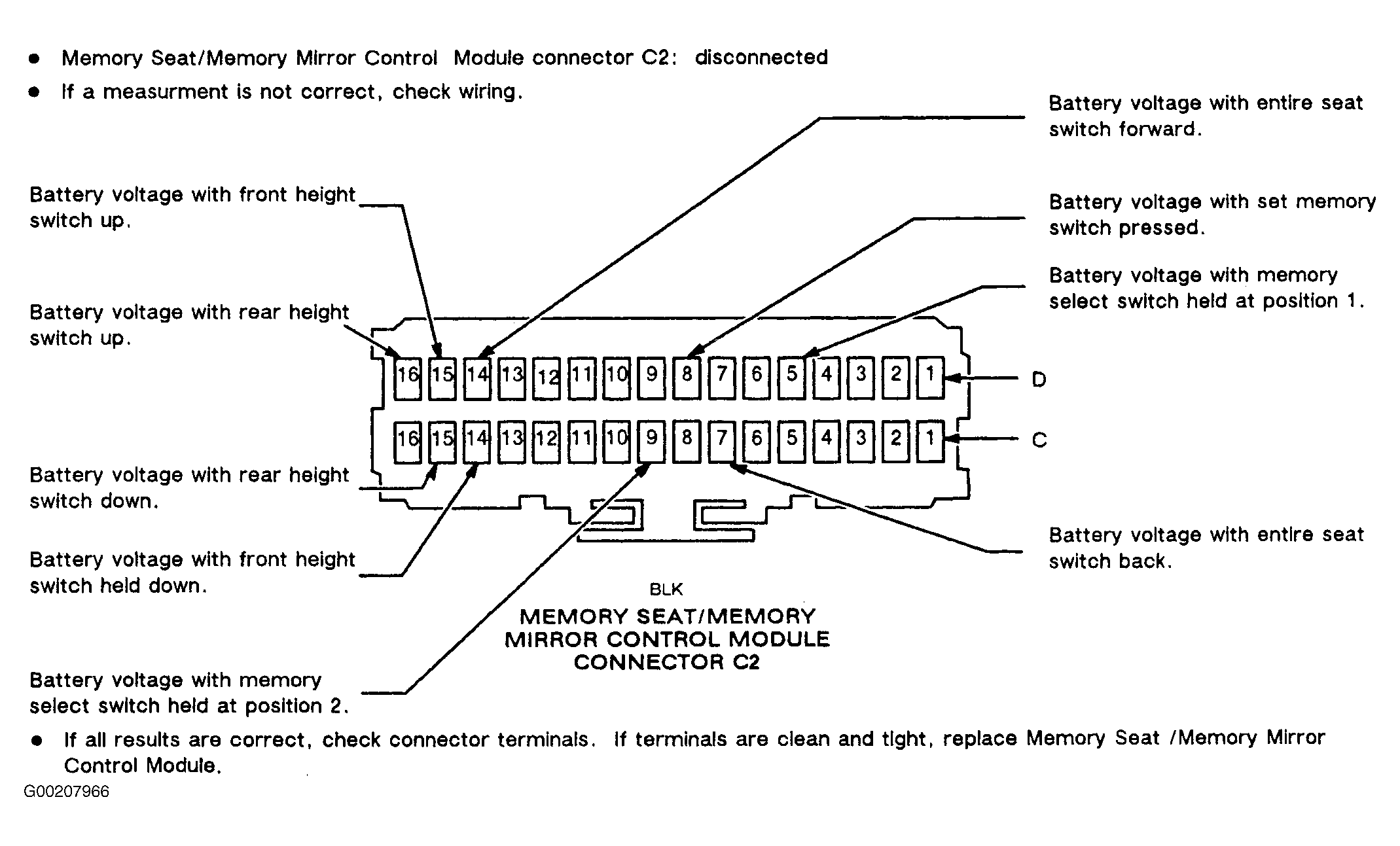

Fig 1: Test I: Memory Seat/Mirror Control Module Input Test
G00207966Courtesy of GENERAL MOTORS CORP.
