Note on Intermittents

If an intermittent Code B333 is being stored, manipulate relating wiring at DERM (SIR controller). An ELECTRICAL PROBLEM message indicates loss of data and may help locate fault.

Fig 1: Code B333: Circuit Diagram

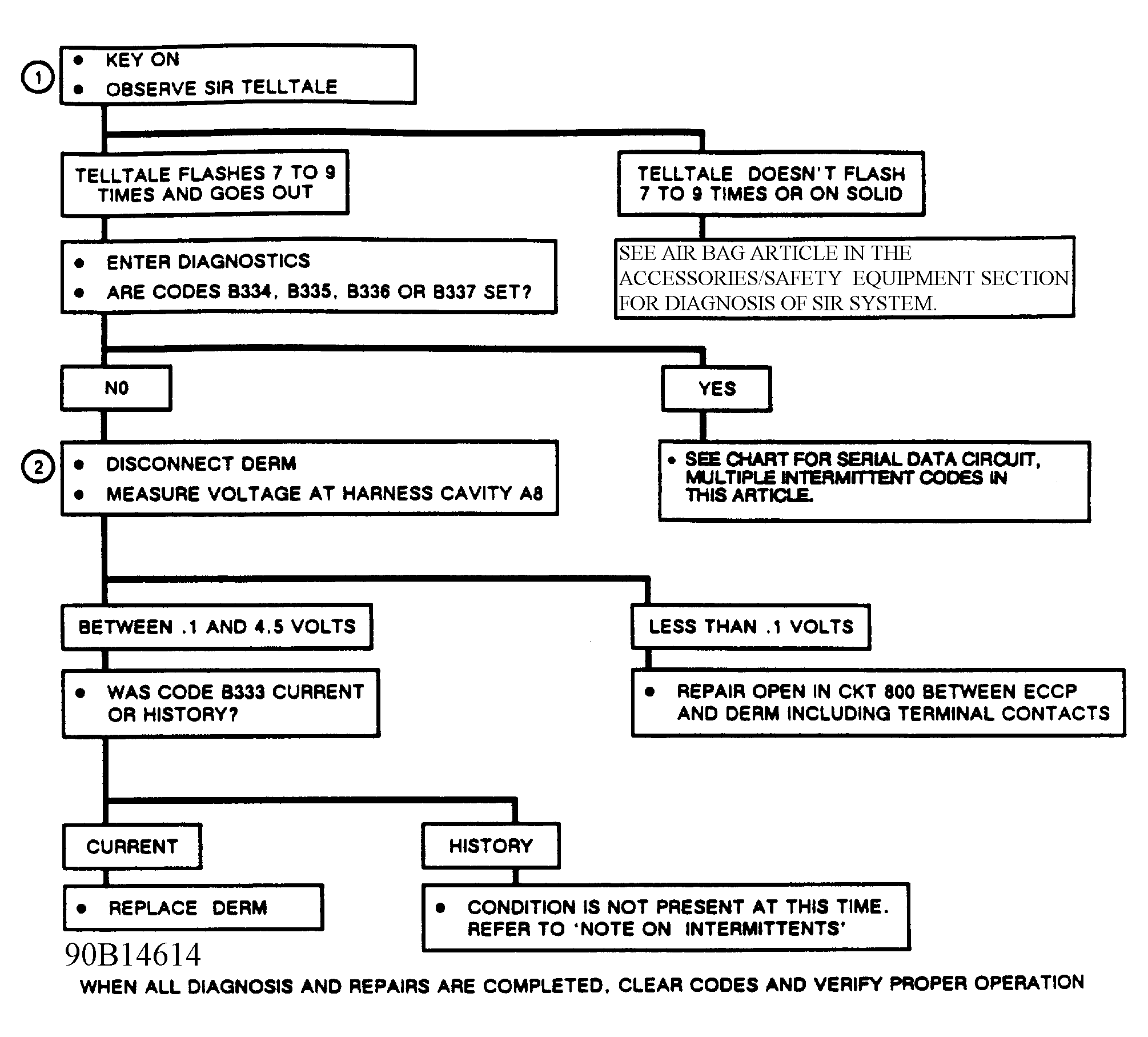

Fig 2: Code B333: Flow Chart Loss of SIR Data
