IPC Segment Check

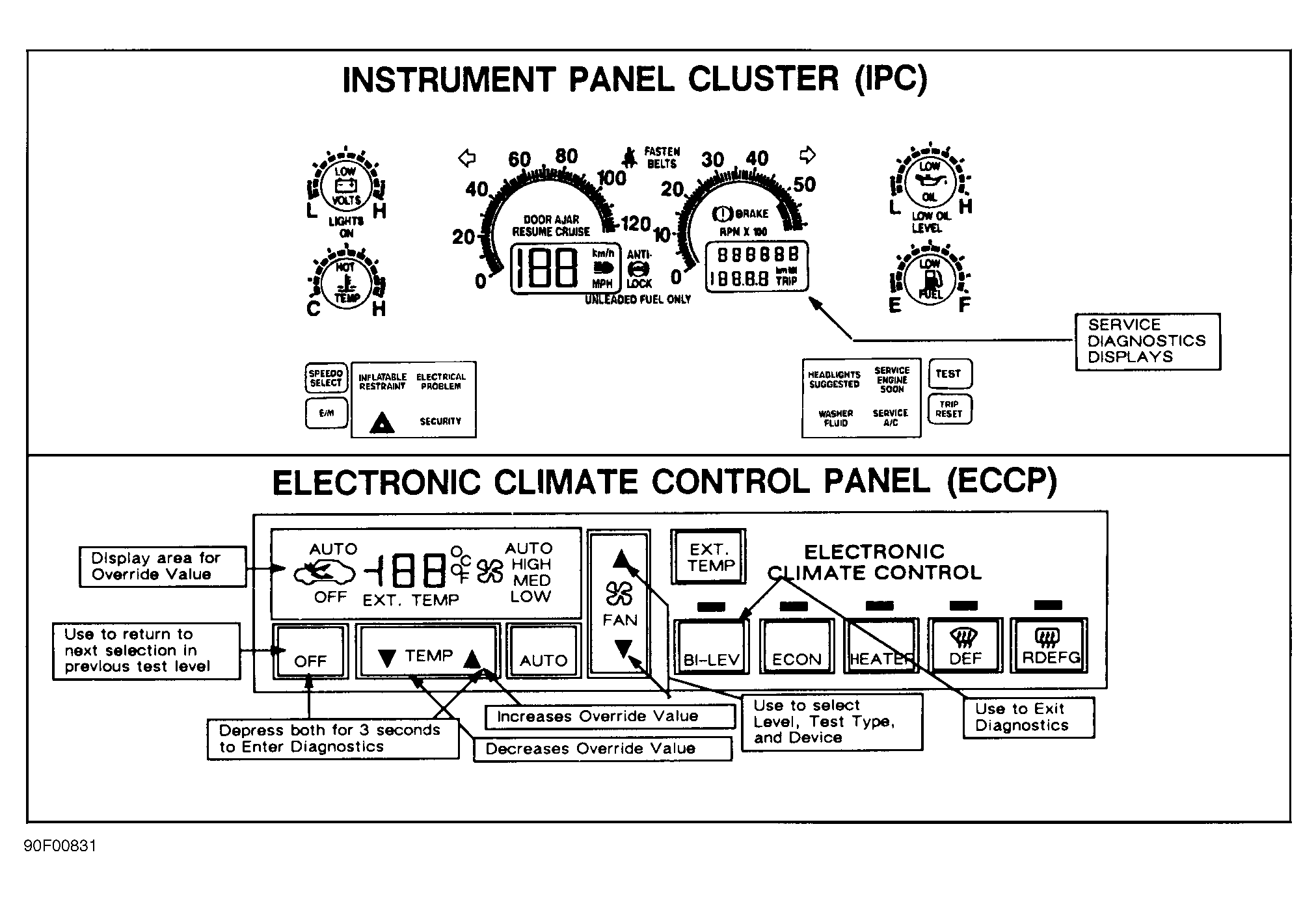

- Turn ignition switch to the ON position. Simultaneously depress OFF and WARM buttons on the Electronic Climate Control panel (ECCP). See Fig 1 .
- Continue to depress OFF and WARM button until all segments and bulbs of the IPC, the Driver Information Center (DIC) and ECCP illuminate. See Figure . When all segments are lit, system has entered self-diagnostic mode. Release OFF and WARM button.
- Illuminating the segments of the IPC, DIC and ECCP ensures all display segments are working properly. If all segments illuminate, proceed to DISPLAYING TROUBLE CODES in this article. Failure of any segment to illuminate may result in inaccurate test results. All inoperative segments of the display must be made to operate before proceeding with self-diagnostic procedures in this article.
- Partial segment check is possible by depressing TEST button on IPC when vehicle is in PARK or NEUTRAL. Holding button depressed will light all vacuum fluorescent displays and all telltales on IPC in order to check for faulty bulbs or panels.
CAUTION:
Accessing self-diagnostics for 30 minutes or longer without running engine will cause battery to discharge, resulting in a possible no-start condition and faulty diagnostic readings. To ensure proper operation, attach battery charger to battery.
