Code E041: Cam Sensor Circuit
>>
Notes
Code E041: Cam Sensor Circuit: Notes
Quick reference:

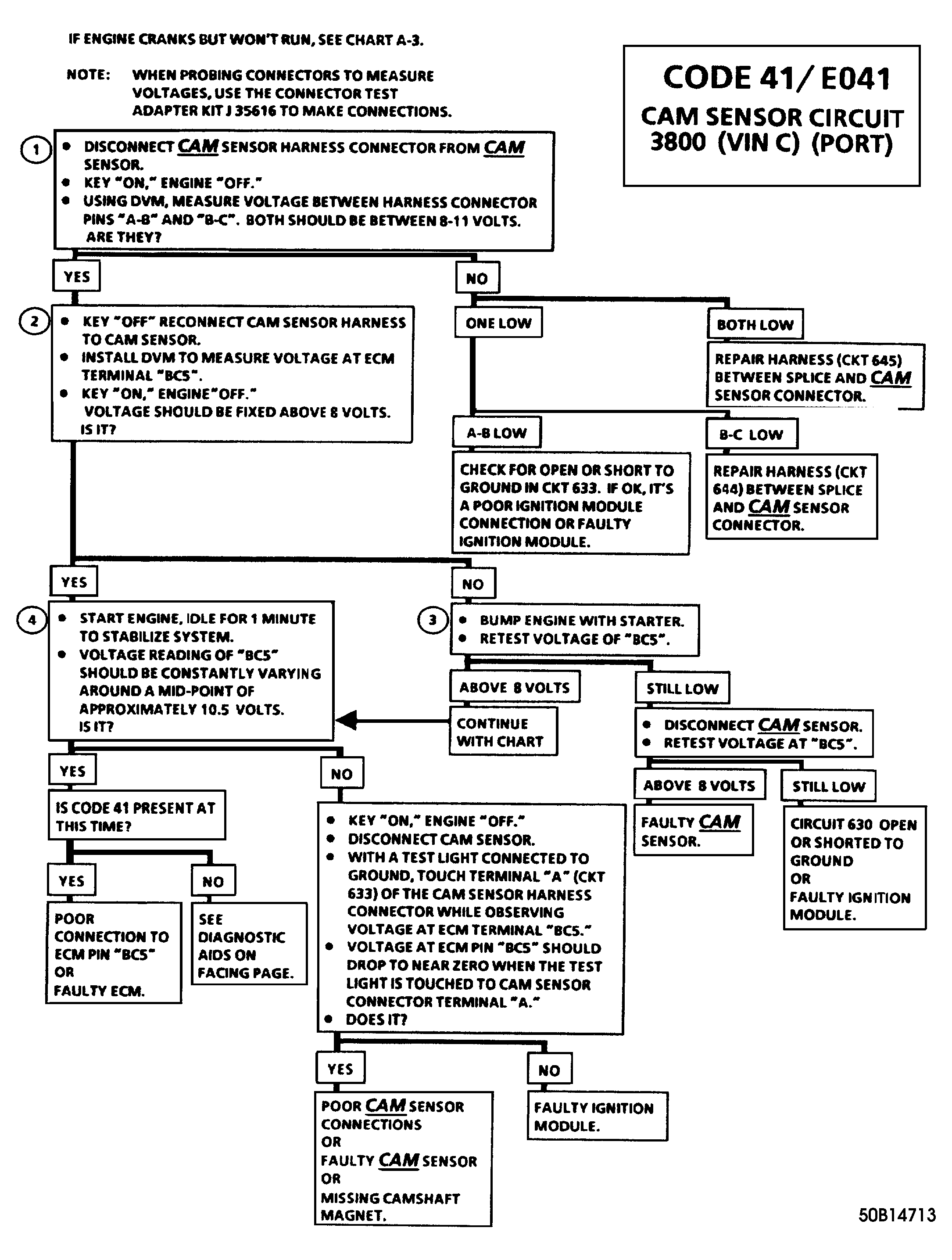

See
Figure
for Code E041 flow chart.

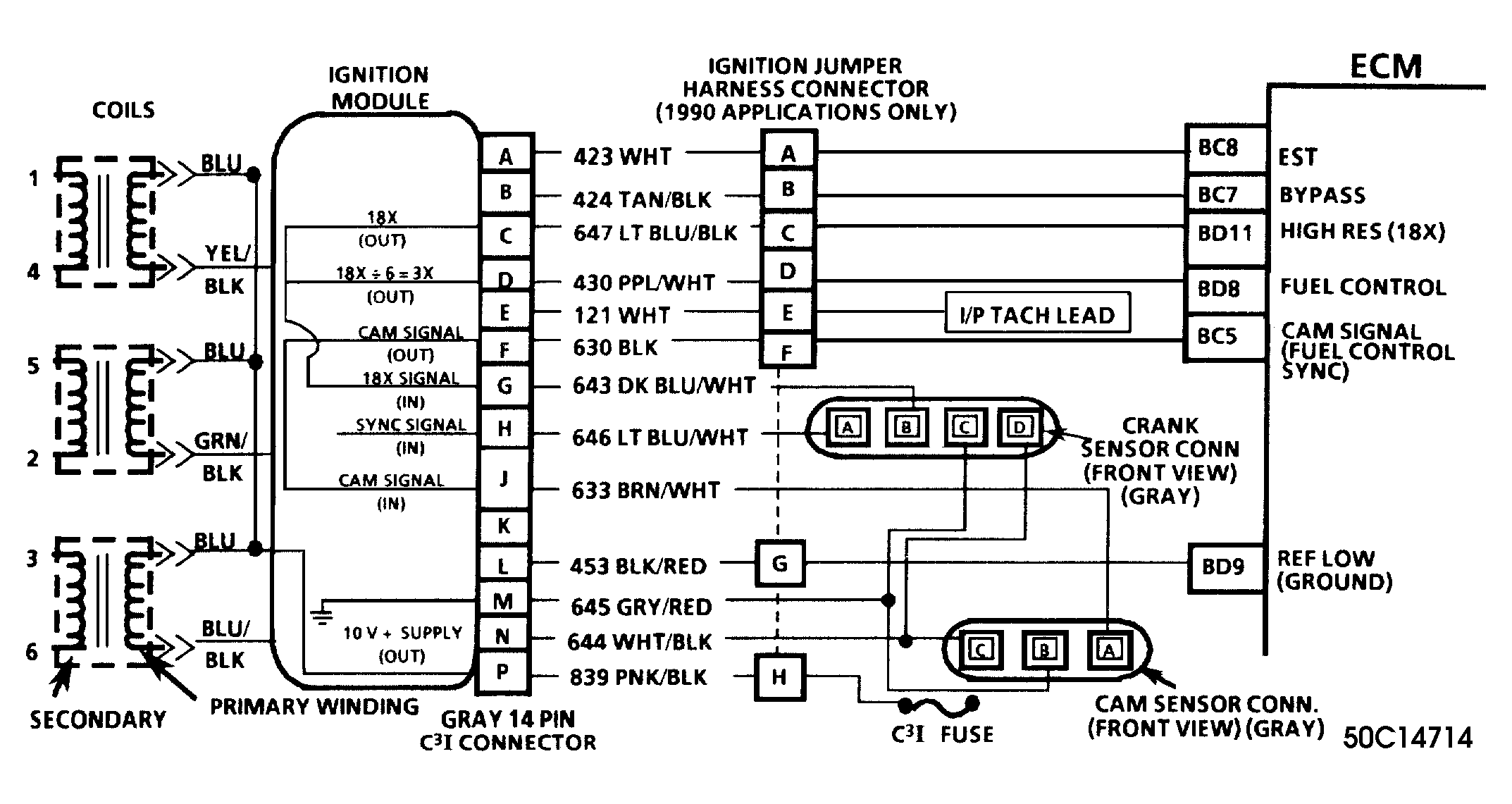

See
Figure
for Code E041 supplemental wiring.
