Note on Intermittents

If an intermittent Code B124 is being set, manipulate related wiring while observing BD60 display. If failure is induced, reading will jump from a normal value to zero MPH.

Fig 1: Code B124: Circuit Diagram

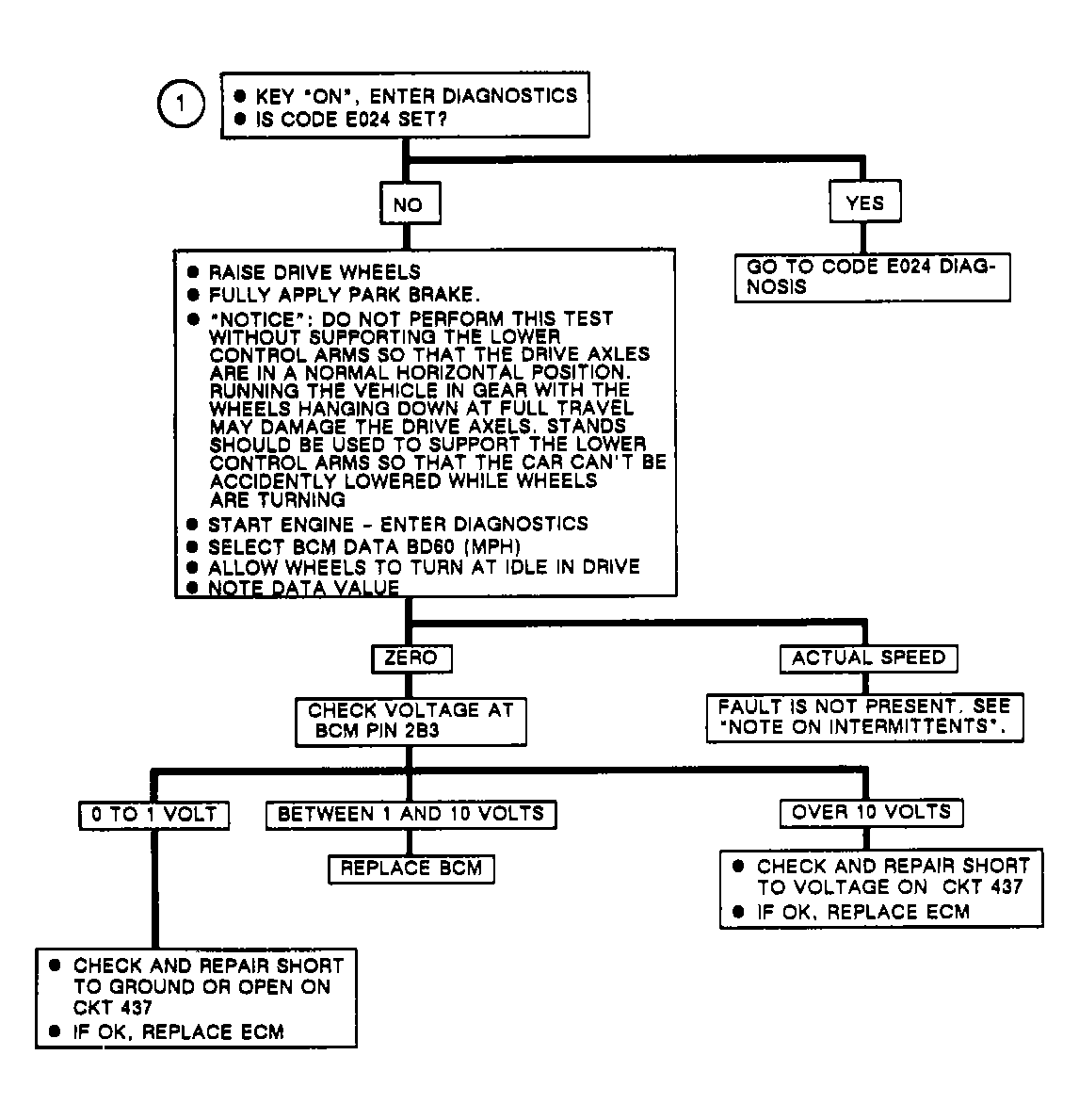

Fig 2: Code B124: Flow Chart VSS Circuit Problem
