Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Under left side of dash, near kick panel. | |
| A/C-Heater & Radio Control Interface Module | Inside steering column, near base. | |
| A/C-Heater Blower Control Module | On right side of firewall, at center of plenum. | |
| Alarm Module | Behind right side of dash, above glove box. | |
| Automatic Door Lock Control Module | Behind far right side of instrument panel, behind convenience center. | |
| Blower Control Module | On right side of engine compartment, in relay bracket. | |
| Cruise Control Module | Behind left side of dash, left of steering column. | |
| C(3)I Ignition Module | ||

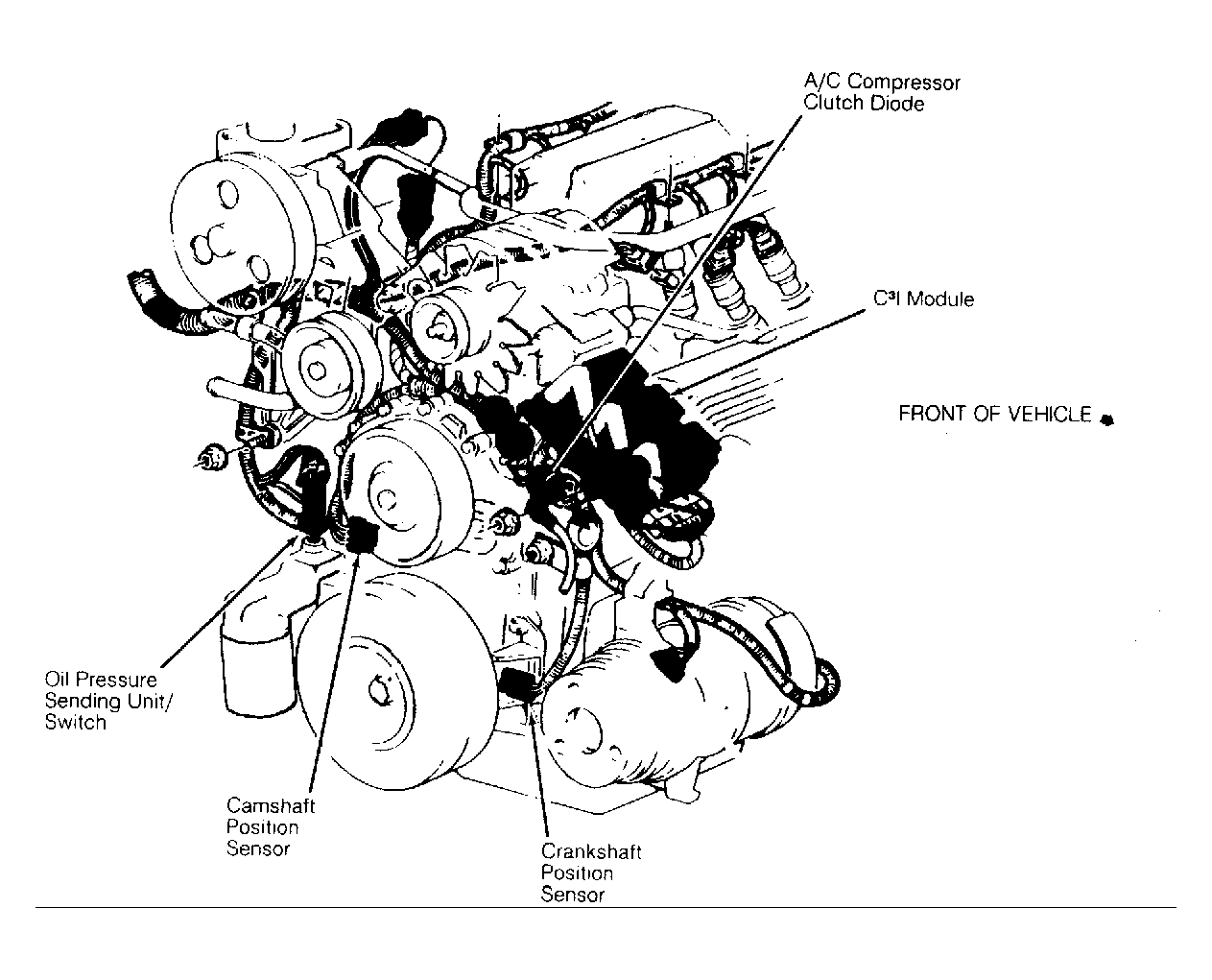

| Bonneville, View of | At left front of engine, on valve cover. See Figure . | |
| Bonneville, Location | At left front of engine, on valve cover. See Figure . | |
| Delta 88 & Ninety-Eight | On top right front of engine. | |
| Diag./Energy Reserve Module (DERM) | Under passenger seat. | |
| Digital Cluster Decoder Module | Under right side of dash, behind digital display unit. | |
| Elect. Climate Control Power Module | On right side of firewall, above blower motor. | |
| Elect. Climate Control Programmer | Under right side of dash, near left side of glove box. | |
| Electronic Compass Module | Below rear deck shelf. | |
| Electronic Control Module (ECM) | Behind right side of dash. See Figure . | |
| Headlight Washer Timer Module | Behind right side of dash, left of relay center. | |
| Keyless Entry Module | Behind right side of dash, above glove box. | |
| Lights Monitor Module | Behind right side of dash, near shroud. | |
| Multi-Function Chime Module | Behind right side of dash, above glove box. | |
| Power Seat Module | Under center console. | |
| Power Window (Express Down) Module | In lower front of left front door. | |
| PRNDL Decoder Module | Behind right side of dash, behind glove box. | |
| Remote Dimmer Module | Behind left side of dash, at shroud. | |
| SIR Energy Reserve Module | Under passenger seat. | |
| SIR Driver's Inflator Module | In steering wheel hub. | |
| SIR Passenger Compartment Sensor/Diagnostic Module | Under passenger seat. | |
| Steering Wheel Pad Switch & Electronics Module | In steering wheel. | |
| Sun Roof Control Module | At left roof rail, above front door. | |
| Theft Deterrent Controller | Under left side of dash, above accelerator pedal. | |
| Twilight Sentinel/Daytime Running Lights Module | ||
| Bonneville & LeSabre | Behind center of dash, to right of steering column. | |
| Delta 88 & Ninety-Eight | Behind right of dash, above glove box. | |

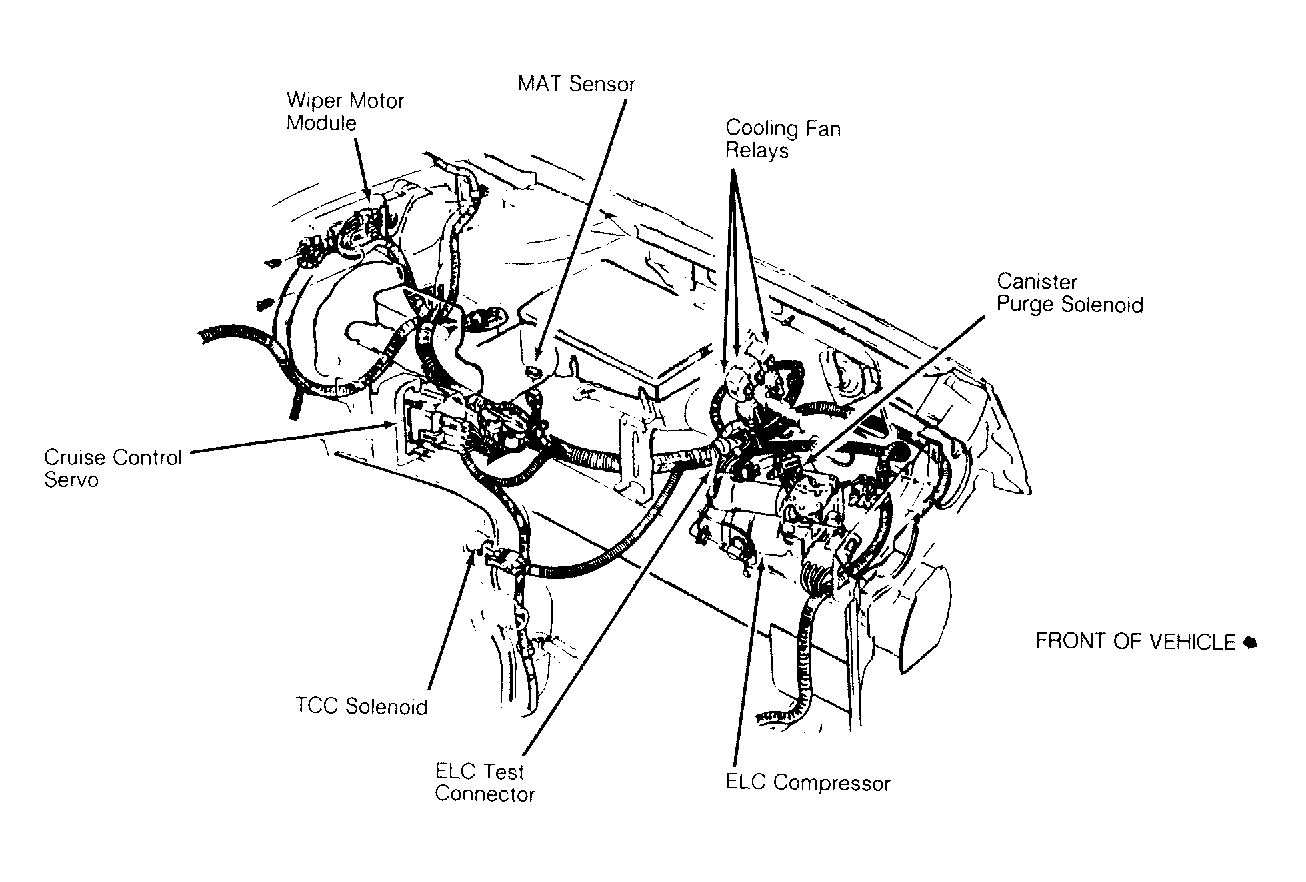

| Wiper Motor Module | On left rear of engine compartment, behind strut tower. See Figure . | |
