Serial Data Circuit Multiple Intermittent Data Codes (TORONADO)

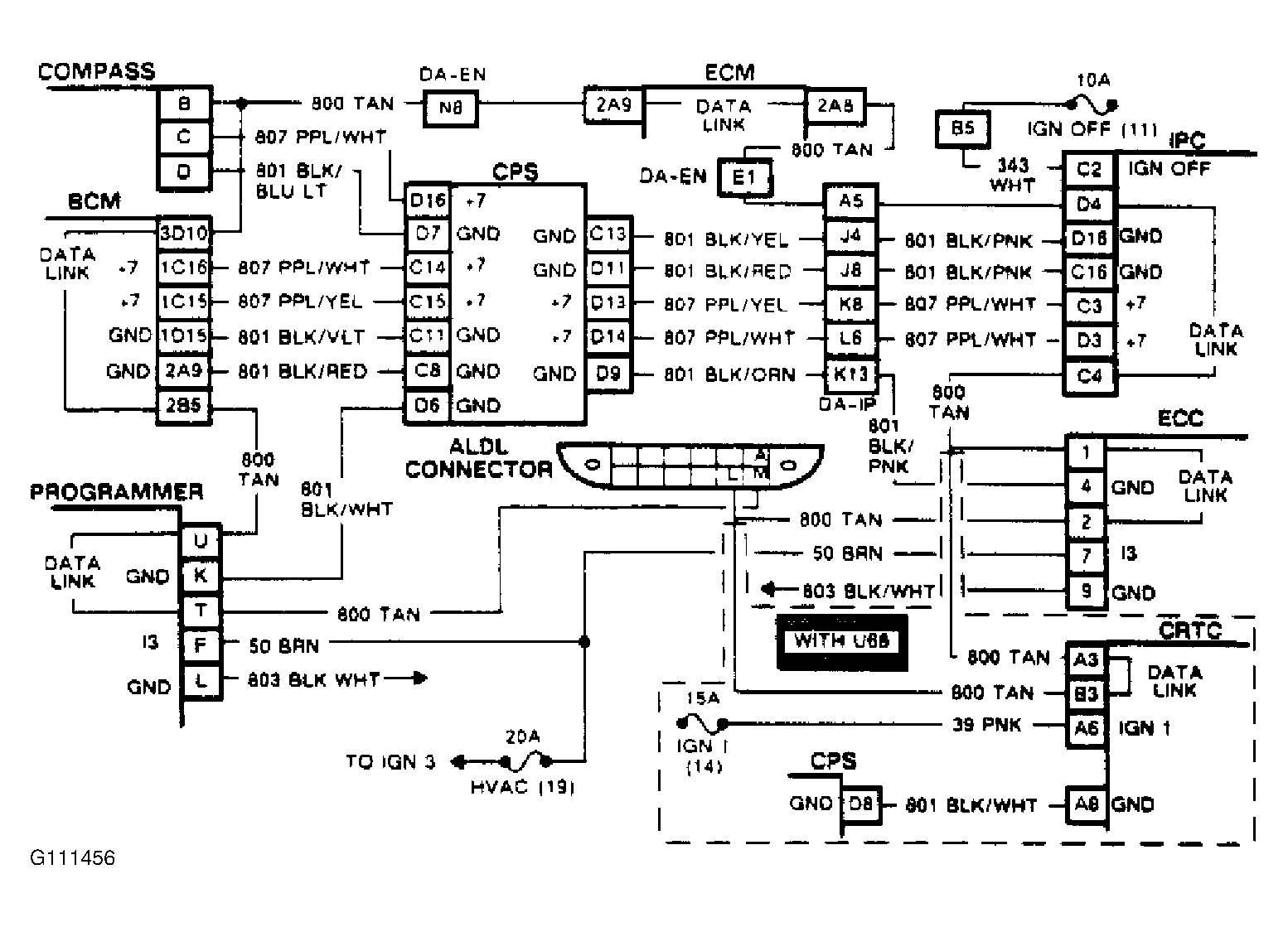

Fig 1: Serial Data Circuit Multiple Intermittent Data Codes (Toronado)
G111456

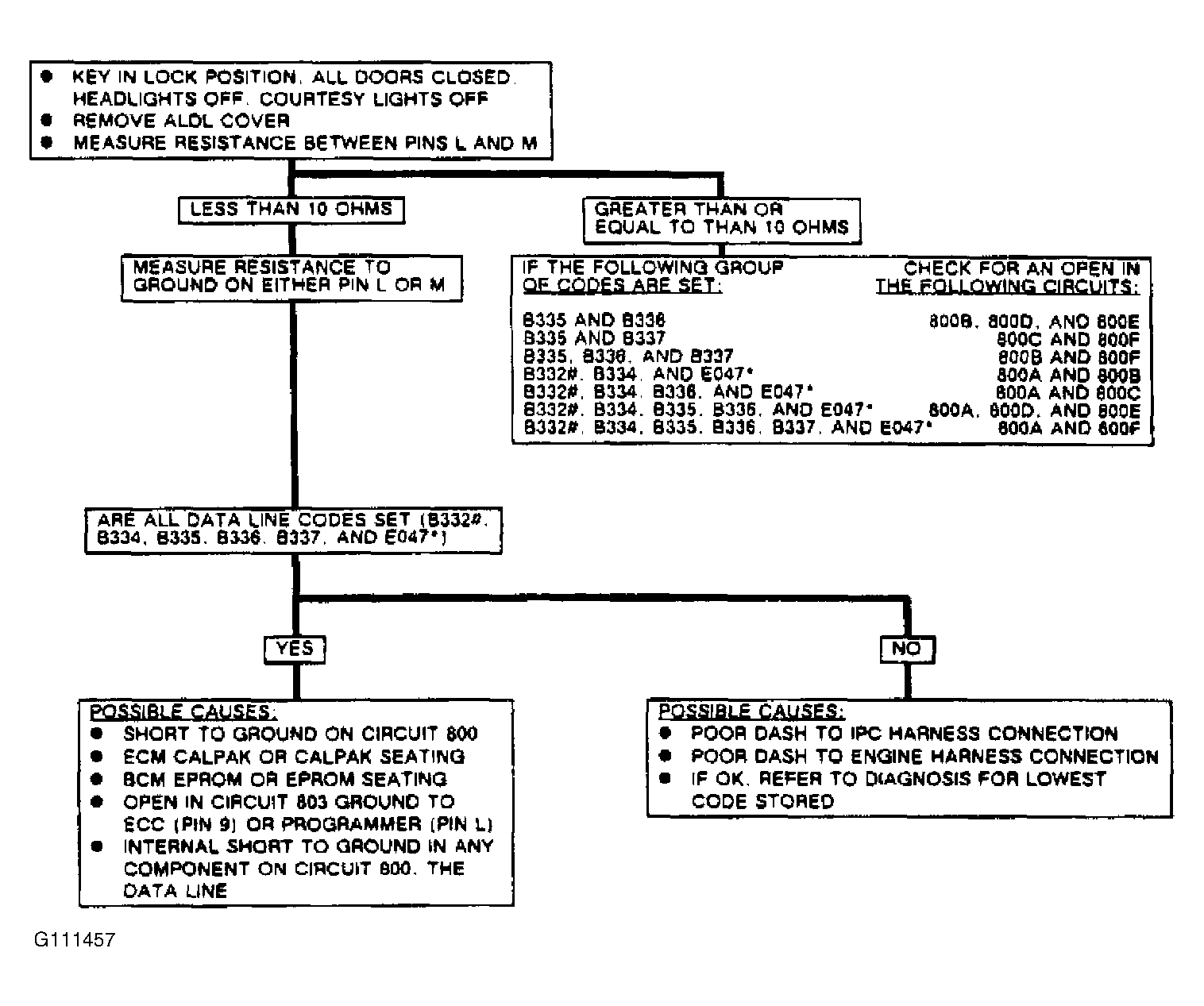

Fig 2: Serial Data Flow Chart Circuit Multiple Intermittent Data Codes (Toronado)
G111457
