Toronado (CRT)

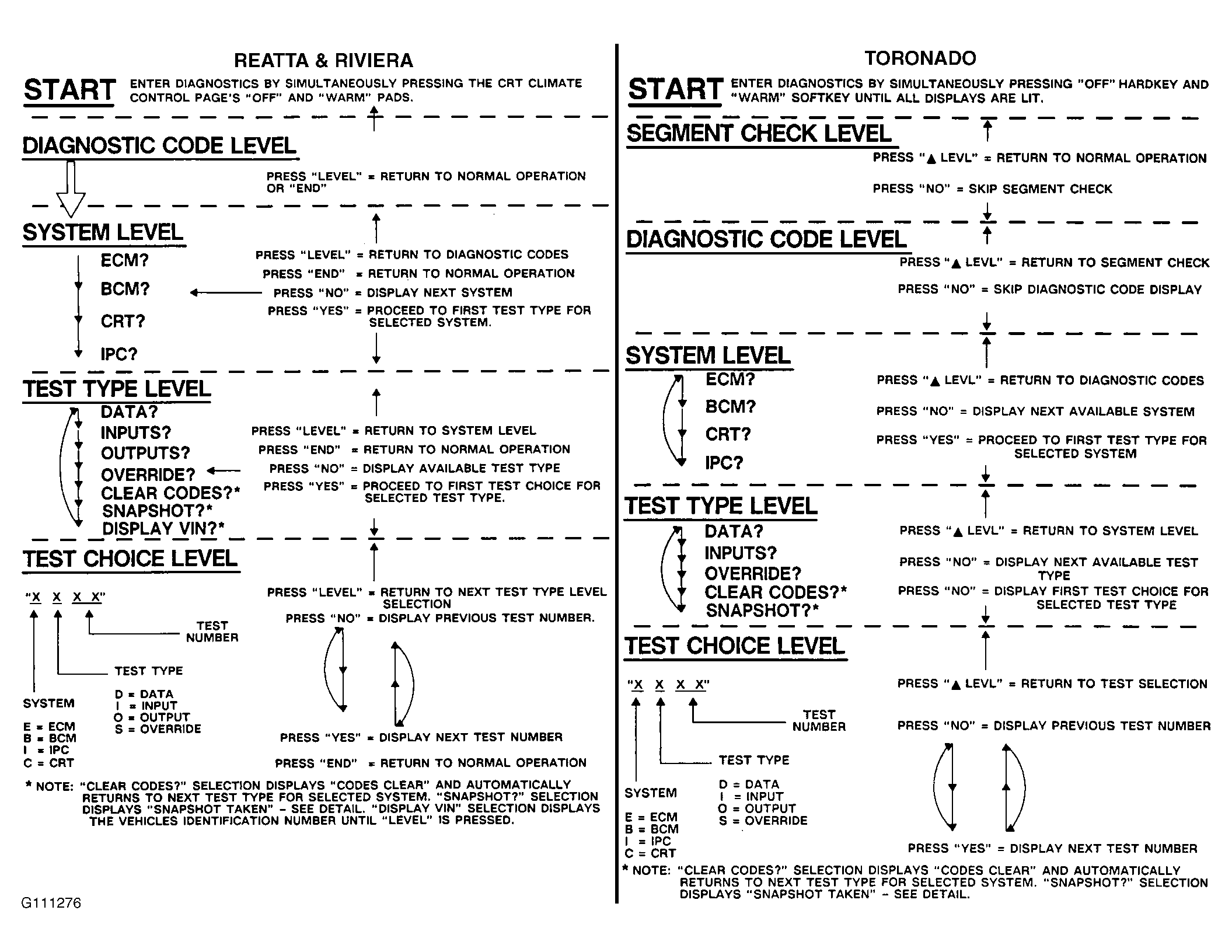

Upon selecting an "OVERRIDE" test function, current operation will be represented as a percentage of its full range and will be displayed on secondary panel. Display will alternate between "----" and normal program value. This alternating display is a reminder that function is not currently being overridden.
Pressing the "SLEW L" and "SLEW O" key pad on secondary display panel starts override, at which time the display will no longer alternate to "----". Pressing "SLEW L" key pad increases value, while "SLEW O" key pad decreases value. Normal program control can be resumed in one of 3 ways:
- Selection of another override will cancel current override.
- Selection of another system (ECM, BCM or IPC) will cancel current override.
- Overriding value beyond either extreme (0-99) will display "----" momentarily and then jump to extreme opposite. If key pad is released while "----" is displayed, normal program control will resume and display will again alternate.
