Home >> Buick >> 1989 >> Reatta >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Testing >> Isolation Test >> Conditions:

Isolation Test: Conditions:

Do the tests in the order shown
Ignition Switch: Run
Test w/quick checker (J-34185 or equivalent) or Digital Meter

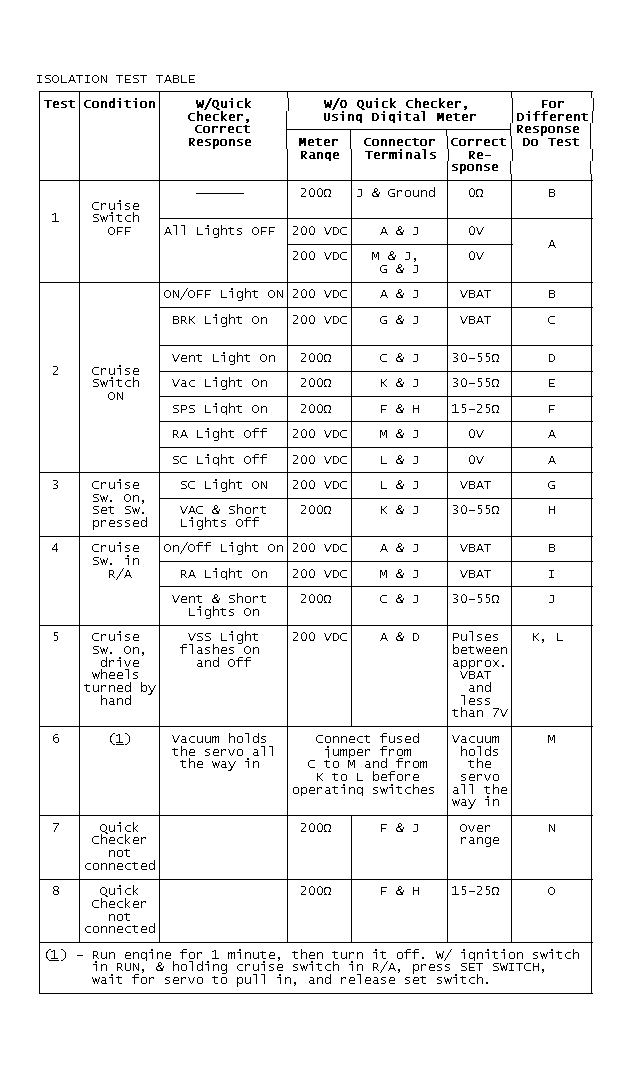

Fig 1: Isolation Test Table

GB0020646
