Diagnostic Aids

Any electrical condition that interrupts normal operation of pump/motor relay or pump/motor power circuits can cause an inoperative pump/motor, including a short to ground on circuit No. 864. A failed pressure switch that is not providing a path to ground will also cause an inoperative pump/motor.

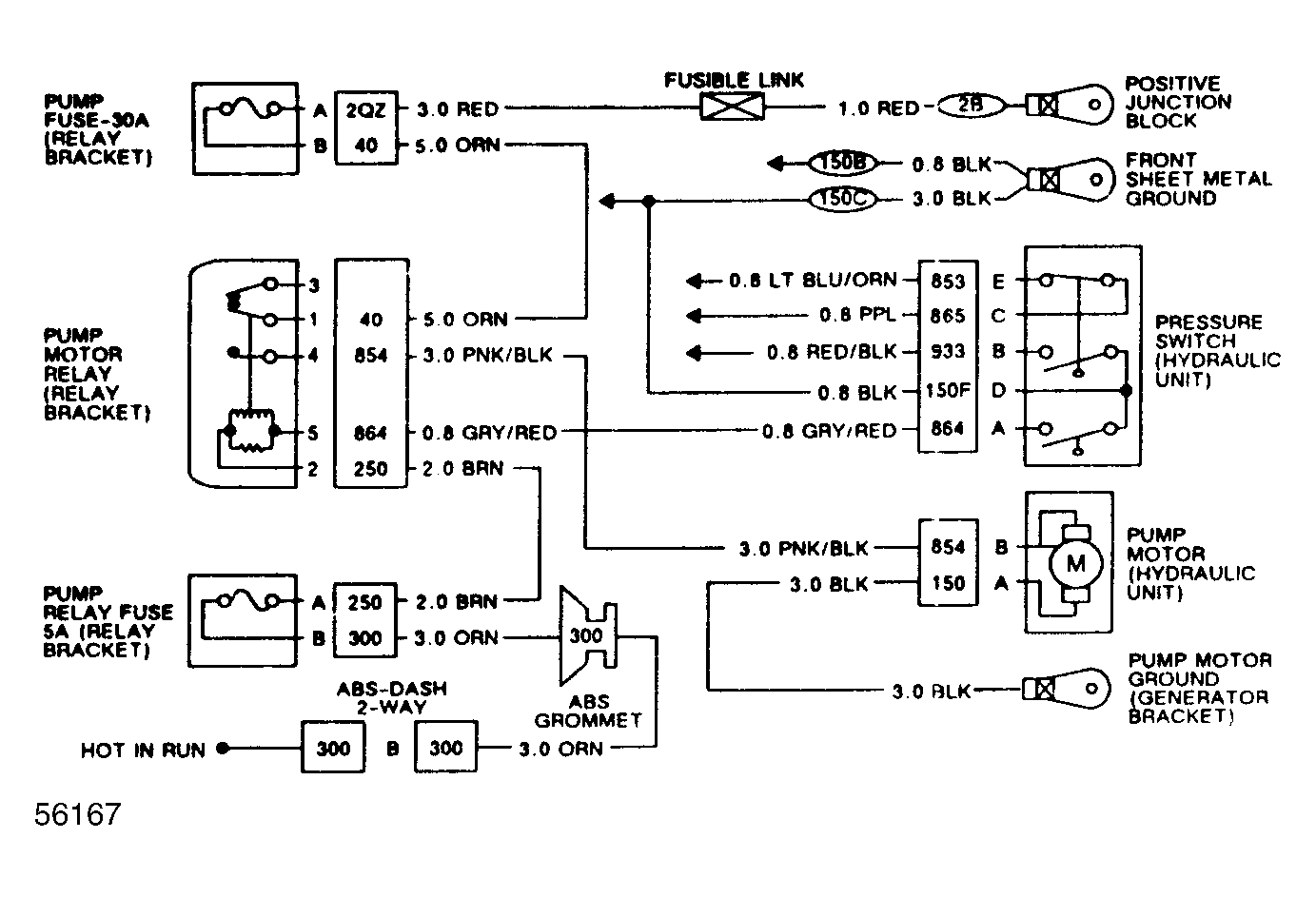

Fig 1: Pump/Motor Does Not Operate Schematic

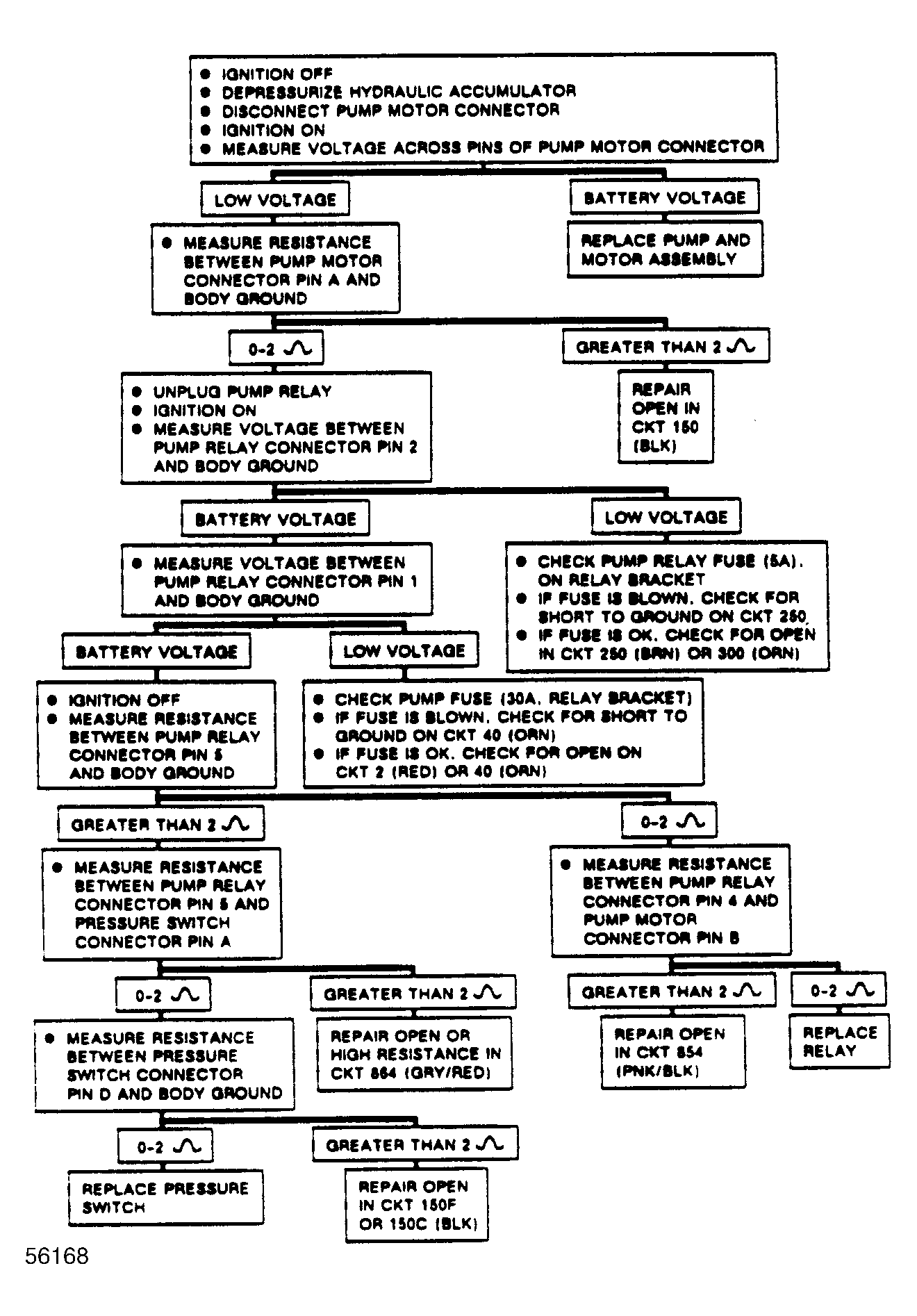

Fig 2: Flow Chart D1, Pump/Motor Does Not Operate

Fig 3: Flow Chart D1, Pump/Motor Does Not Operate (1 of 2)

Fig 4: Flow Chart D1, Pump/Motor Does Not Operate (2 of 2)
