Diagnostic Aids

An actual low brake pressure condition would cause both the BRAKE and ANTI-LOCK lights to turn on. This flow chart addresses a condition where ONLY the BRAKE light is on. Most likely cause would be a short to ground on circuit No. 33 or a shorted fluid level sensor switch.

Fig 1: Low Brake Fluid Input Schematic

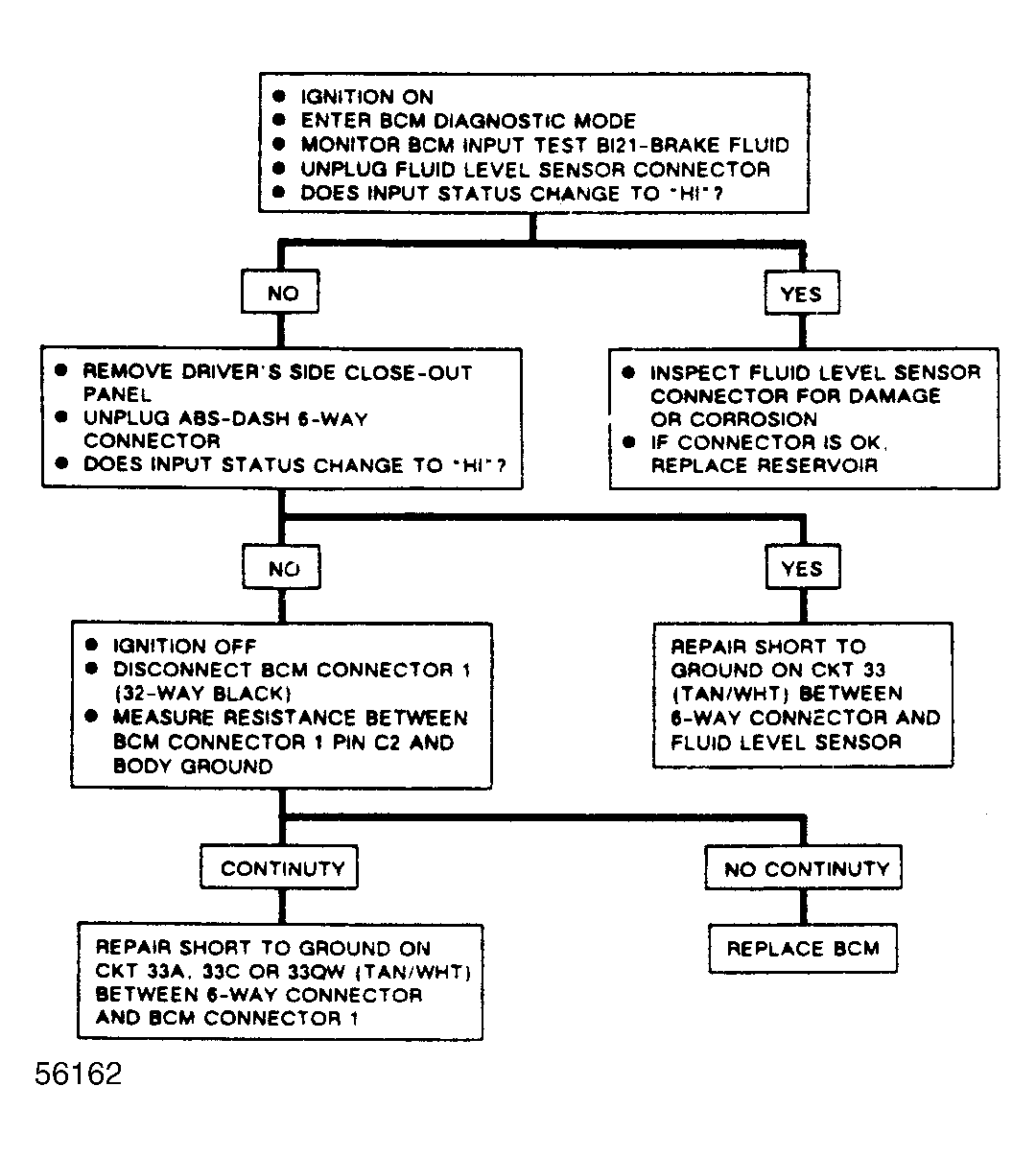

Fig 2: Flow Chart C2, Low Brake Fluid Input

Fig 3: Flow Chart C2, Low Brake Fluid Input
