Chart B "Anti-Lock" Light On & No Codes Set

Use this chart as indicated by FUNCTIONAL CHECK chart. Areas this chart will check are: EBCM power source, EBCM grounds and low fluid/pressure loop.

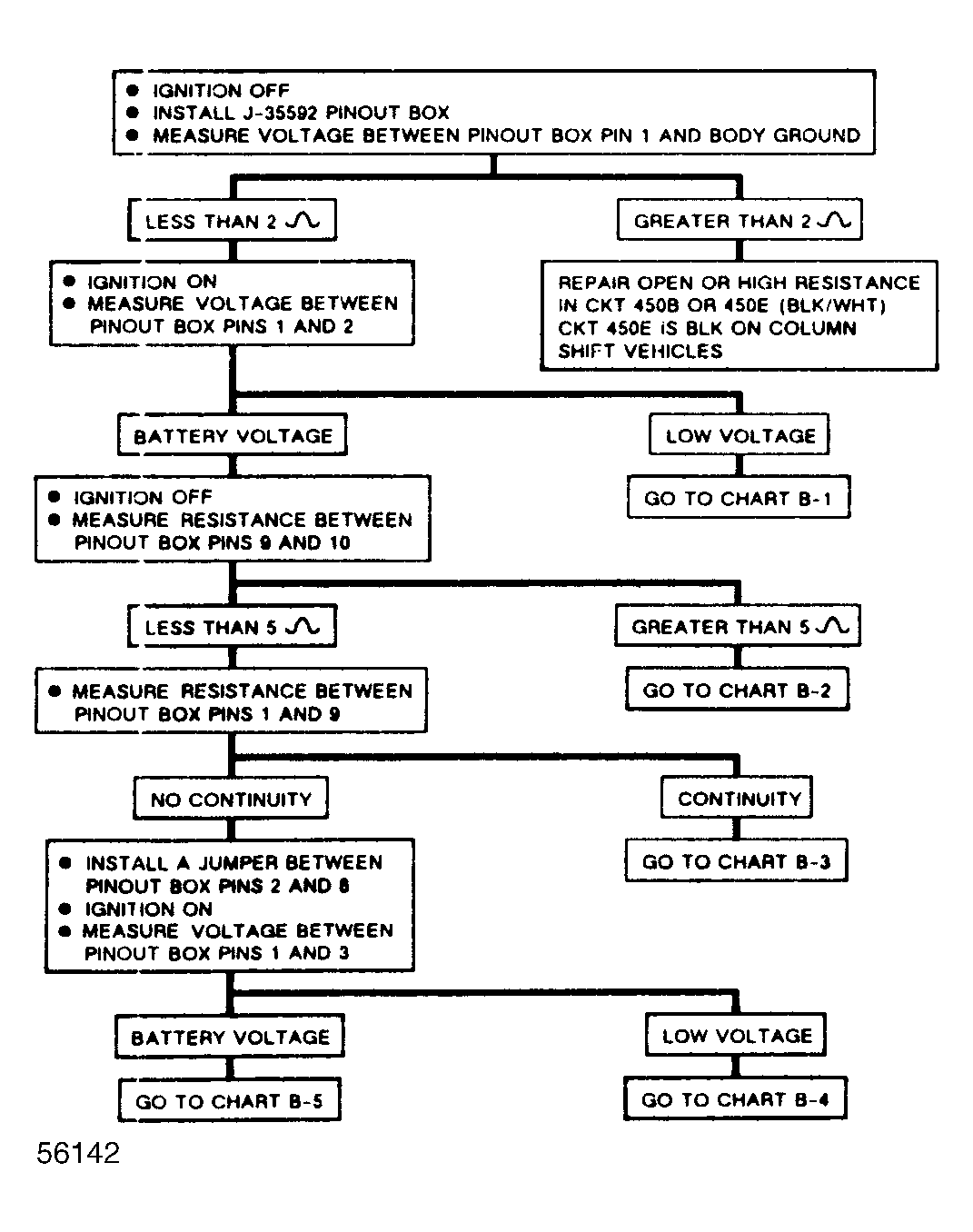

Fig 1: Flow Chart B "Anti-Lock" Light On & No Codes Set

Fig 2: Flow Chart B "Anti-Lock" Light On & No Codes Set
