MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

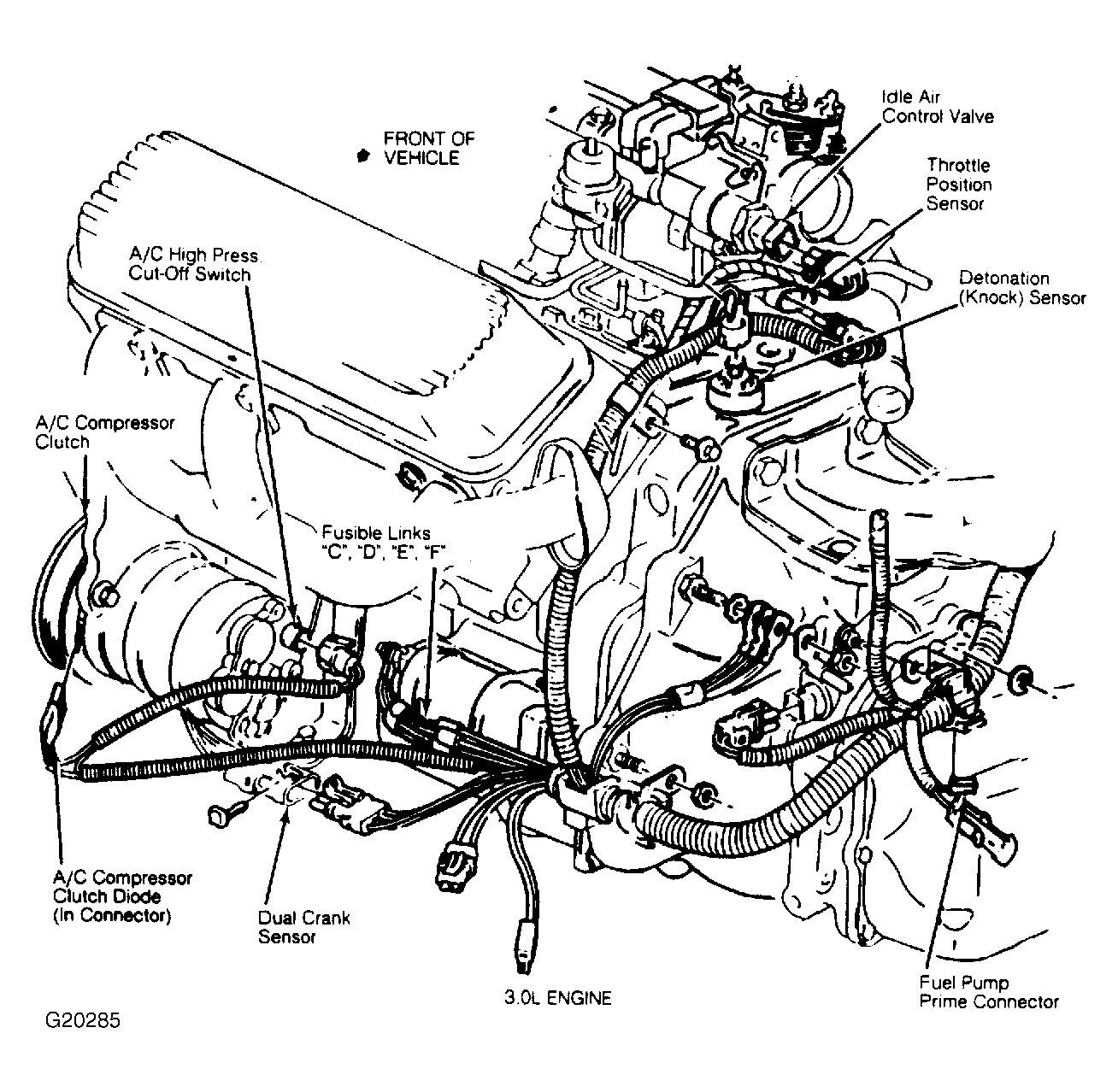

| A/C Compressor Clutch Diode | In connector at compressor clutch. See Figure & 2. | |
| A/C-Heater Blower Resistors | At right side of firewall (in engine comp.), on blower assembly. | |
| ALDL Connector | On bottom of dash, to right of steering column. See Figure. | |
| Cooling Fan Resistor (3.0L) | On lower bracket behind cooling fan. | |
| Convenience Center | Under left side of dash, above fuse block. | |
| Fuel Pump Prime Connector | ||
| 2.5L | At left front of engine compartment, behind battery. See Figure. | |
| 3.0L | At lower left front of engine, above transaxle. See Figure. | |

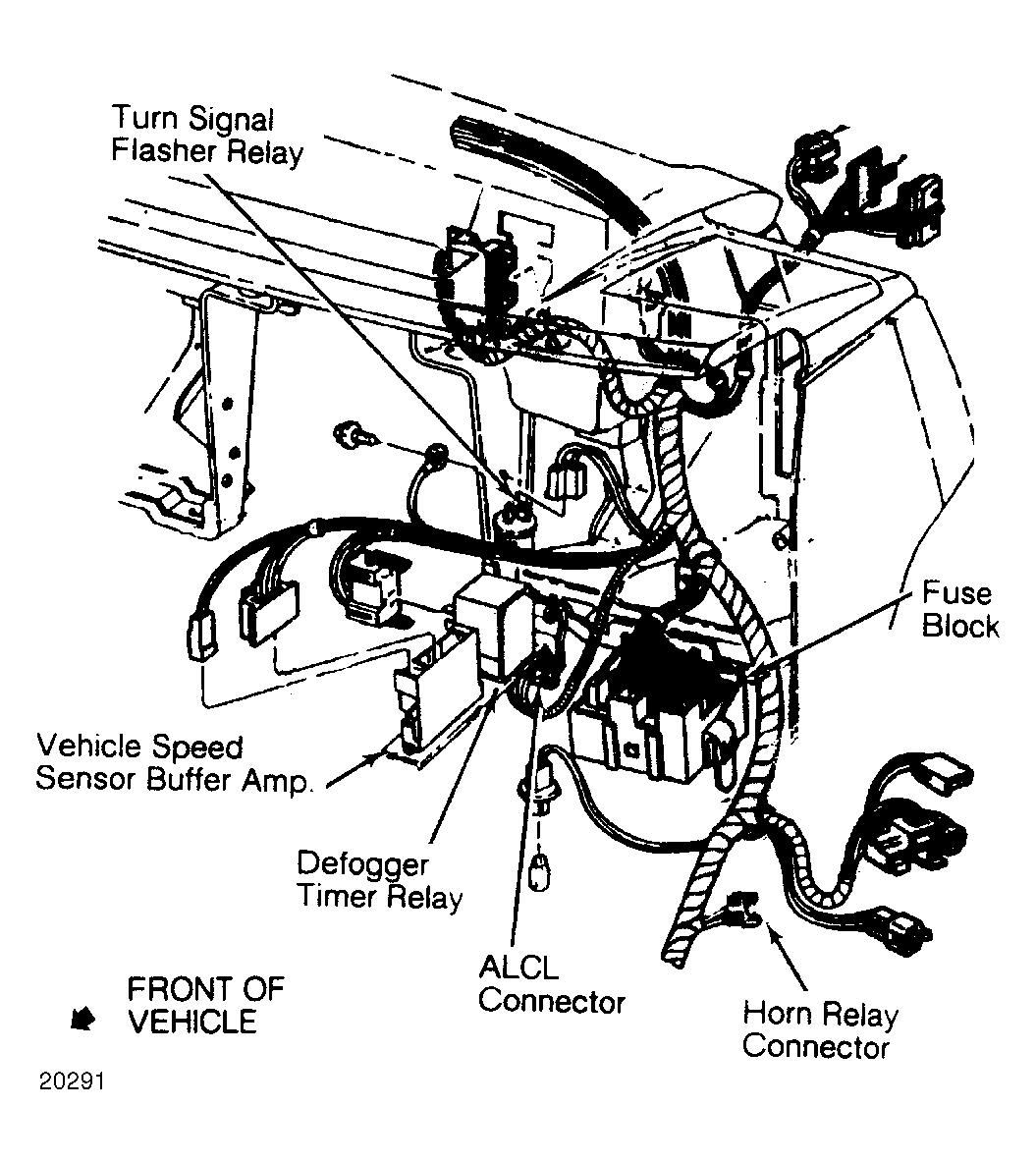

| Fuse Block | Under left side of dash. See Figure. | |
| Fusible Links | ||
| A (Gray) ECM | Behind battery. | |
| B (Gray) Fog Lights | Behind battery. | |

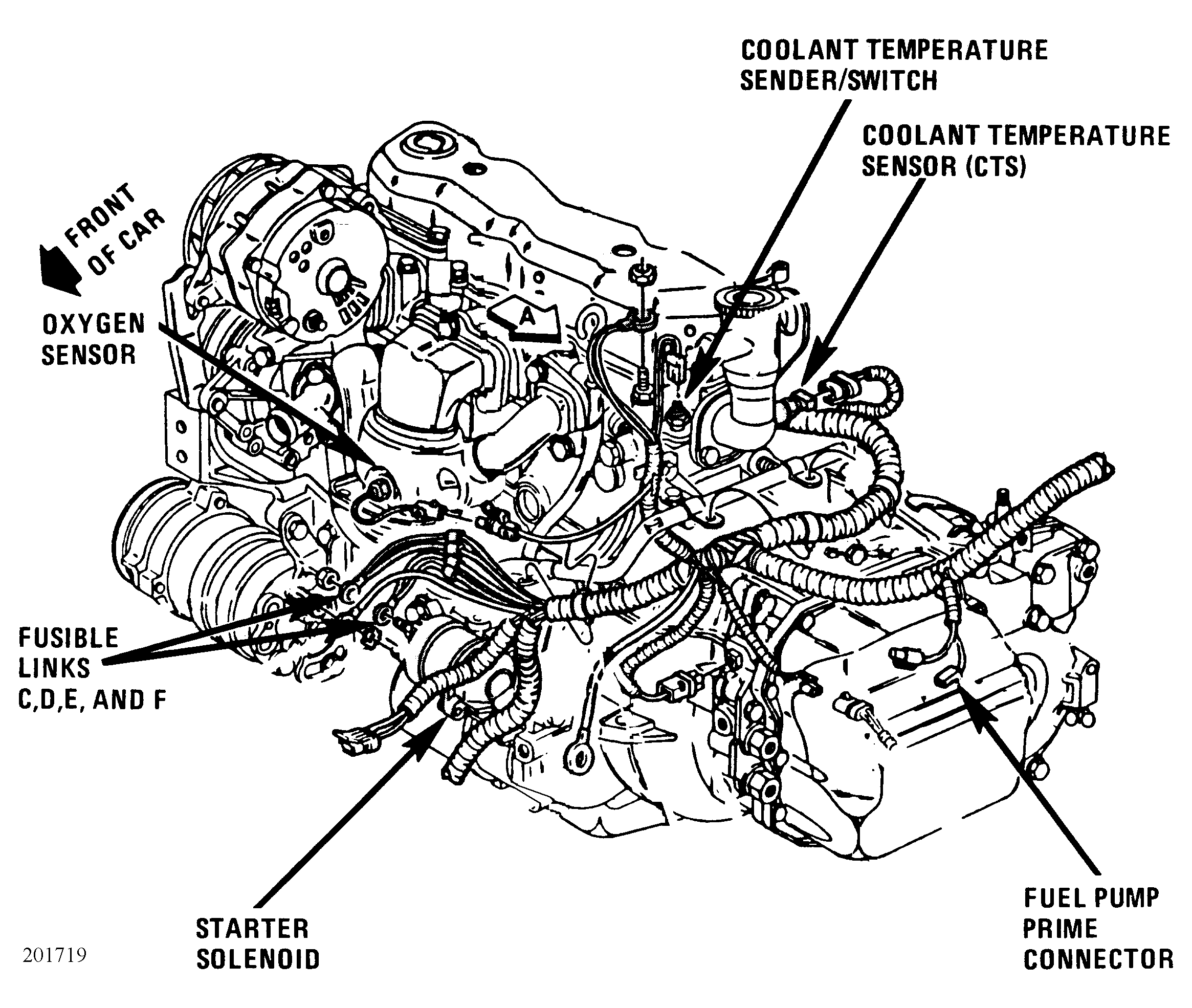

| C (Black) (Rust on 3.0L) Charging System | At starter solenoid. See Figure & 4. | |
| D (Black) (Rust on 3.0L) Light Switch | At starter solenoid. See Figure & 4. | |
| E (Grey) (Blue on 3.0L) Charging System | At starter solenoid. See Figure & 4. | |
| F (Black) (Blue on 3.0L) Fan Relay | At starter solenoid. See Figure & 4. | |
| Power Accessory Circuit Breaker (Defogger, Door Locks, Seats) | Above "STOP HAZ" fuse of fuse block. | |
| Power Window Circuit Breaker | Above power accessory circuit breaker on fuse block. | |
| Vehicle Speed Sensor Buffer Amp. | Behind left side of dash. See Figure. | |
