Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Alarm Module | On fuse block, or above glove box. |
| Automatic Door Lock Controller | Behind right kick panel, at top. |
| Cruise Control Module (Except VIN U) | Under left side of dash, attached to rear of dash. |
| Dimmer Module (Calais) | Below left side of dash. |
| Driver Info. Center Display Module | In center of dash, below radio. See Figure. |
| Driver Info. Ctr. Lights Monitor Mod. | Below center of dash, in front of console. |
| Electronic Control Module (ECM) | Behind glove box. |

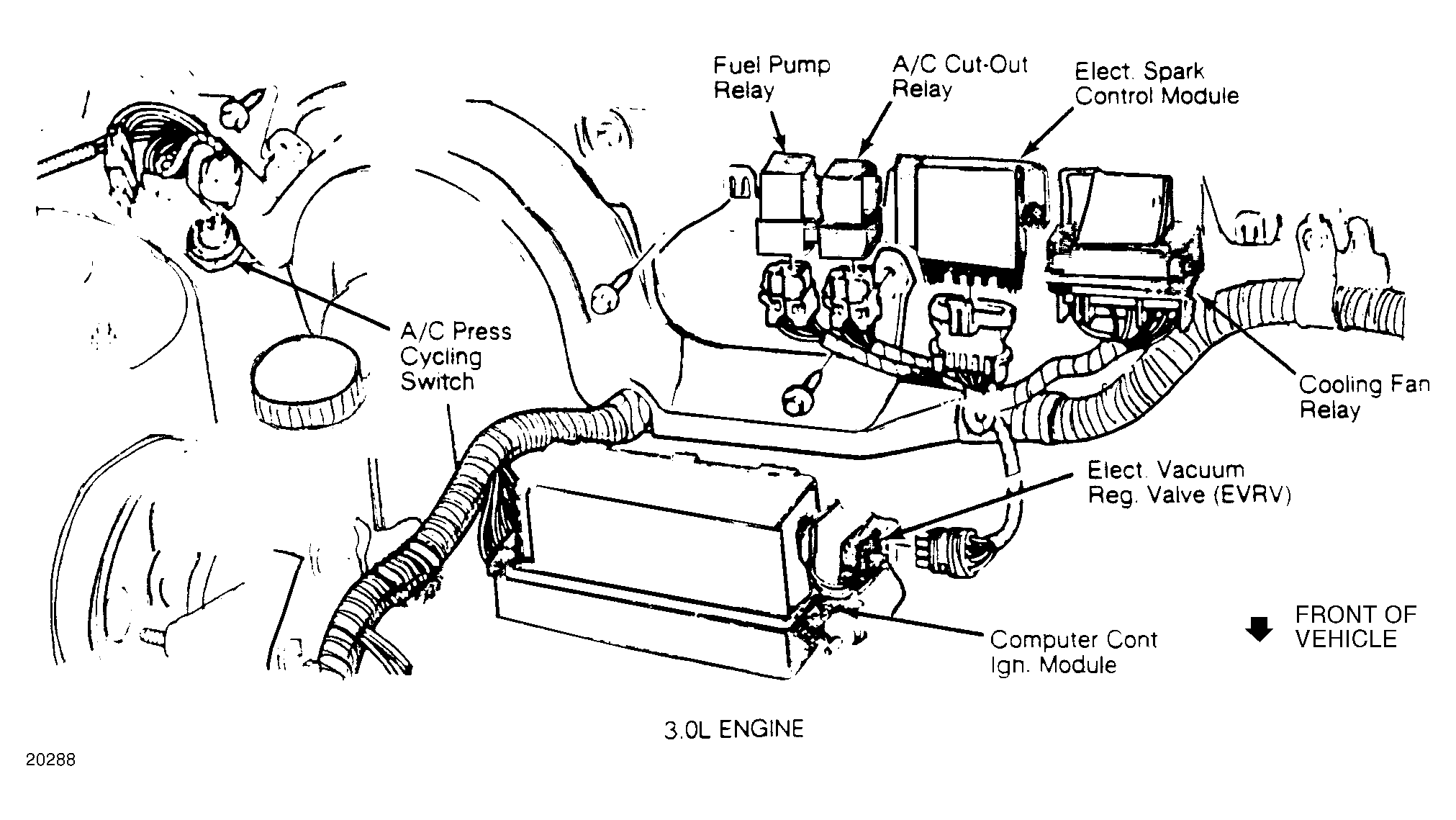

| Elect. Spark Control Module (3.0L) | On relay bracket at center of firewall in engine compartment. See Figure. |
| Remote Dimmer Module | In instrument panel wiring harness, to right of radio. |
| Seat Belt Indicator Driver Module | Behind left side of dash. |

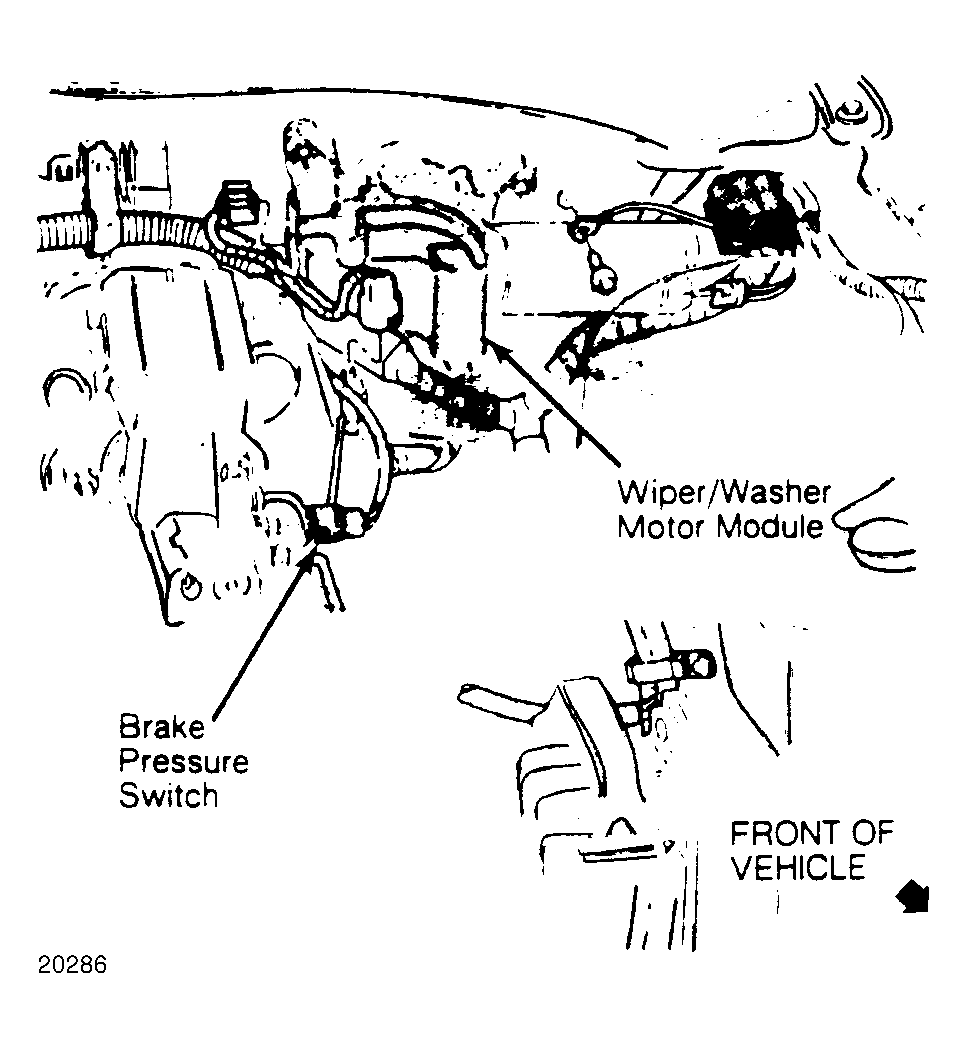

| Wiper/Washer Motor Module | At left rear corner of engine compartment. See Figure. |
