Service Indicator & Warning Lights: Notes

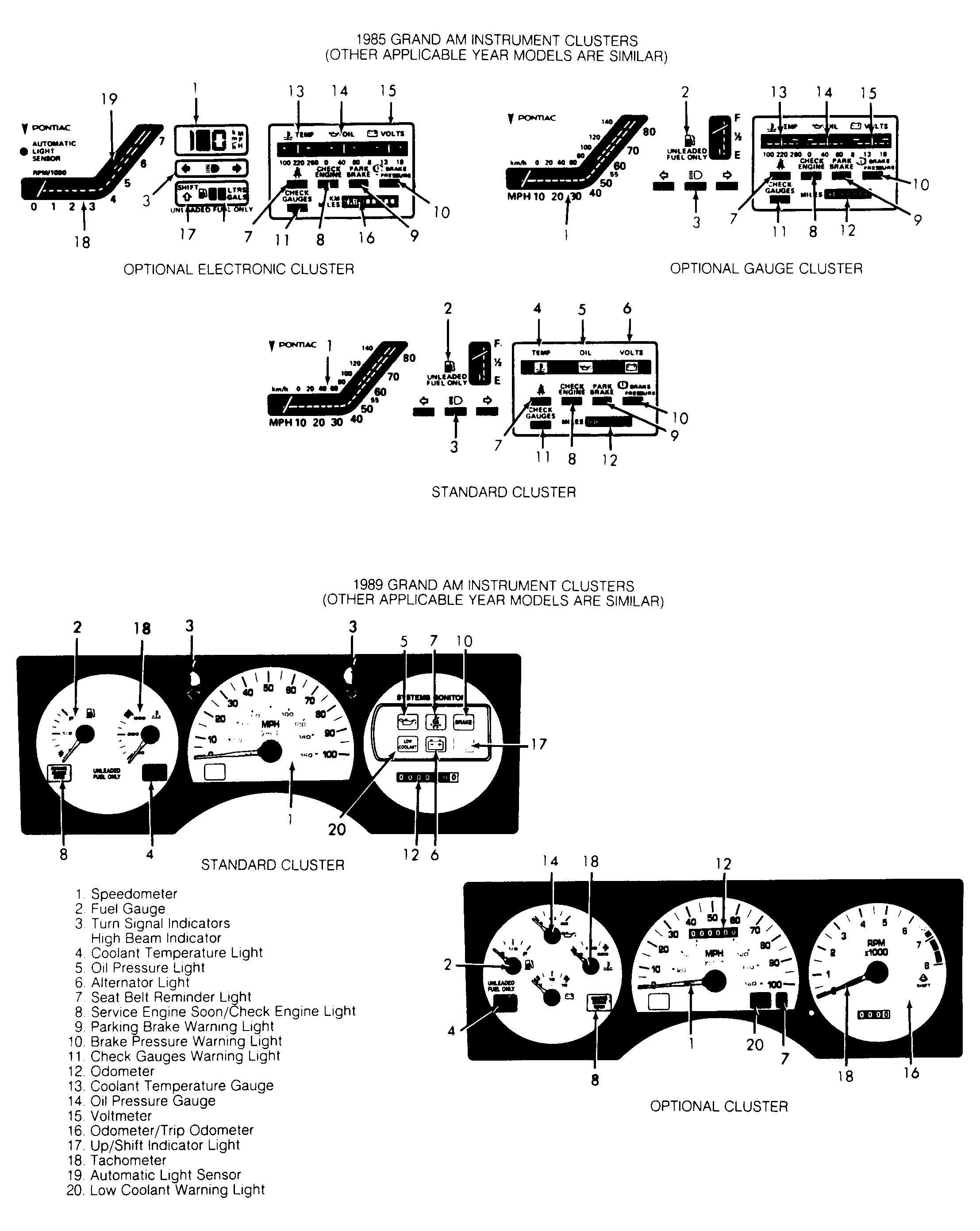

Fig 1: Instrument Panel (Typical Grand Am)
G90A06827Courtesy of GENERAL MOTORS CORP.

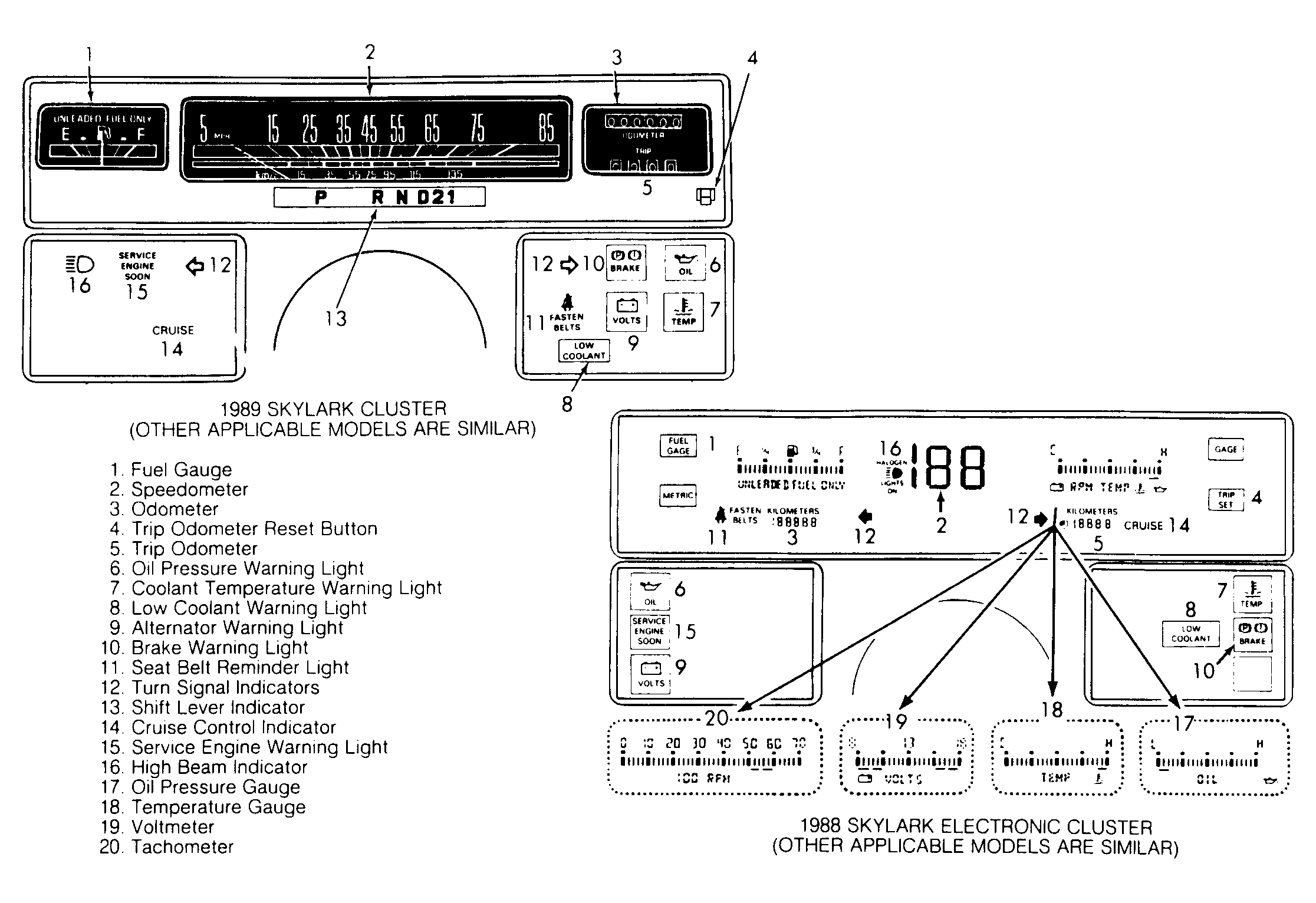

Fig 2: Instrument Panel (Typical Skylark & Somerset)
G90C06828Courtesy of GENERAL MOTORS CORP.

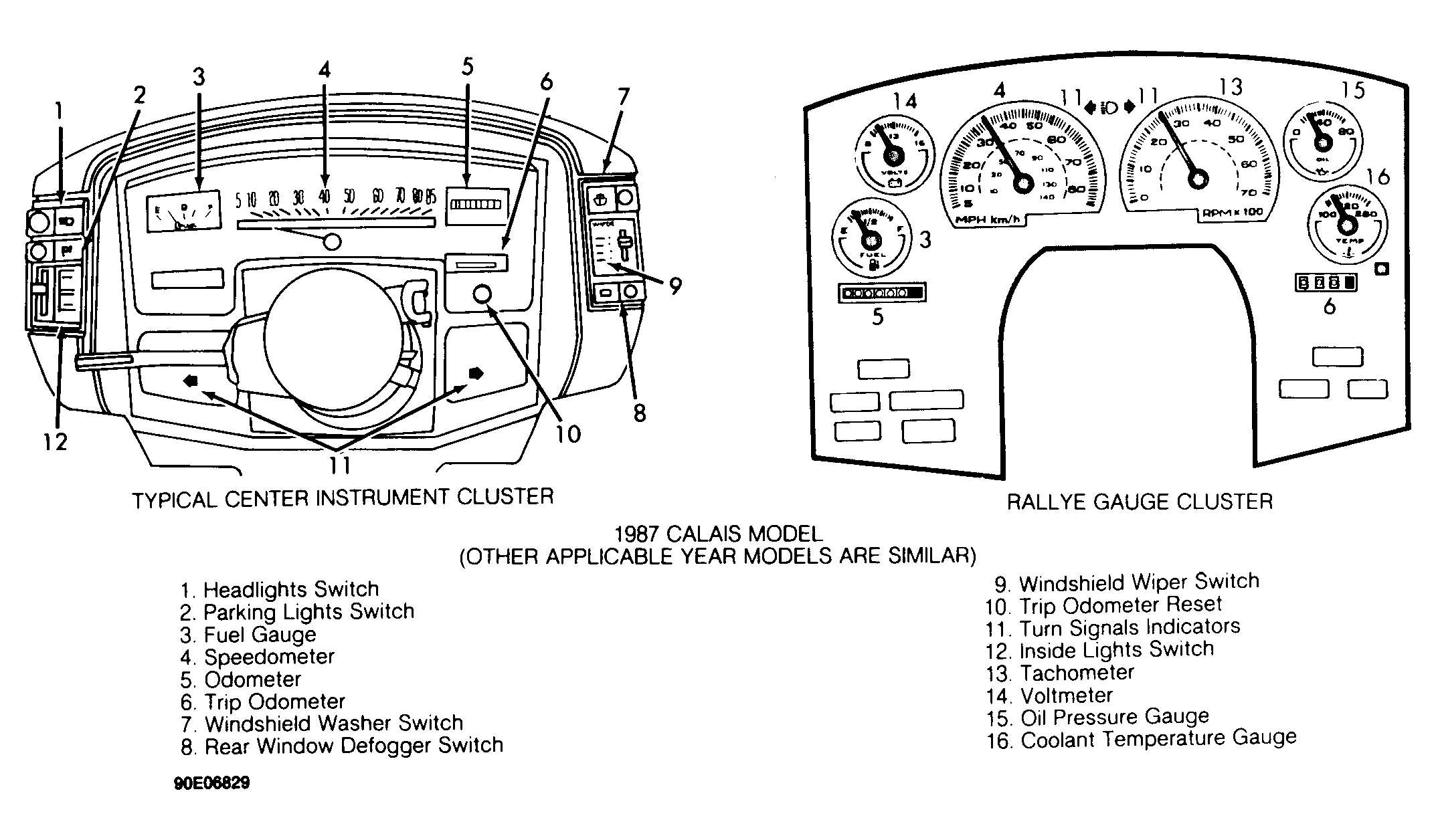

Fig 3: Instrument Panel (Typical Cutlass Calais)
G90E06829Courtesy of GENERAL MOTORS CORP.

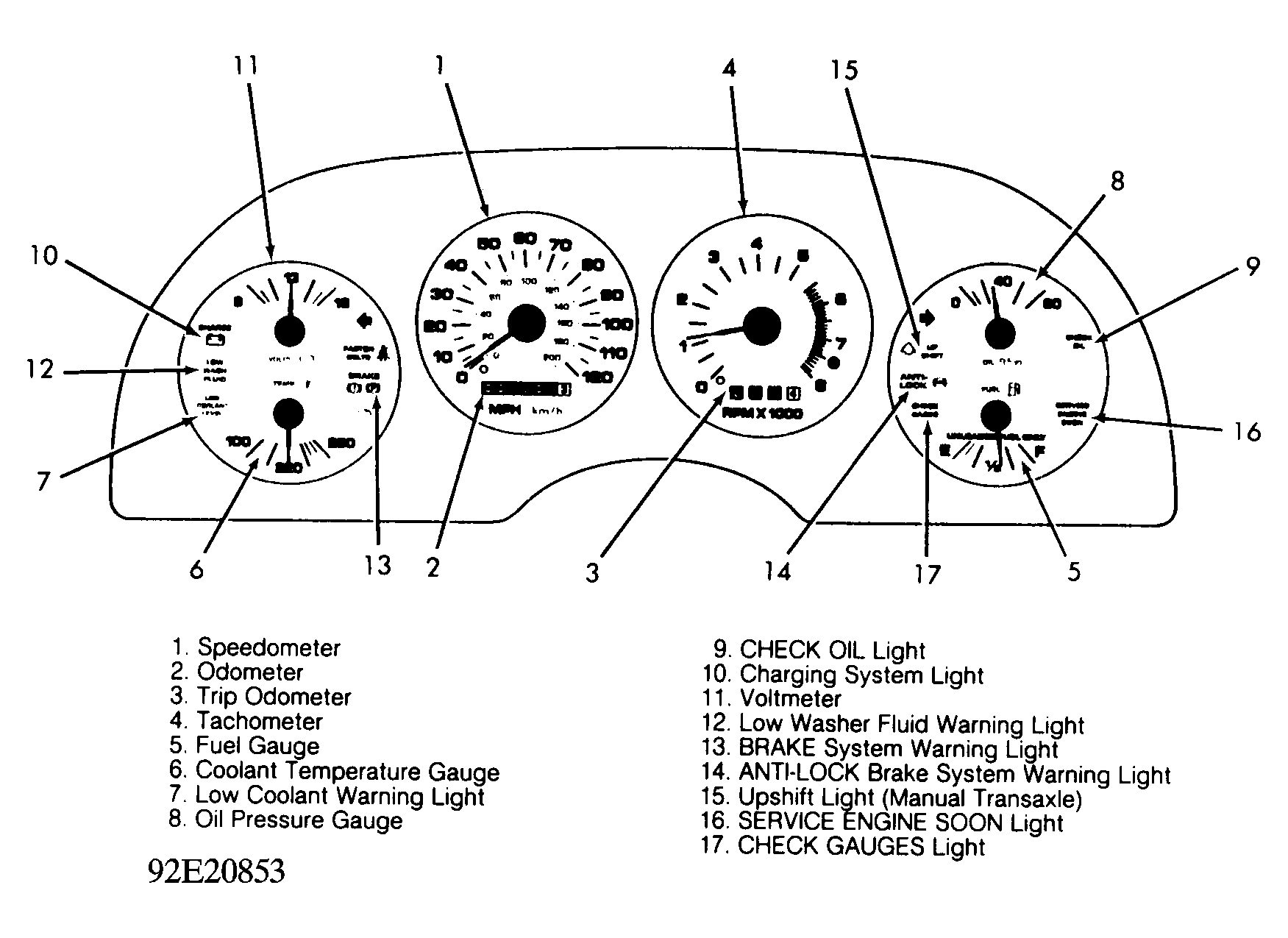

Fig 4: Instrument Panel (1992 Achieva)
G92E20853Courtesy of GENERAL MOTORS CORP.
