Home >> Buick >> 1987 >> Regal Base, 3.8 A >> Repair and Diagnosis >> Engine Performance >> System >> 3.8L Feedback Carburetor Tests W/Codes >> Component Locations

Component Locations

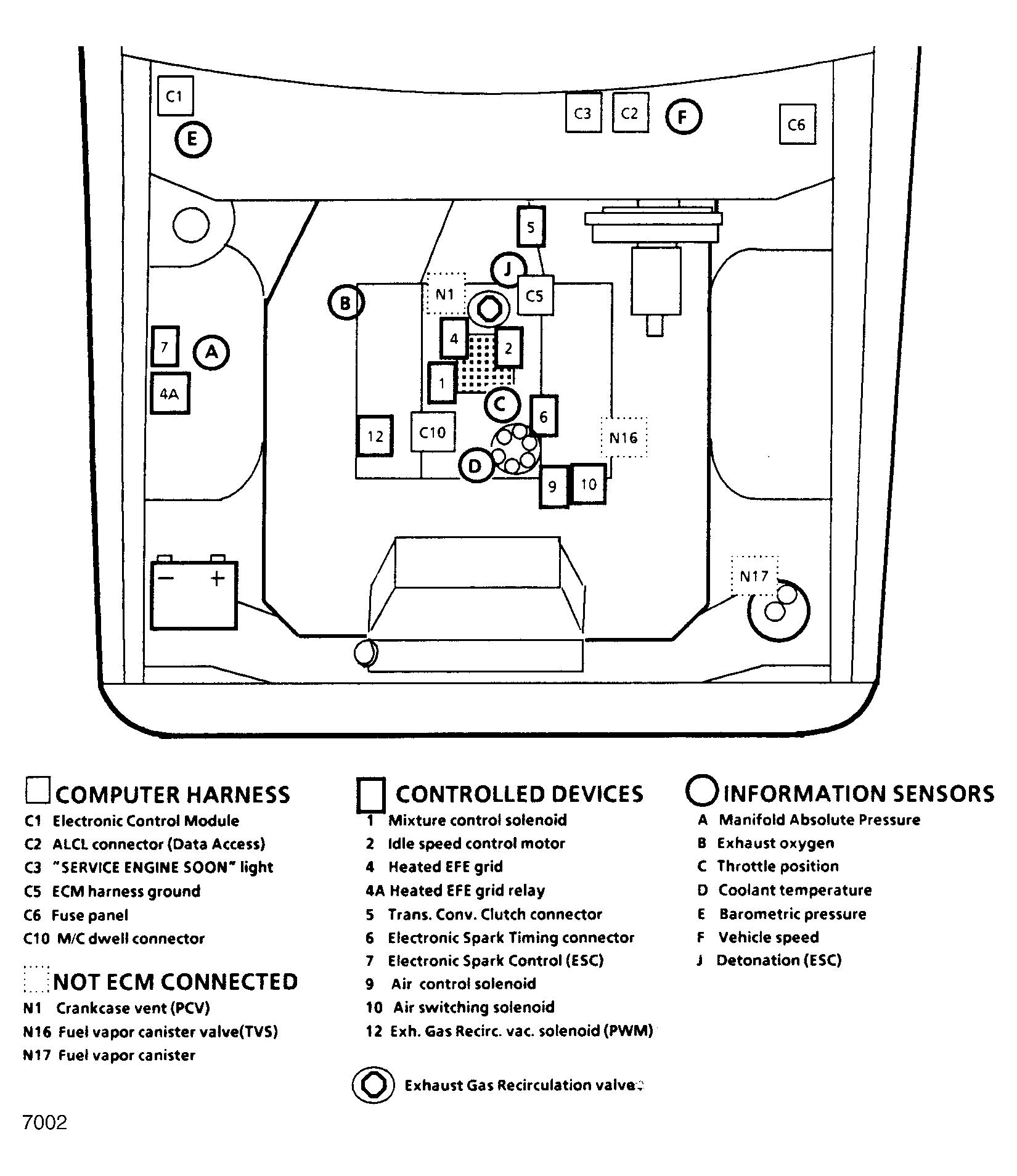

Fig 1: Comp Loc G Body, 3.8L (VIN A)

G7002
