Vacuum System (V6)

NOTE: Refer to illustrations for vacuum routing. See Fig 1 -Fig 4 .

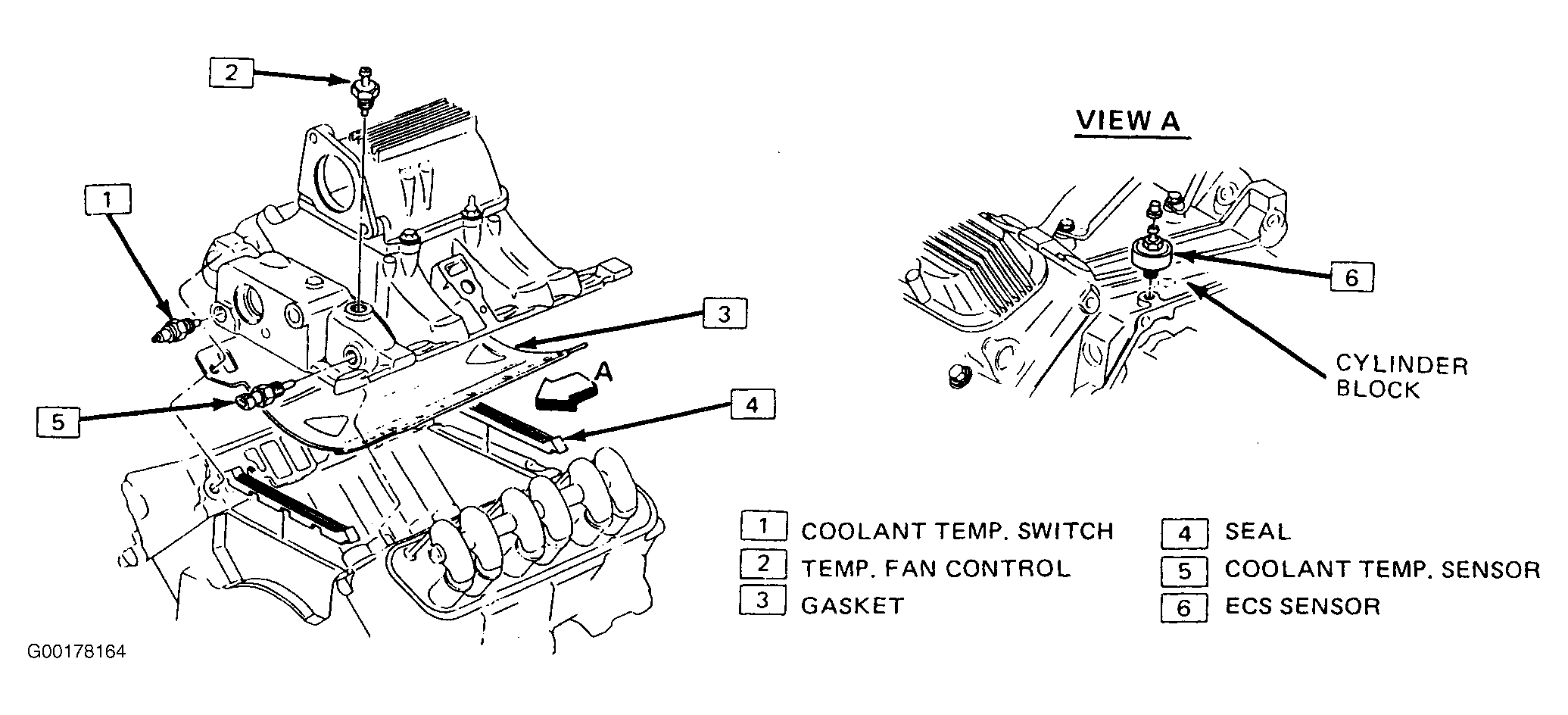

Fig 1: Intake Manifold & Sensors

Courtesy of GENERAL MOTORS CORP.

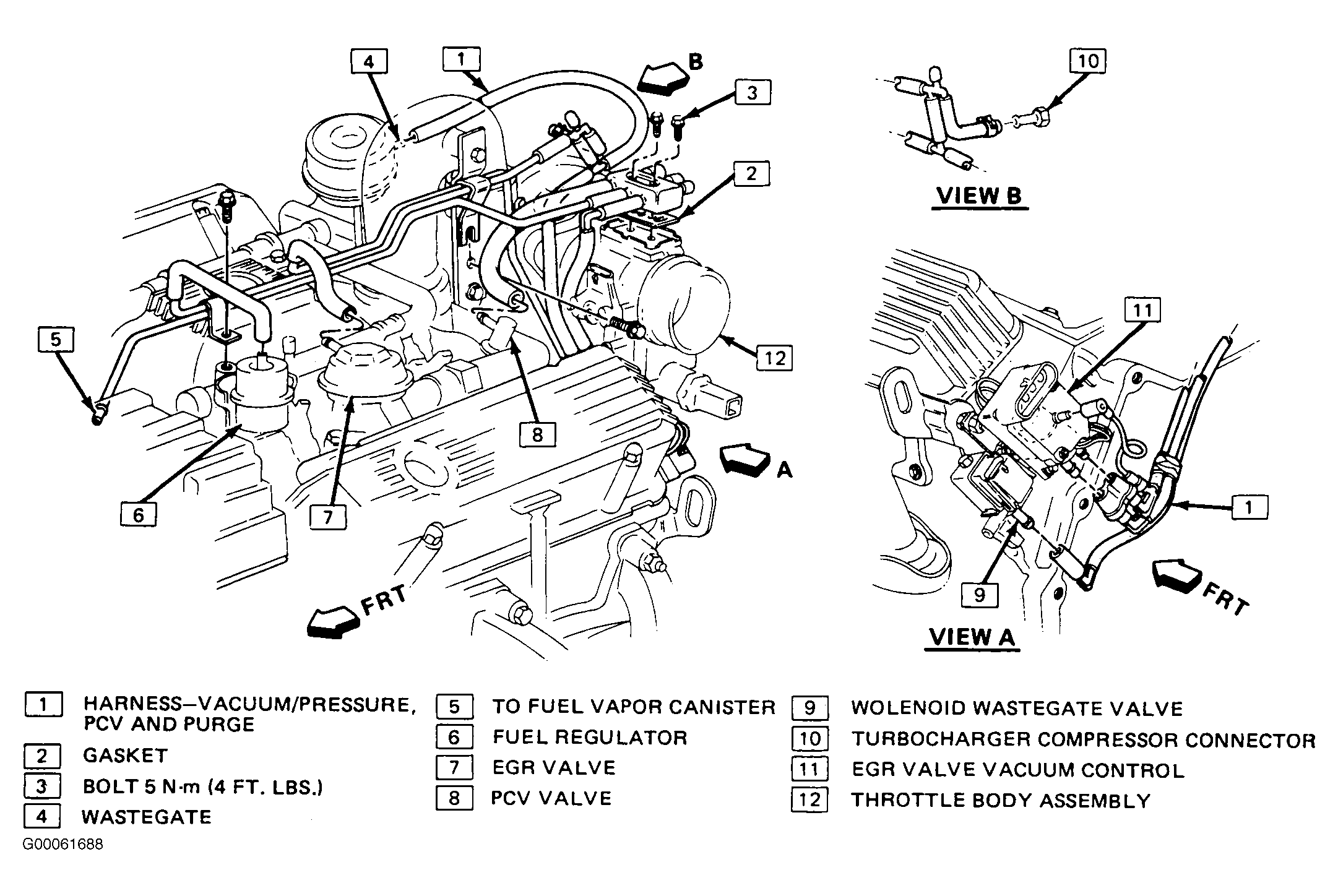

Fig 2: Turbocharger Vacuum Routing - E-Body

Courtesy of GENERAL MOTORS CORP.

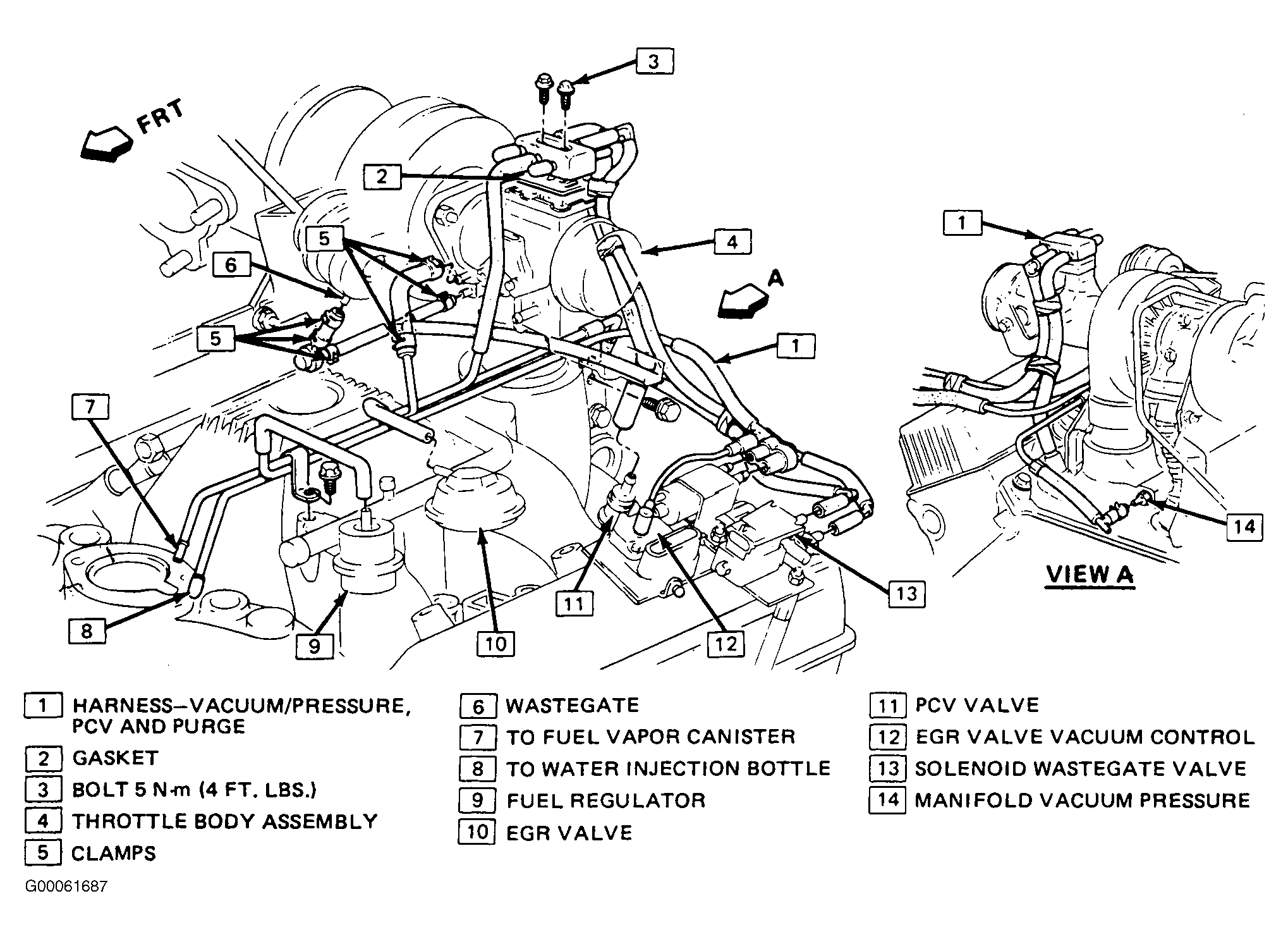

Fig 3: Turbocharger Vacuum Routing - G-Body (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

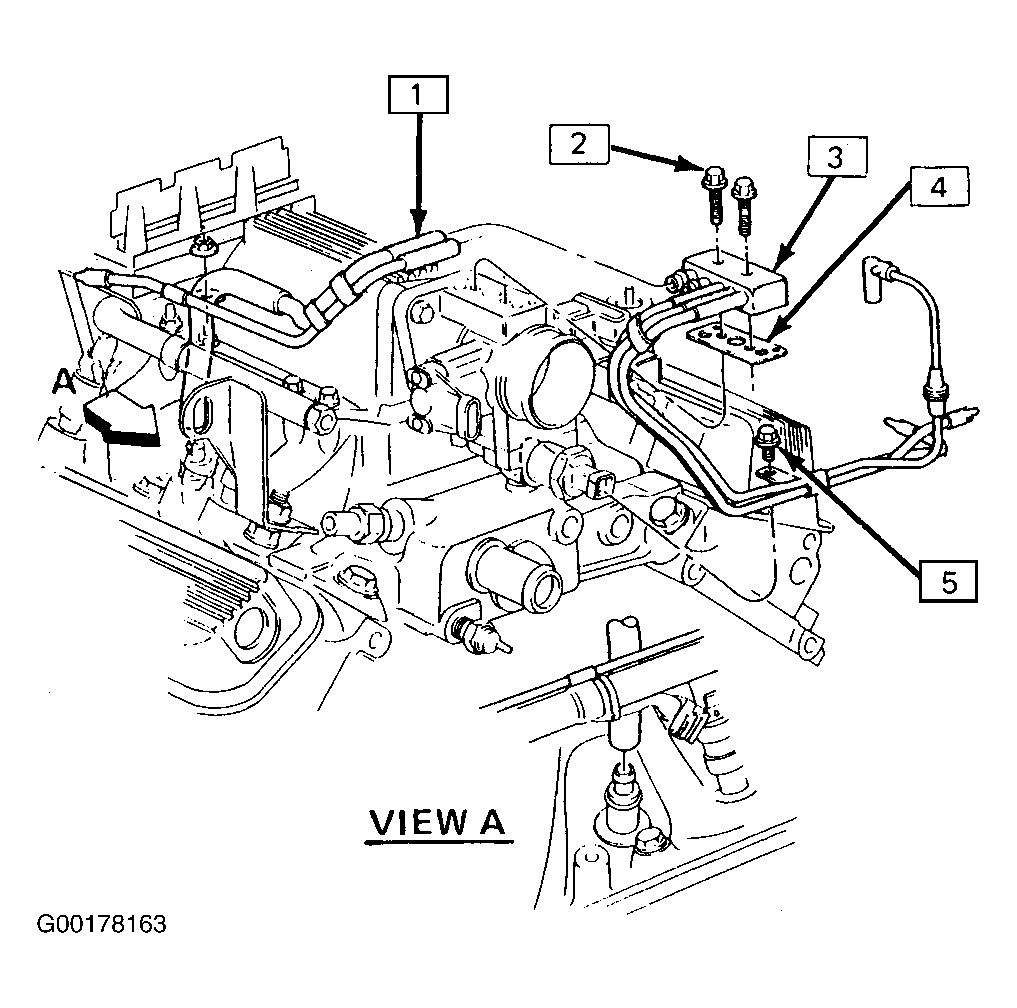

Fig 4: Turbocharger Vacuum Routing - G-Body (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
