Wiring Diagrams

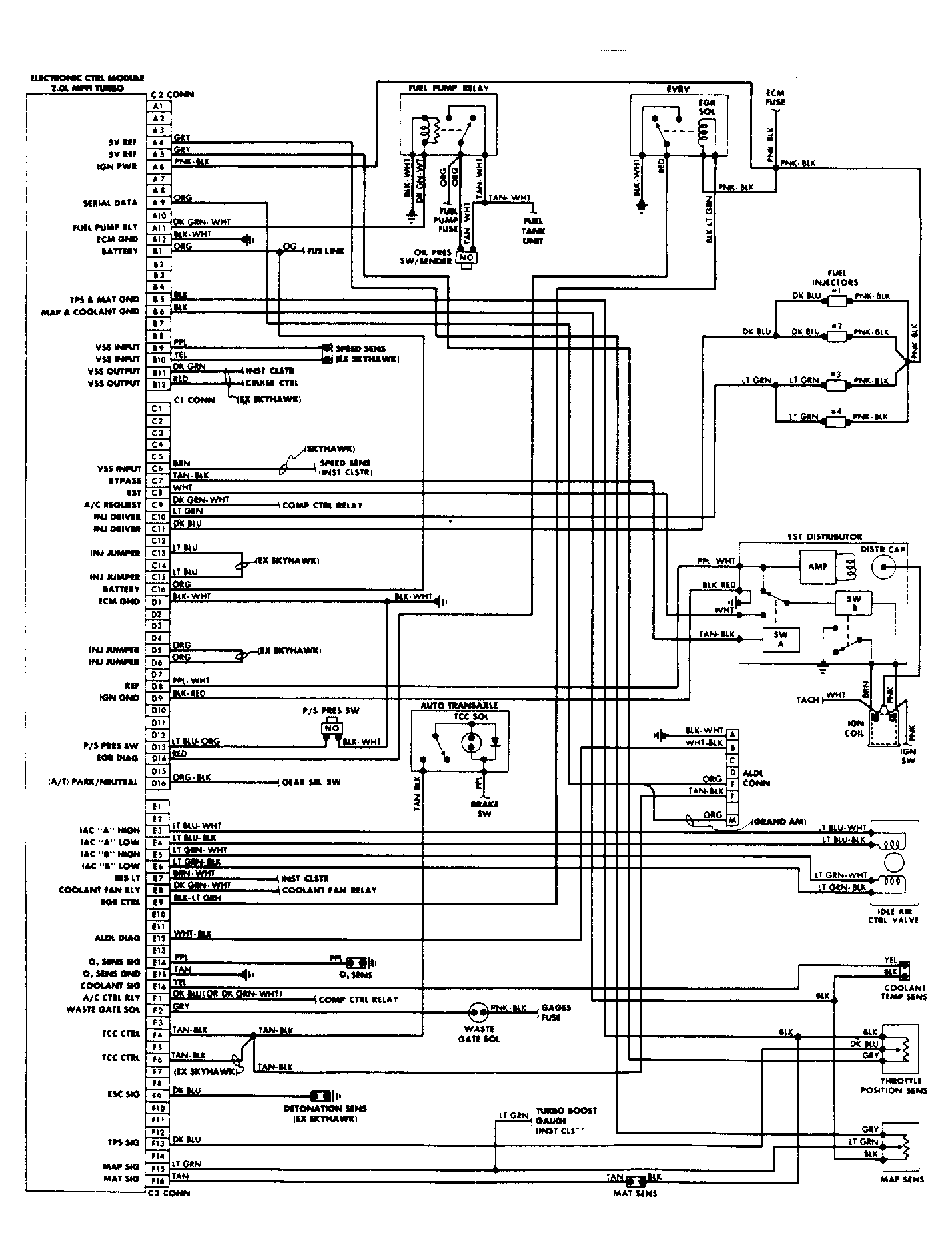

Fig 1: Wiring Diagram: 2.0L Turbo Port Fuel Injection System
G7743

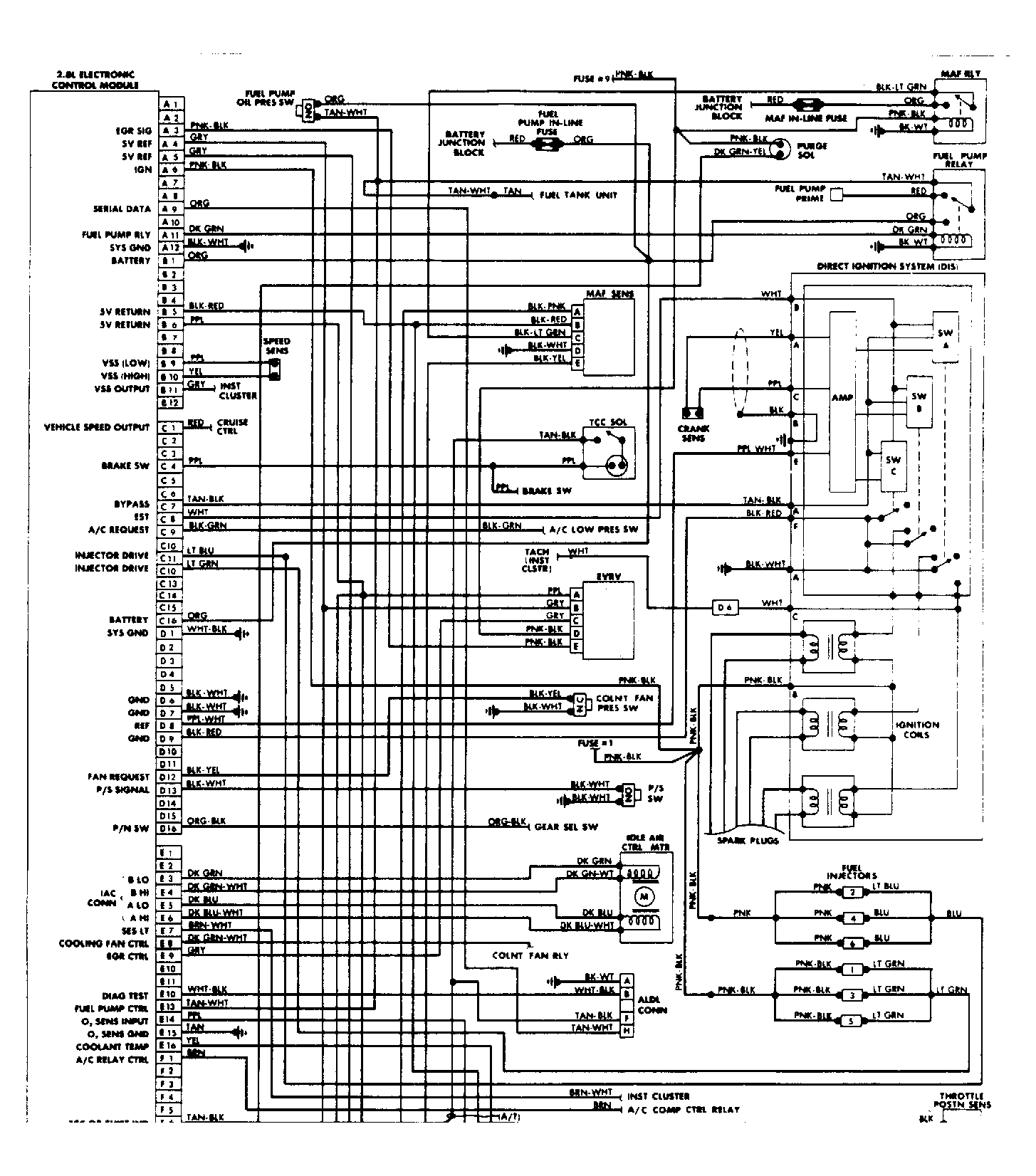

Fig 2: Wiring Diagram: Beretta & Corsica 2.8L PFI System
G7744

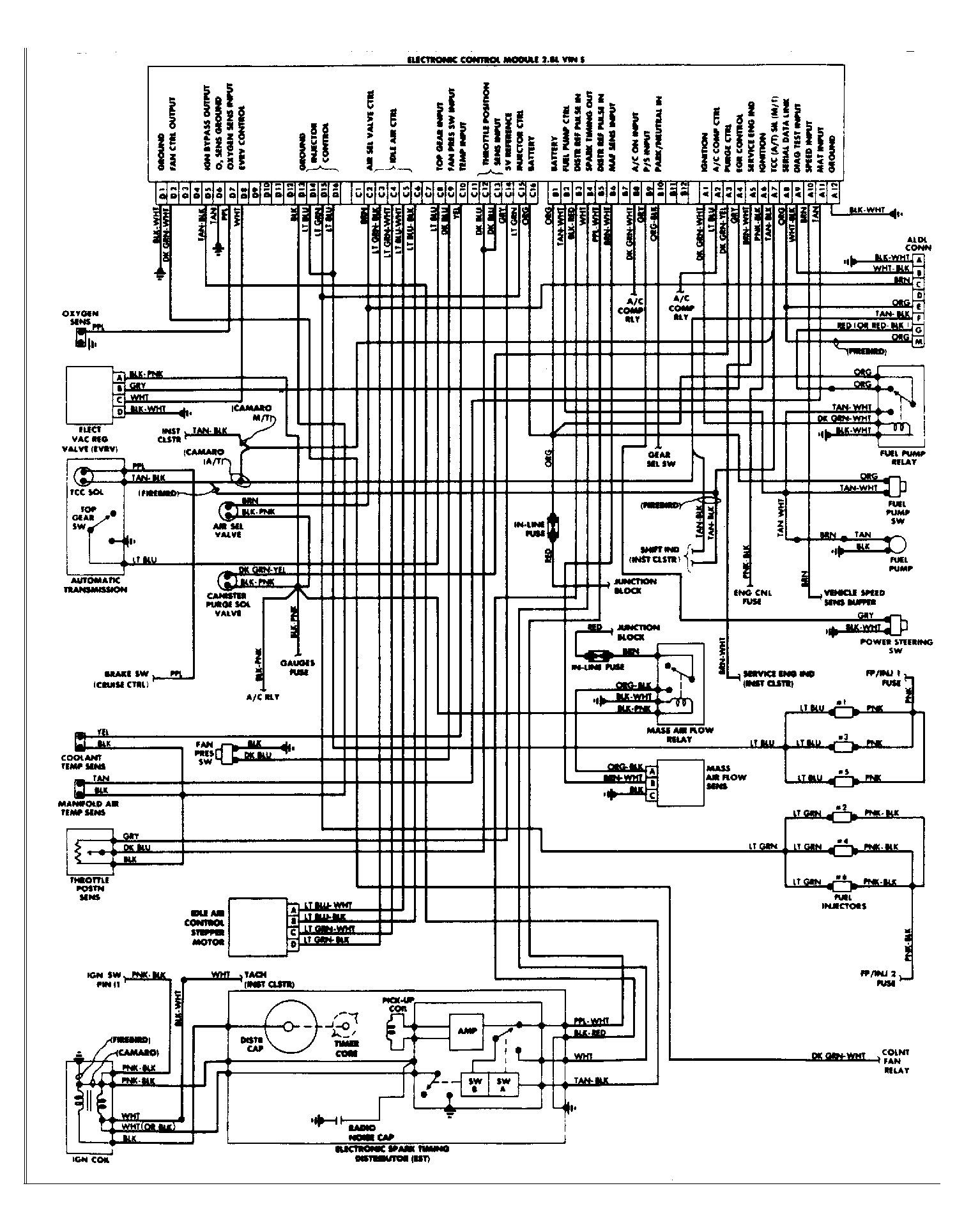

Fig 3: Wiring Diagram: Camaro & Firebird 2.8L PFI System
G7745

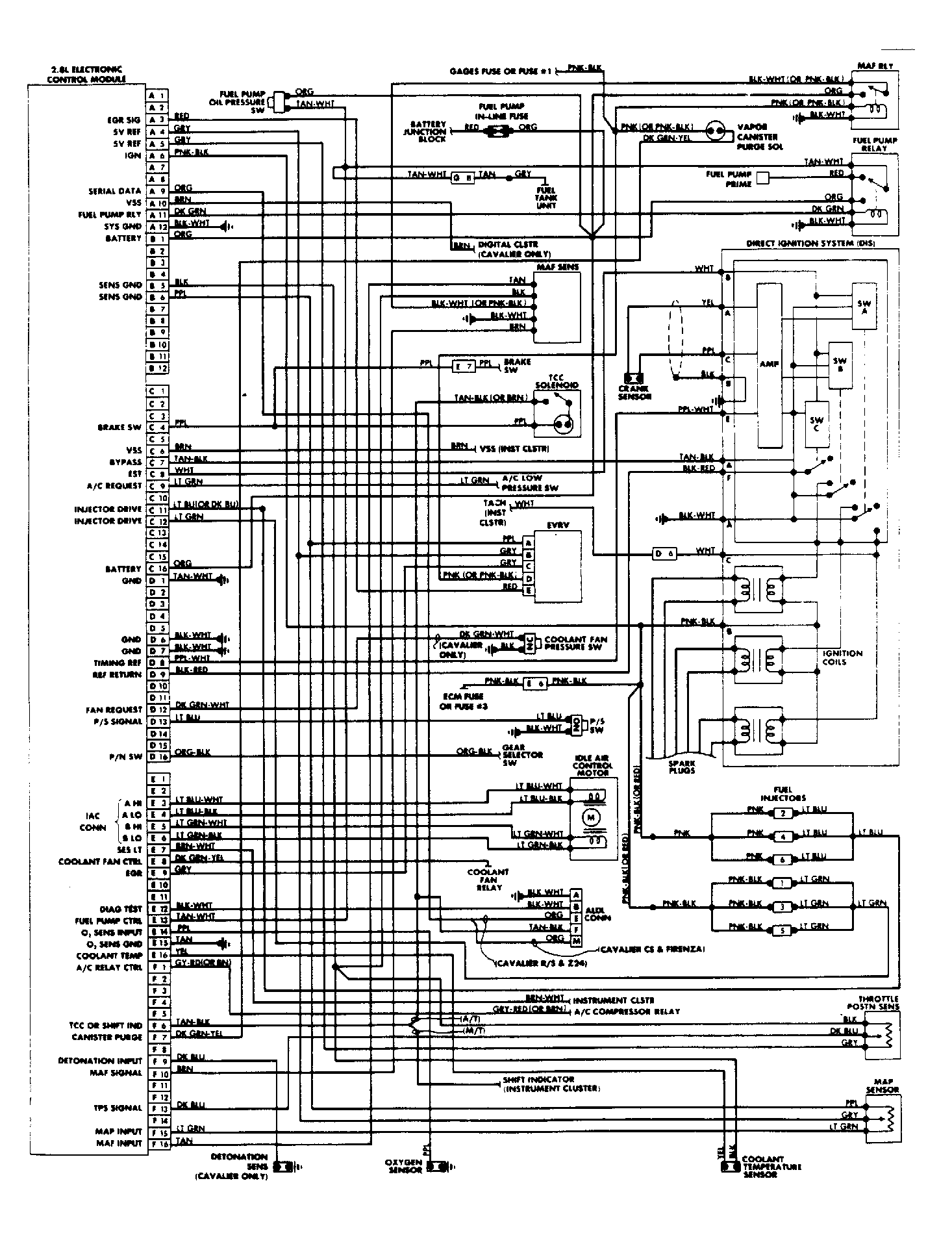

Fig 4: Wiring Diagram: Cavalier & Firenza 2.8L PFI System
G7746

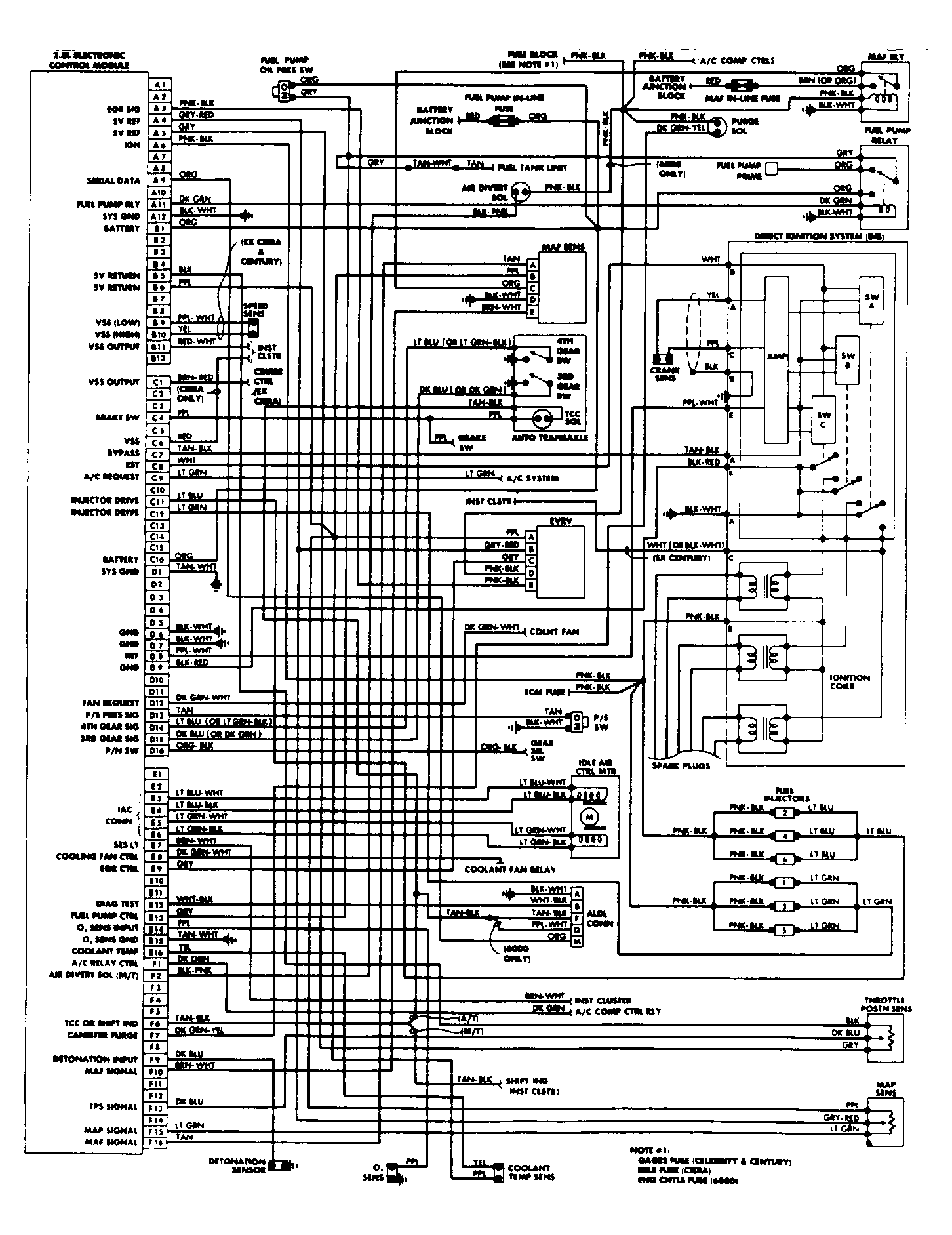

Fig 5: Wiring Diagram: Century, Celebrity, Ciera & 6000 2.8L PFI System
G7747

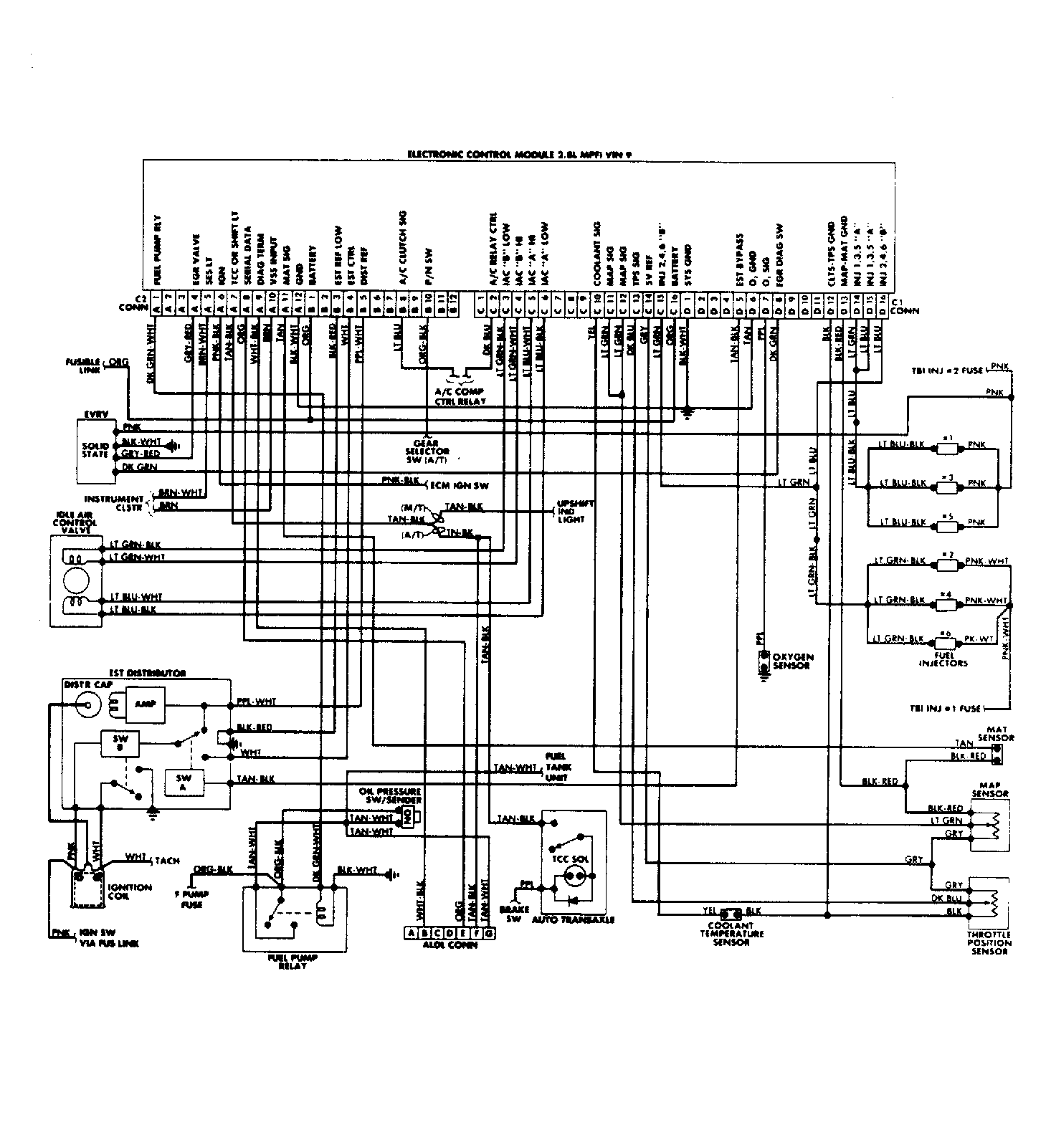

Fig 6: Wiring Diagram: Fiero 2.8L Port Fuel Injection System
G7748

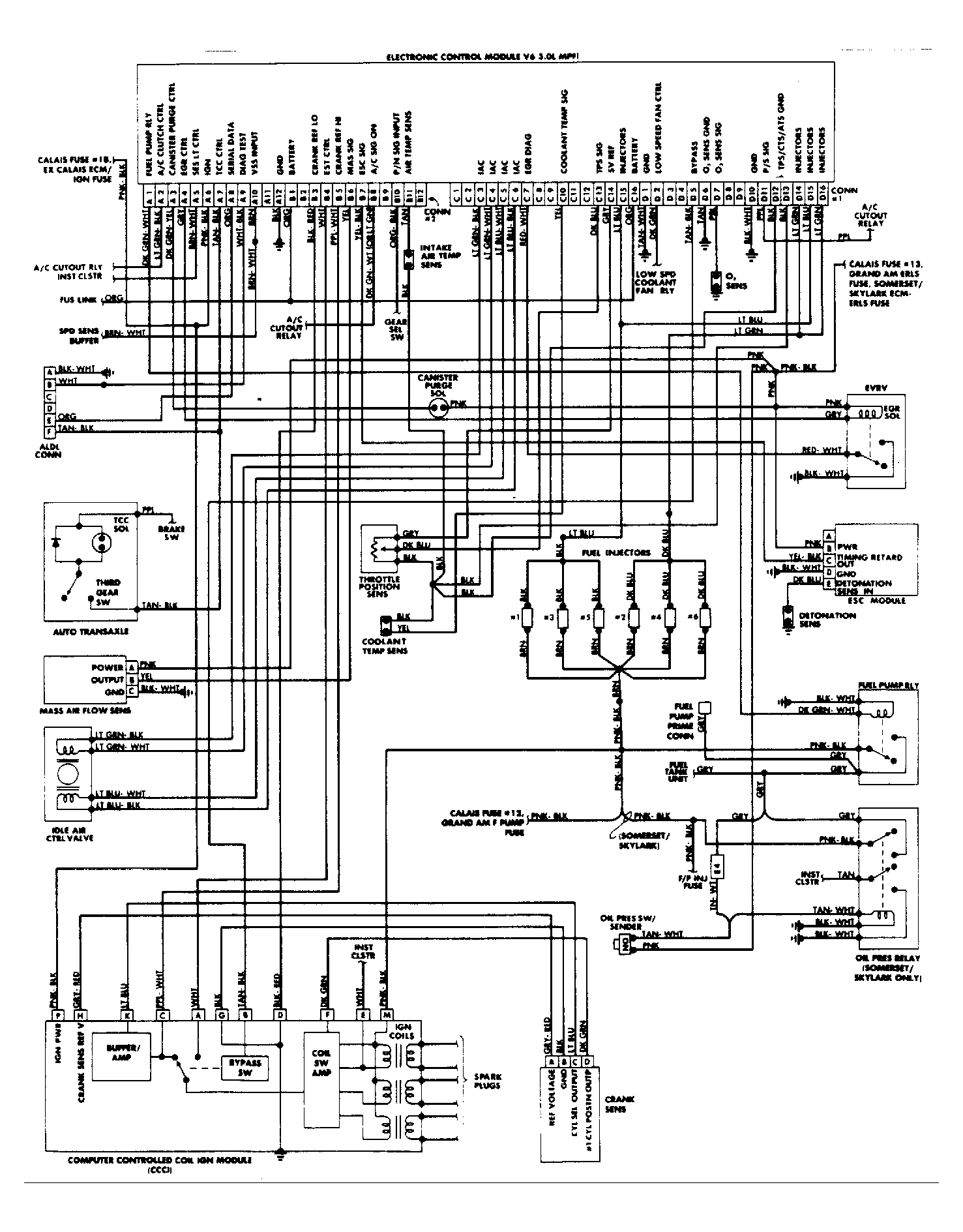

Fig 7: Wiring Diagram: Calais, Grand Am, Skylark & Somerset 3.0L PFI System
G7749

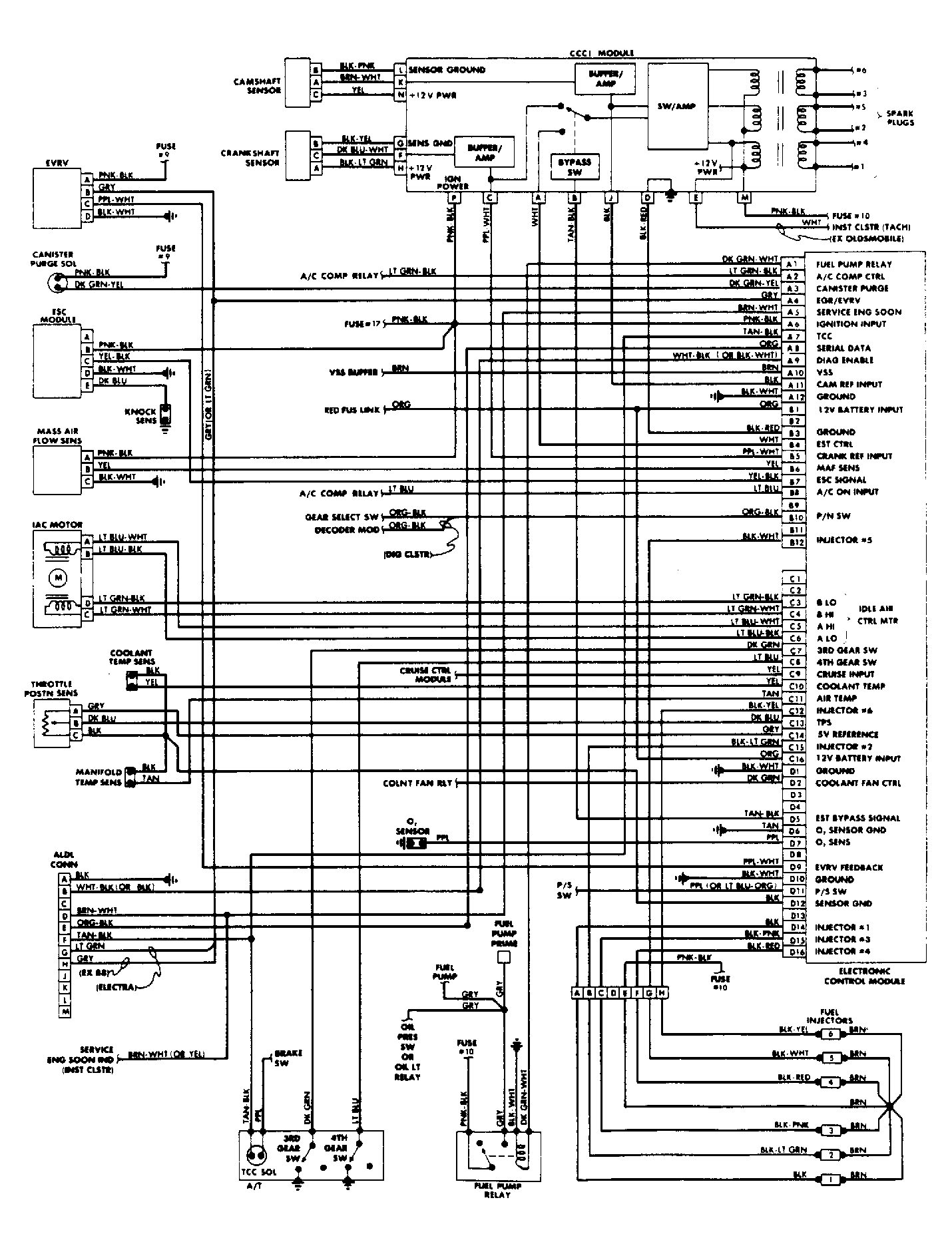

Fig 8: Wiring Diagram: Bonneville, Electra, LeSabre, Delta 88 & Ninety Eight 3.8L PFI System
G7750

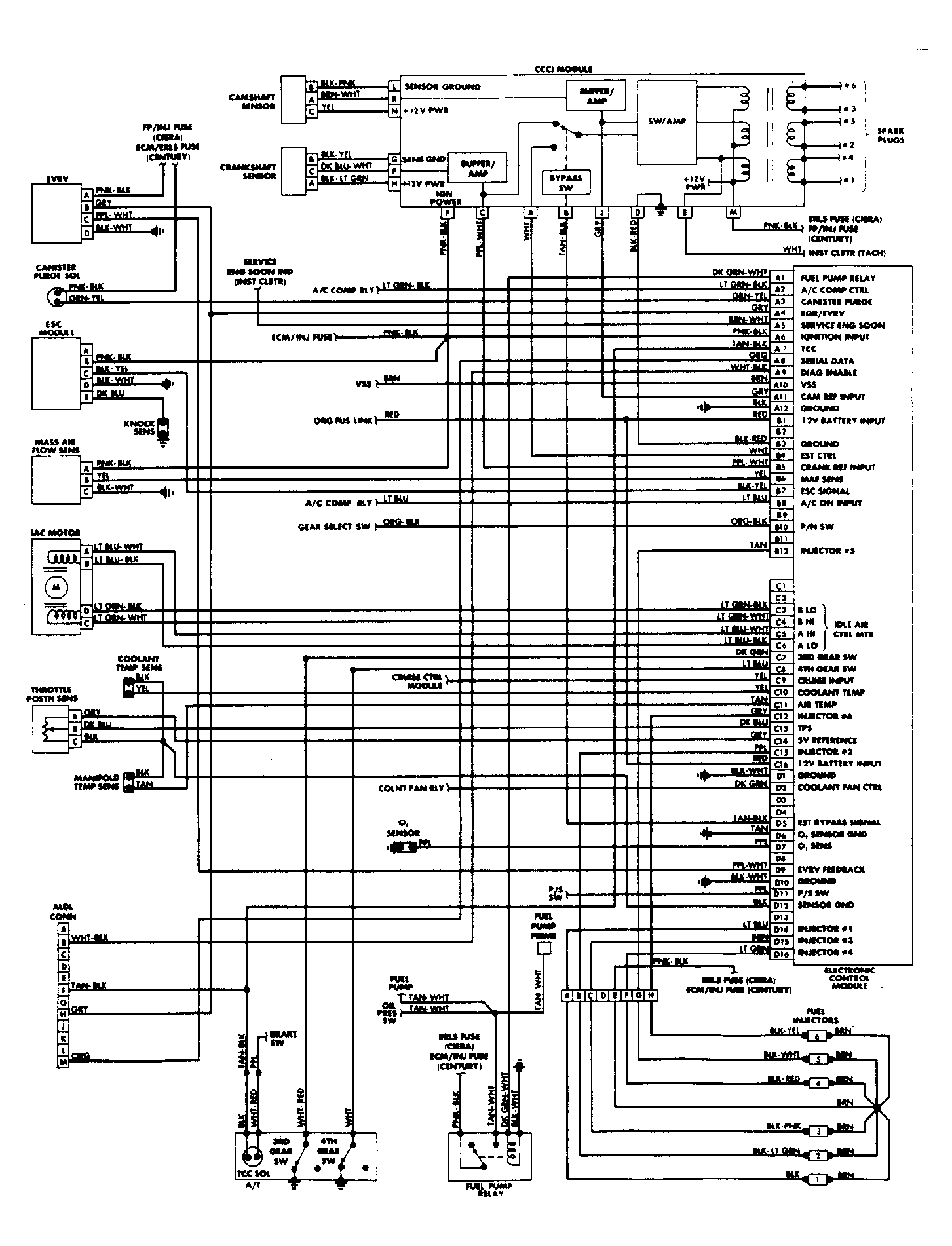

Fig 9: Wiring Diagram: Century & Ciera 3.8L PFI System
G7751

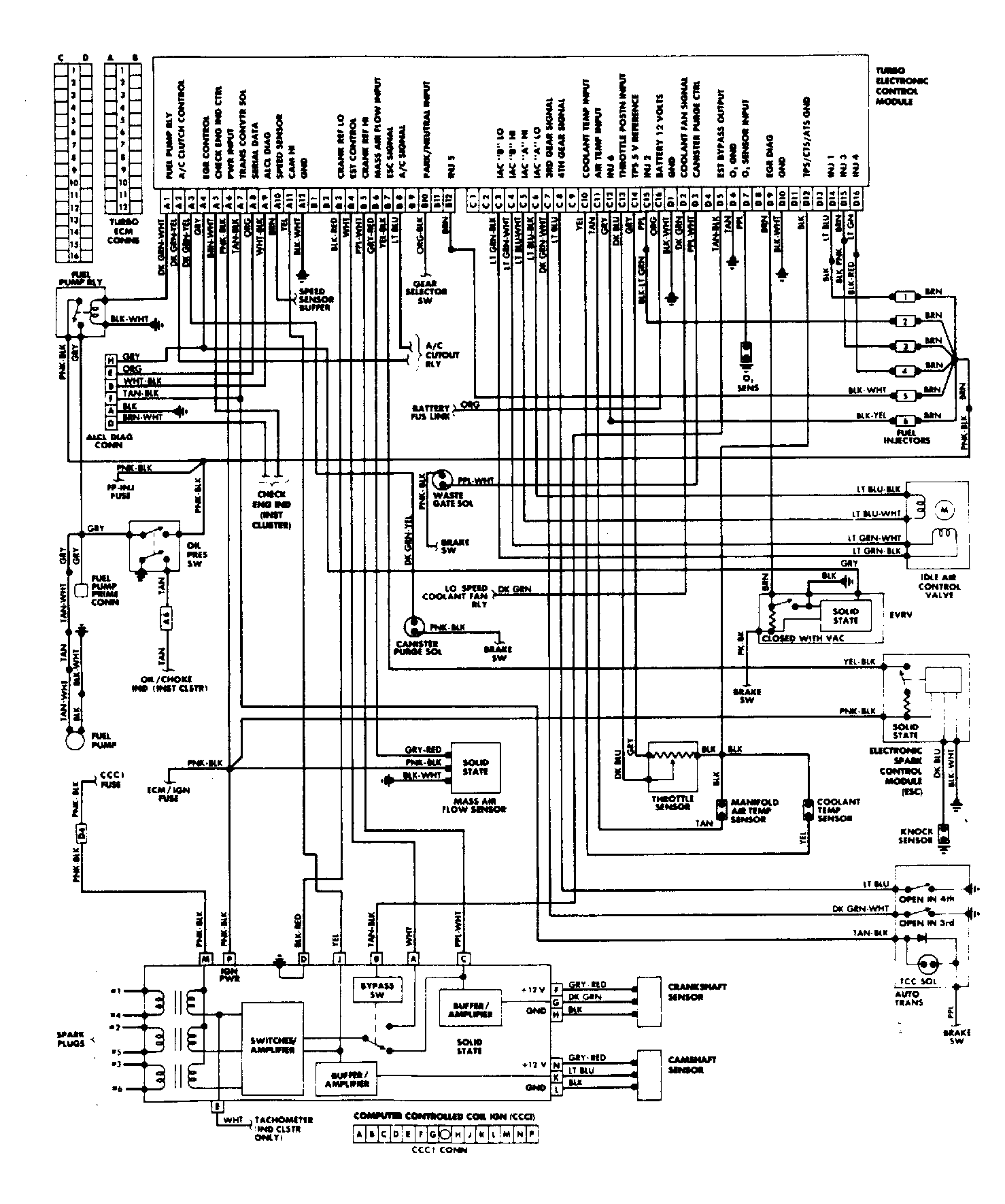

Fig 10: Wiring Diagram: Regal 3.8L Turbo PFI System
G7752

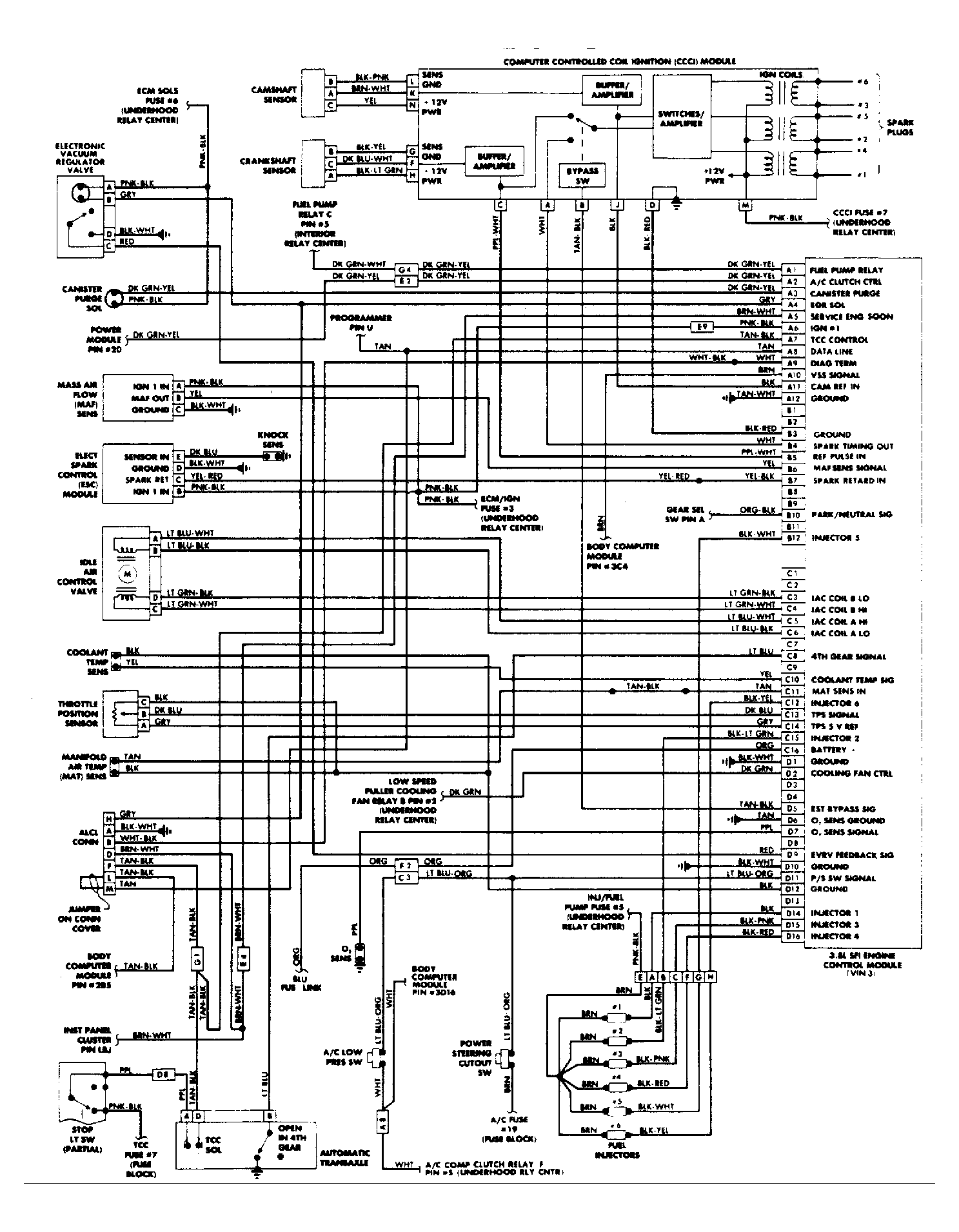

Fig 11: Wiring Diagram: Riviera 3.8L PFI System
G7753

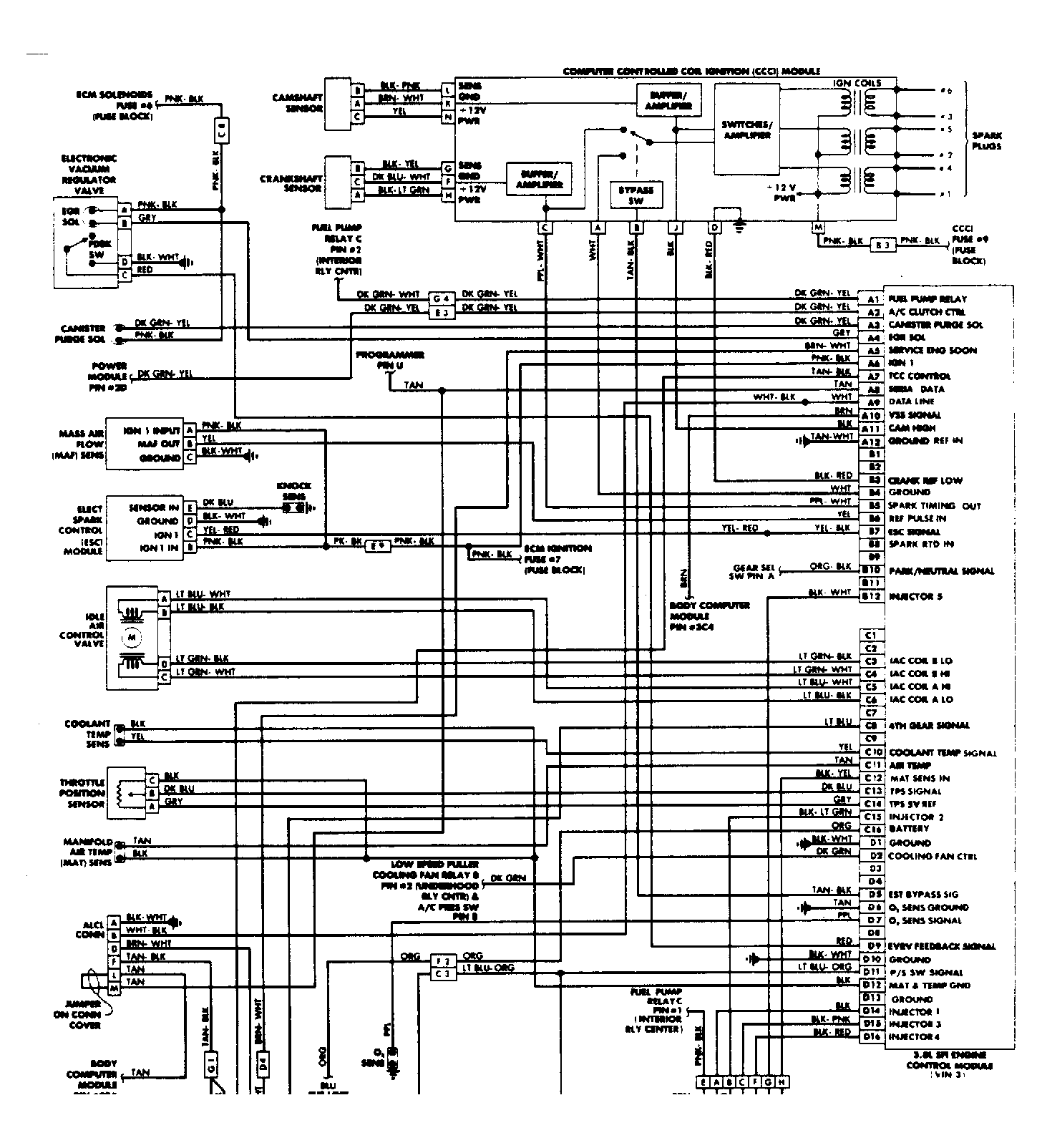

Fig 12: Wiring Diagram: Toronado 3.8L PFI System
G7754

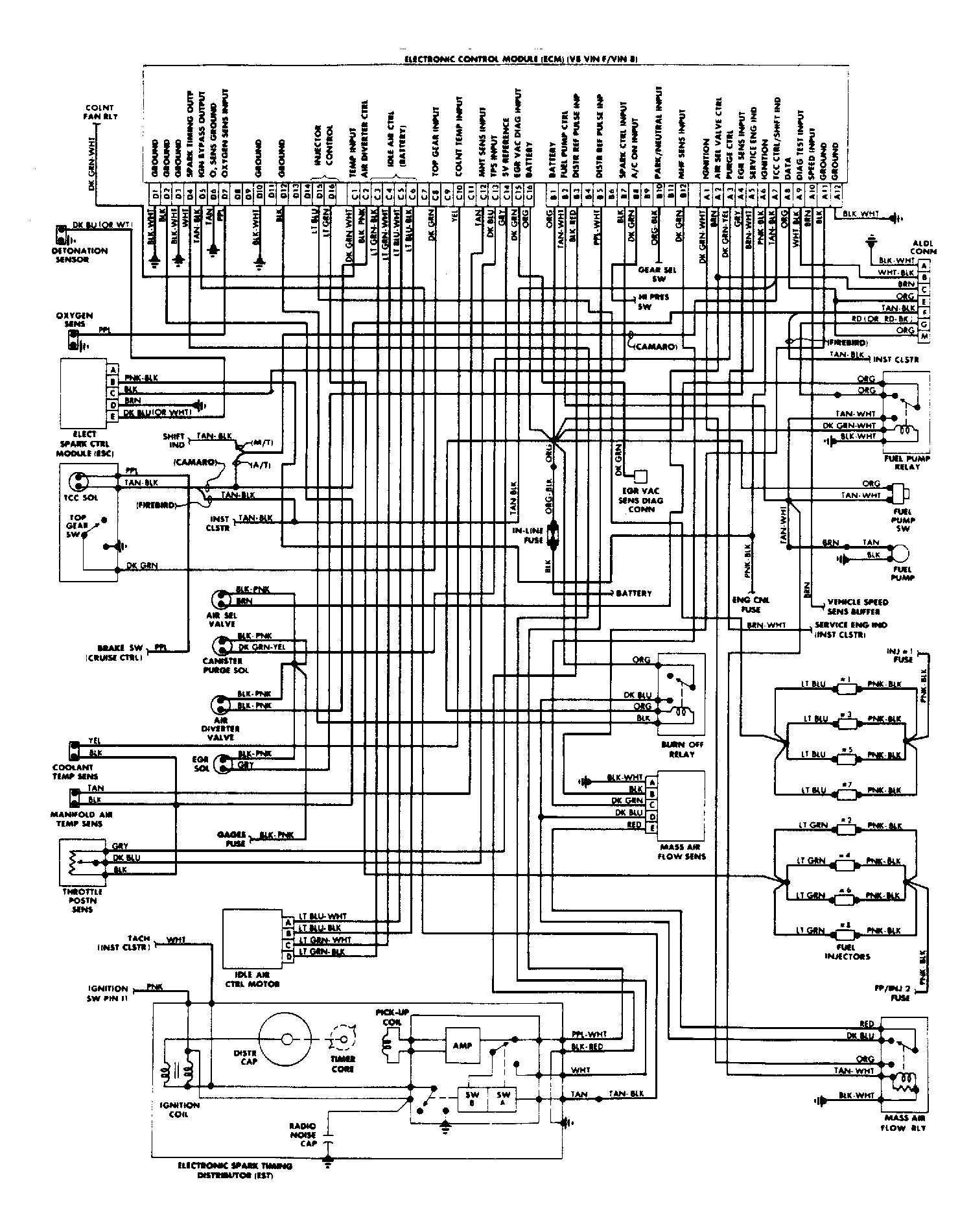

Fig 13: Wiring Diagram: Camaro & Firebird 5.0L & 5.7L PFI System
G7755

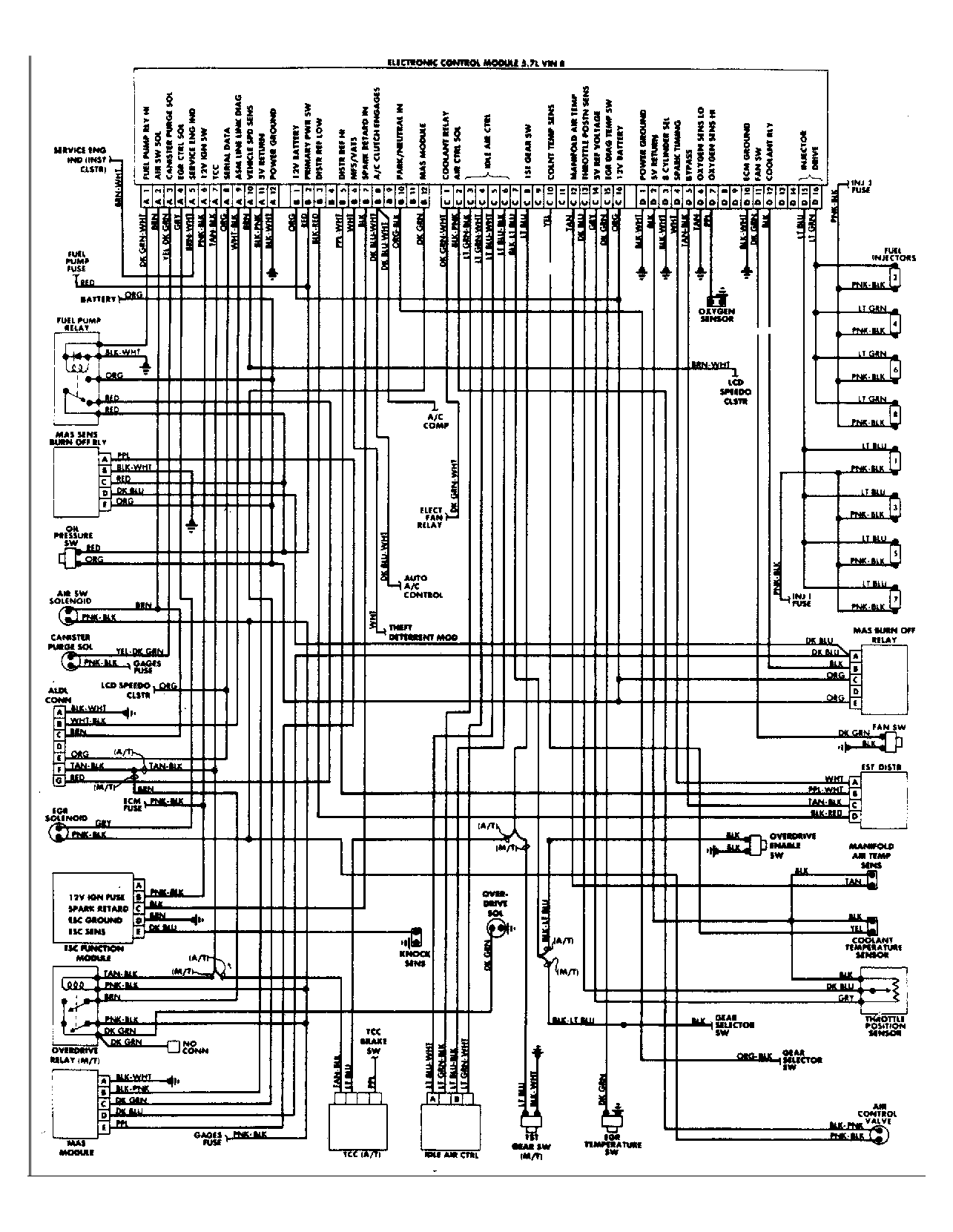

Fig 14: Wiring Diagram: Corvette 5.7L Port Fuel Injection System
G7756
