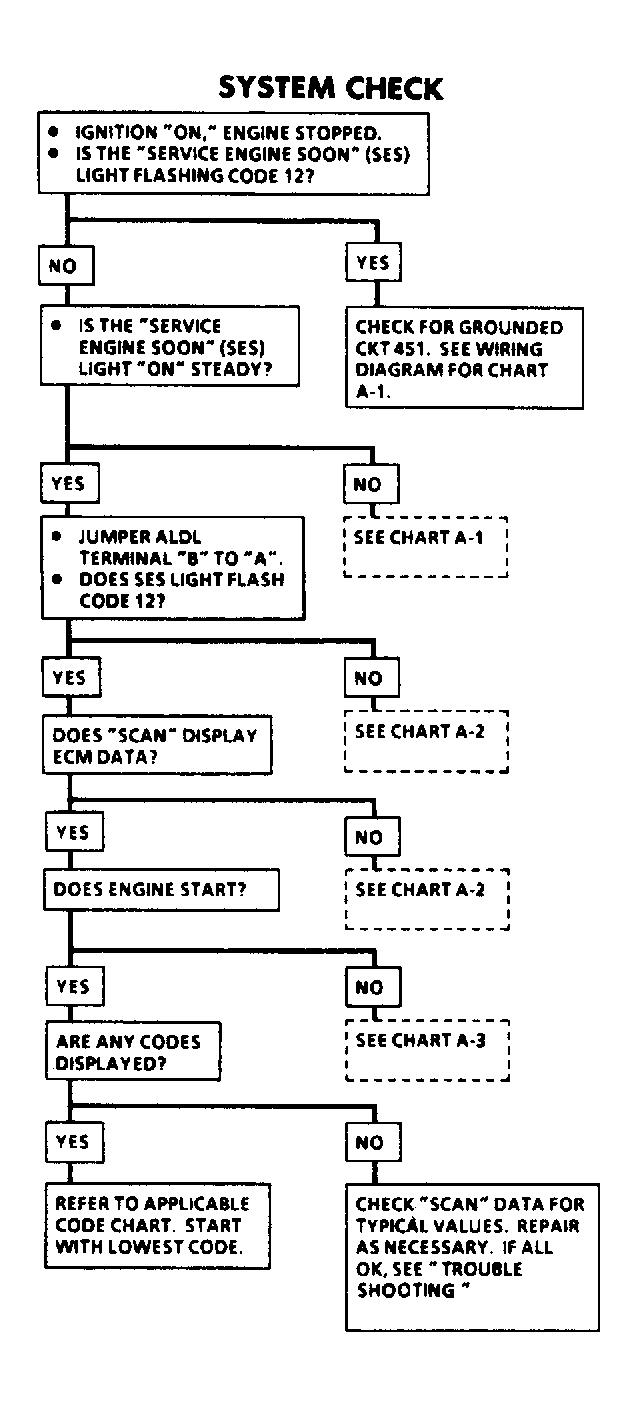

System Check Flow Chart
NOTE:
The "A" Charts referred to in the following chart can be found in the appropriate TEST article in this section. This article will be designated by an engine size as in the following example: 2.5L TBI TESTS or 2.5L TBI TESTS W/ CODES.
