Component Locations

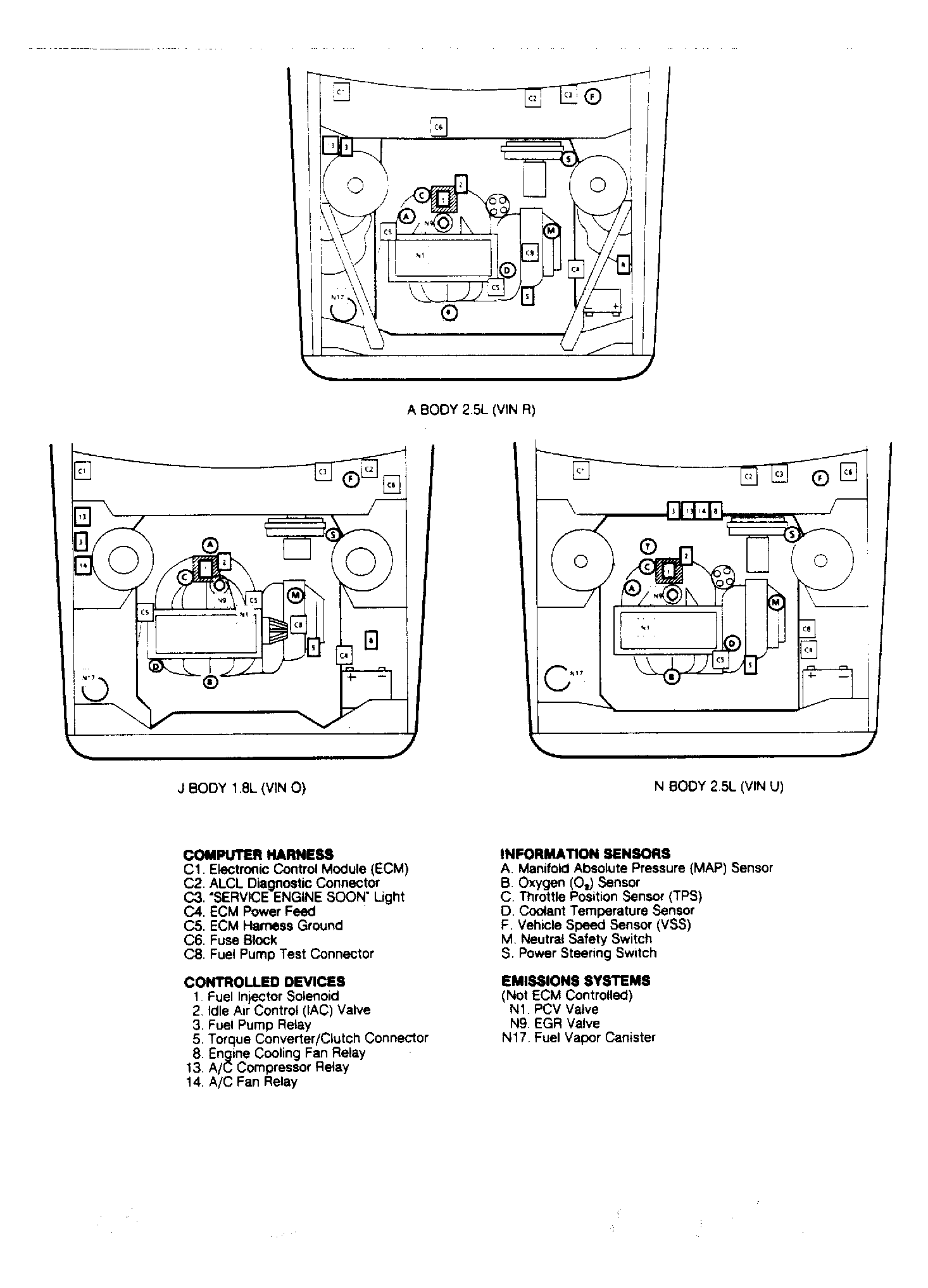

Fig 1: Component Locations (A/N Body 2.5L)

G4753

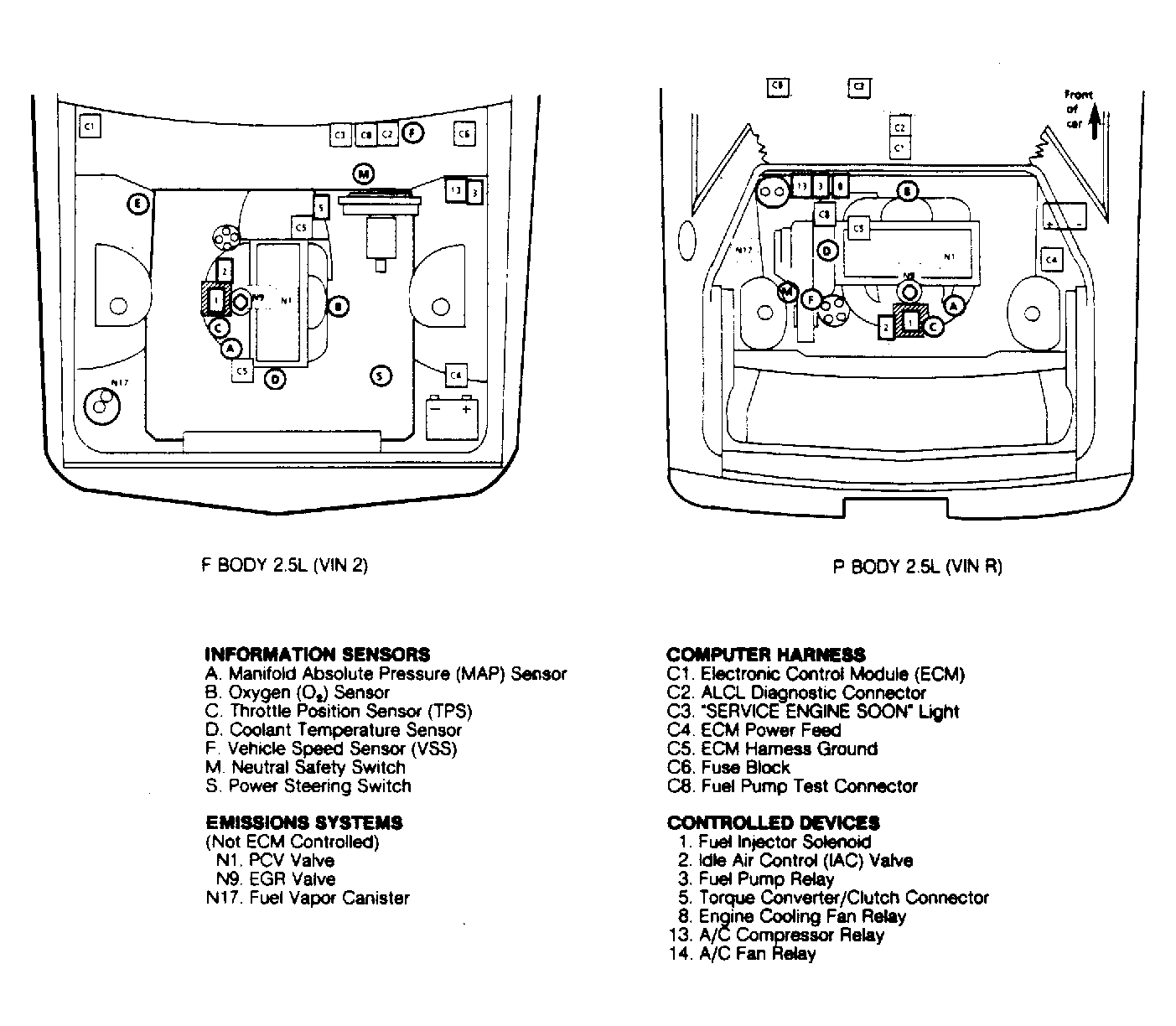

Fig 2: Component Locations (F/P Body 2.5L)

G4754
