Service Point Locations

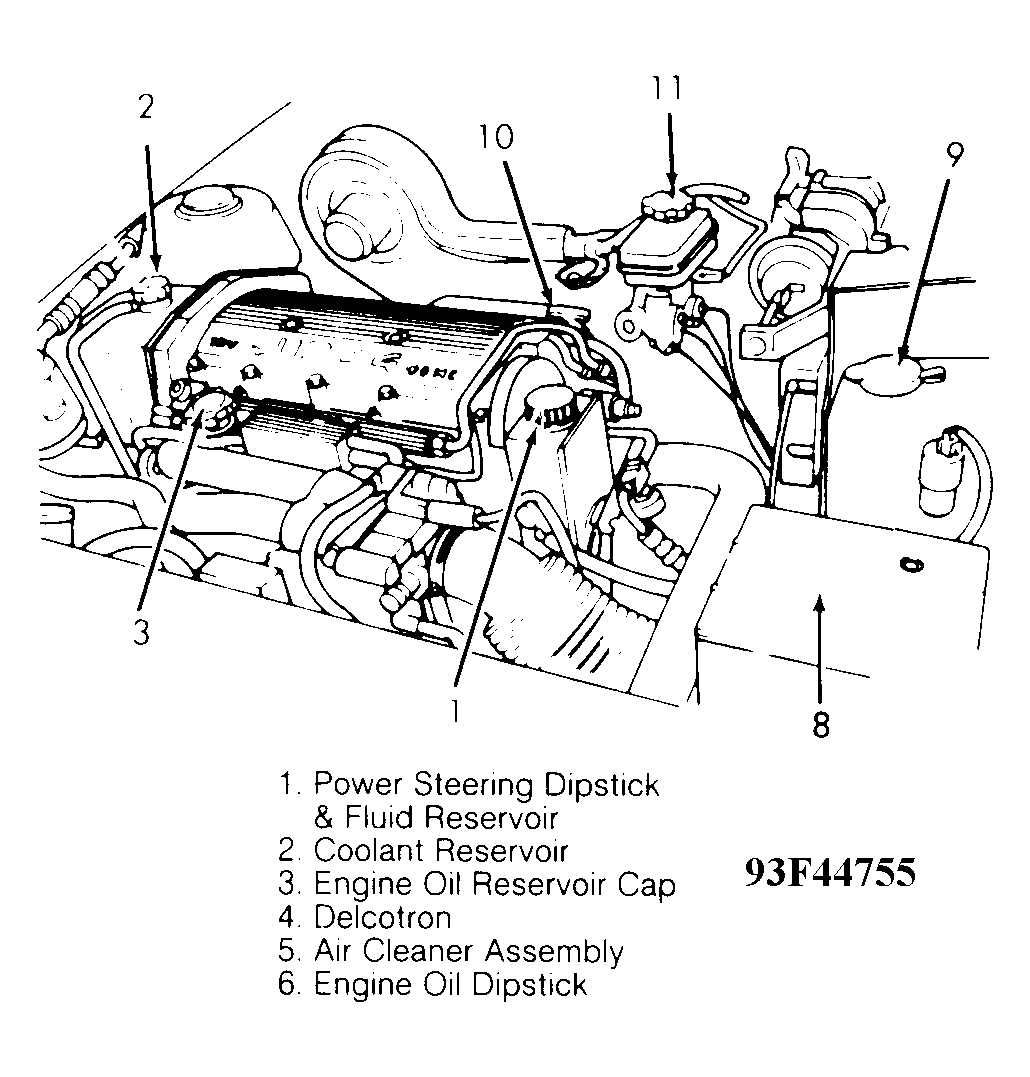

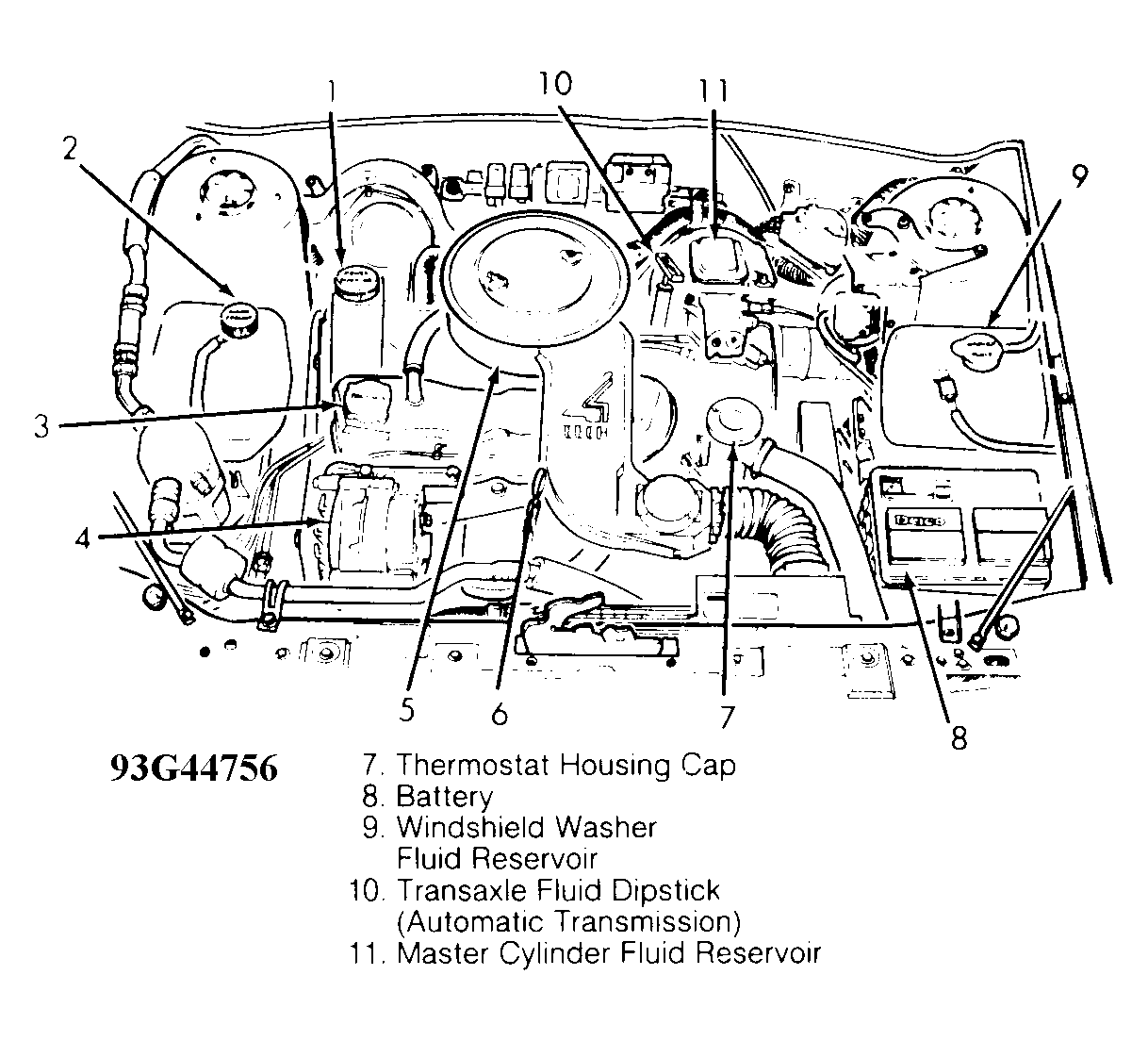

Fig 1: Compartment Component Locations (Typical 2.3L Engine)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Compartment Component Locations (Typical 2.5L Engine)

Courtesy of GENERAL MOTORS CORP.

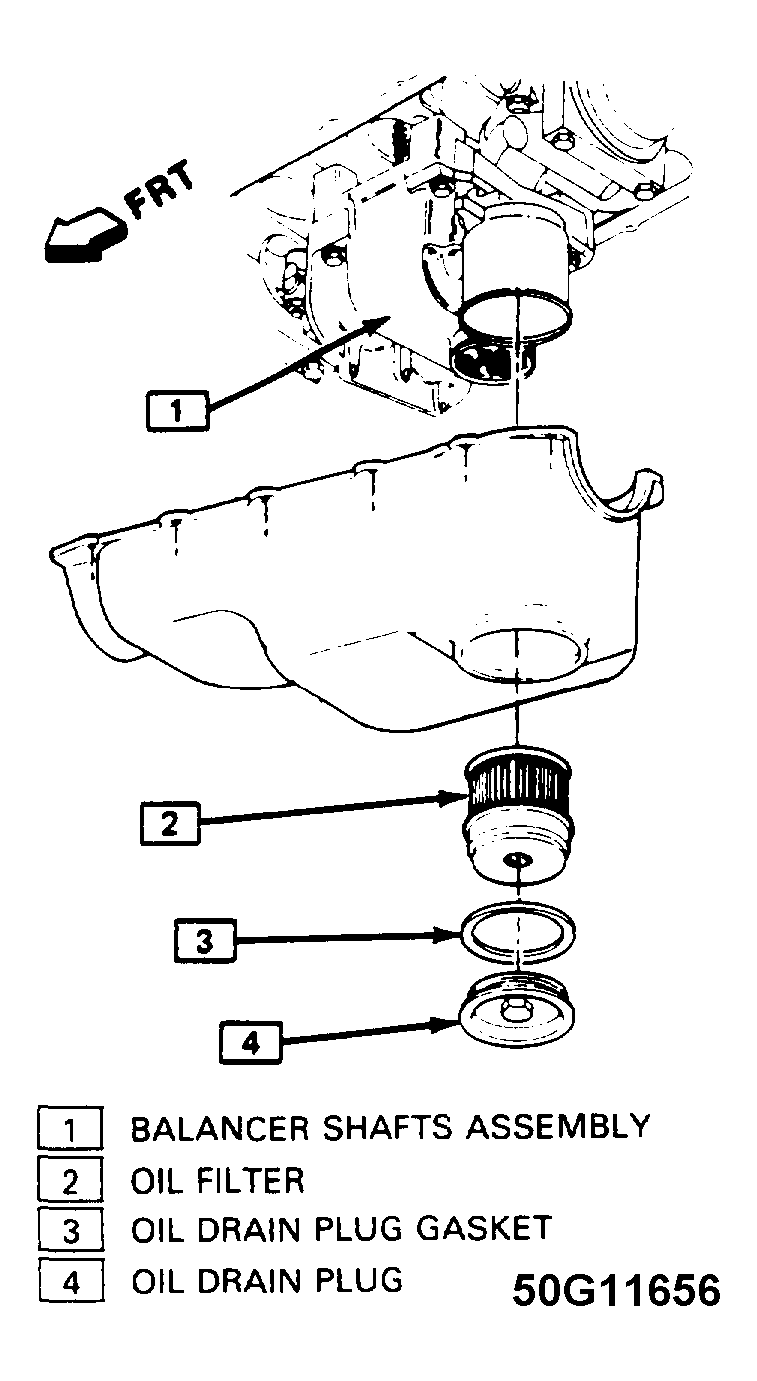

Fig 3: In-Pan Oil Filter Location (2.5L Engine)

Courtesy of GENERAL MOTORS CORP.

NOTE: Before changing oil filter on 2.5L engines refer to the 88-6-40 IN-PAN OIL FILTER REPLACEMENT PROCEDURE article in the TSB section.

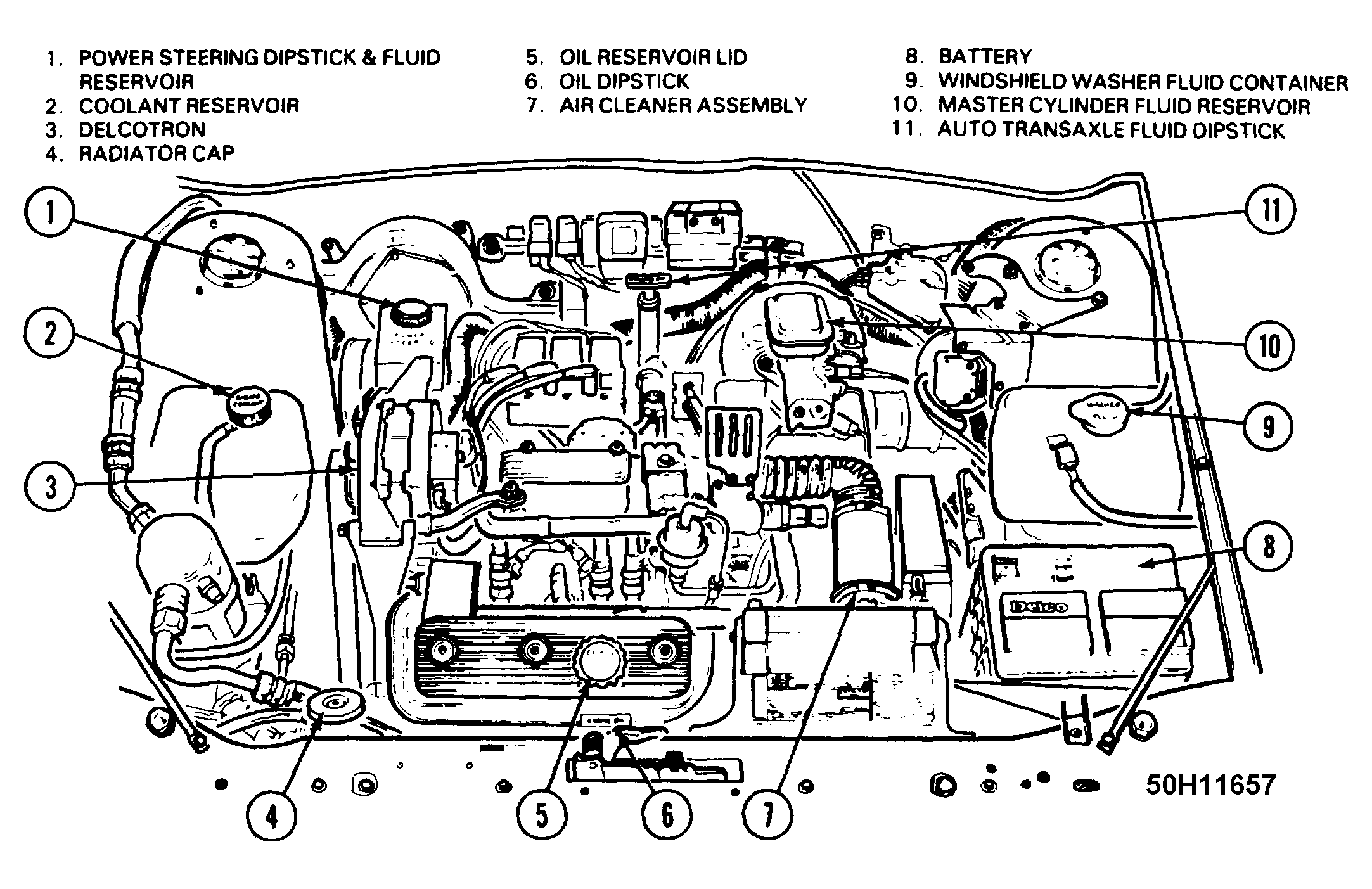

Fig 4: Compartment Component Locations (Typical V6 Engine)

Courtesy of GENERAL MOTORS CORP.
