Chart C2F - TPS Enrichment

Fig 1: Flow Chart C2F, TPS Enrichment

G6317

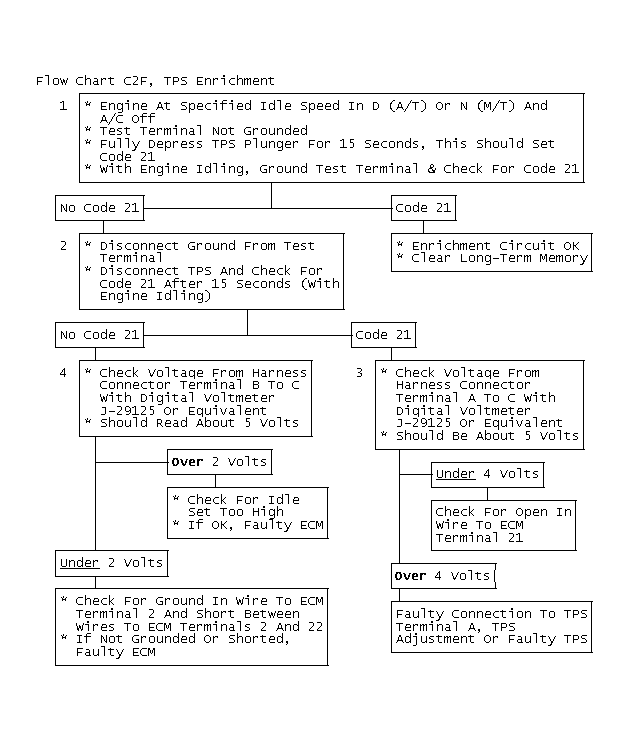

Fig 2: Flow Chart C2F, TPS Enrichment

GB0045940
