2-Way Power Seats

These seats operate in forward and rearward directions only. Control switch energizes motor and at each end of the motor shaft is a jack screw which turns the seat adjusters in the desired directions through a horizontal gear nut attached to the seat adjuster.

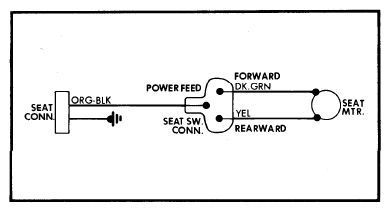

Fig 1: General Motors 2-Way Seat Wiring Diagram
G09318138Courtesy of GENERAL MOTORS COMPANY
