Riding Height

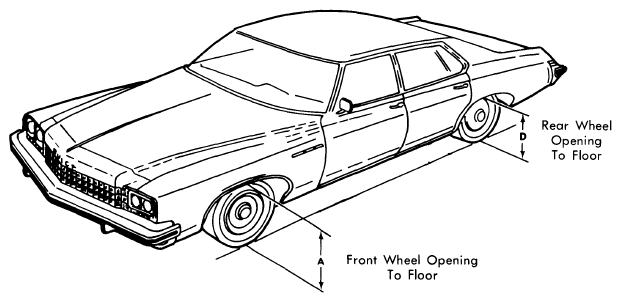

With car on smooth level floor, trunk empty and fuel tank full, bounce both front and rear of car several times and let car assume normal position. Measure the dimensions as shown in Fig. 13. If riding height is not within specified limits, install shims between upper end of spring and frame.
RIDING HEIGHT SPECIFICATIONS
| Application | A | D | |
|---|---|---|---|
| Century & Regal | |||
| Sedan | 26.7" | 26.0" | |
| Coupe | 26.7" | 26.0" | |
| Wagon | 26.8" | 26.4" | |
| LeSabre & Estate Wagon | |||
| Sedan | 28.9" | 28.5" | |
| Coupe | 28.9" | 28.5" | |
| Wagon | 28.9" | 28.7" | |
| Electro | 28.9" | 23.2" | |
| Riviera | 28.5" | 28.0" | |
| Skyhawk | 25.7" | 26.0" | |
| Skylark | 27.1" | 25.3" | |
