Window Lowers Fully With Tailgate Open

Stop cable and clip assembly out of adjustment on right guide cam. Cable disconnected at either end or broken.

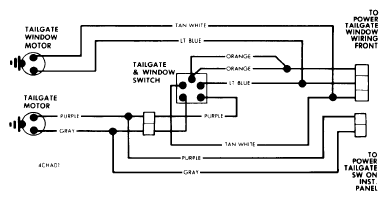

Fig 1: G.M. Power Tailgate Wiring Diagram
G09328791Courtesy of GENERAL MOTORS COMPANY
