Intake Manifold Tightening

Tighten intake manifold bolts in sequence shown in diagram to 55 Ft.Lbs.

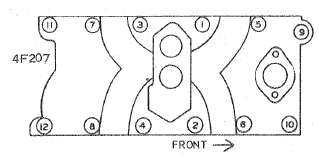

Fig 1: MANIFOLD TIGHTENING SEQUENCE
G09351268Courtesy of GENERAL MOTORS COMPANY
