Piston & Rod Assembly

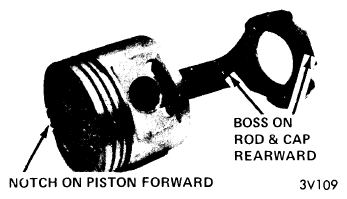

See accompanying illustrations for proper assembly of piston and rod.
CRANKSHAFT MAIN & CONNECTING ROD BEARINGS
| Engine | MAIN BEARINGS | CONNECTING ROD BEARINGS | ||||||
|---|---|---|---|---|---|---|---|---|
| Journal Diam. | Clearance | Thrust Bearing | Crankshaft Endplay | Journal Diam. | Clearance | Sideplay | ||
| 350" | ||||||||
| 1968-72 | 2.9995" | .0004.0015" | No. 3 | .003.009" | 2.000" | .0002.0023" | .006-.014" | |
| 1973 | 2.9995" | .0004-.0015" | No. 3 | .003.009" | 2.000" | .0002-.0023" | .006-.020" | |
| 400", 430", & 455" | ||||||||
| 1968-72 | 3.250" | .0007.0018" | No. 3 | .003.009" | 2.250" | .0002-.0023" | .005.012" | |
| 1973 | 3.250" | .0007.0018" | No. 3 | .003.009" | 2.250" | .0002.0023" | .005-.019" | |
