Electric Drive Unit, Control Module (EME) -- Repair (IX)
>>
12 35 Electric Drive Unit
>>
12 35 522 Replacing front eDrive motor
>>
Removing the lid of electrical machine electronics
Removing the lid of electrical machine electronics
Loosen screws
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

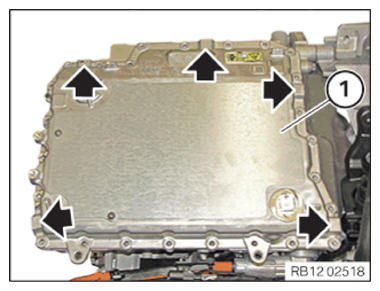

Raise lid
(1)
at the positions indicated with an arrow using a large screwdriver.
Remove the lid
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
