32 31 003 Removing and installing/replacing upper section of steering column shroud

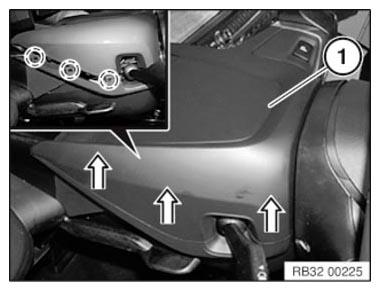

Carefully pull steering column shroud upper section (1) on the left upward and unclip.

G11145364Courtesy of BMW OF NORTH AMERICA, INC.

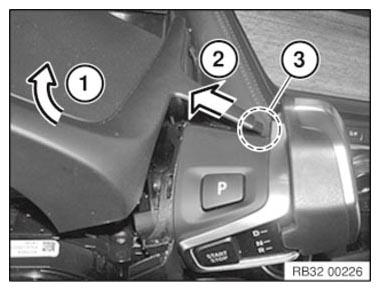

Carefully unclip steering column shroud upper section on right (1).

Feed out steering column shroud upper section toward the left (2) from gear selector switch.

NOTE: When installing, ensure that trim panel on gear selector switch is correctly seated (3).
G11145365Courtesy of BMW OF NORTH AMERICA, INC.
