Additional work for camber correction
NOTE:
The camber adjustment is performed only with the replacement of the swivel bearing. There are 3 different swivel bearings for this!
IMPORTANT:
Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!
NOTE:
The swivel bearing may only be replaced if the camber is outside the specified tolerance after toe adjustment.
Preliminary work needed:
Refer to ADJUSTING TOE-IN .
Check camber values; if necessary, replace SWIVEL BEARING with over- or under-dimension variant.
NOTE:

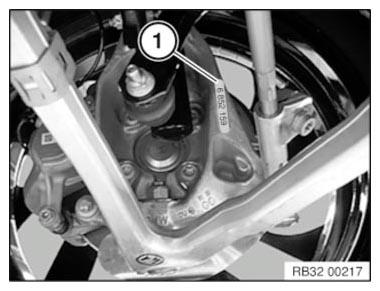

Camber correction swivel bearings can only be identified from the BMW part number (1).
See also the BMW spare parts catalog!
| Version | BMW part number |
|---|---|
| Standard | 6 852 159/160 |
| + 30' | 6 859 113/114 |
| -30' | 6 859 115/116 |
These camber correction swivel bearings are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot!
After Installation note:
- Check directional stability of car; if necessary, repeat TOE-IN .
