32 00 620 Adjusting rear axle

NOTE: A camber change always means a track change as well. The camber must therefore be adjusted first.

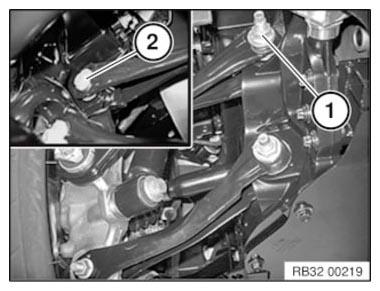

Adjusting camber

Replace nut (1) and apply 5 Nm.

Turn eccentric screw (2) to adjust camber to set point value.

Tighten nut (1) giving counter support to eccentric screw (2) at same time.

Tightening torque 33 32 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

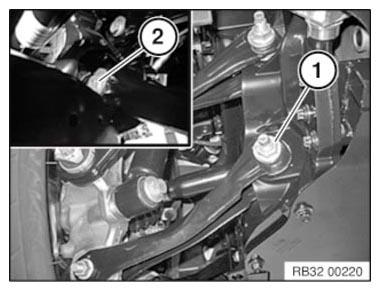

Adjusting track:

Replace nut (1) and apply 5 Nm.

Turn eccentric screw (2) to adjust track to setpoint value.

Tighten nut (1) giving counter support to eccentric screw (2) at same time.

Tightening torque 33 32 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
