Remove engine compartment fan
Remove engine compartment fan

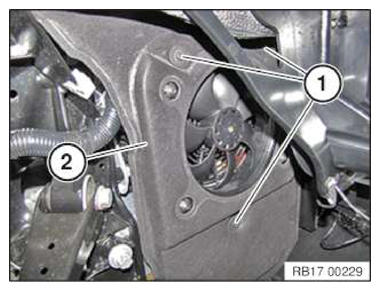

Loosen screws (1).
Remove the sound insulation (2).
Courtesy of BMW OF NORTH AMERICA, INC.

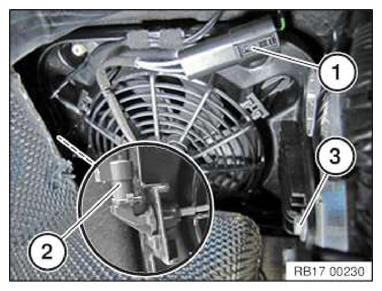

Unlock and disconnect connector (1) for the engine compartment fan.
Unlock and disconnect connector (2) on temperature sensor.
Unclip cable from fan cowl.
Loosen screw (3).
Courtesy of BMW OF NORTH AMERICA, INC.

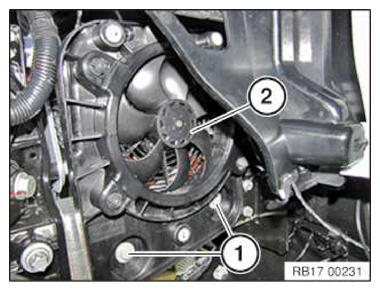

Loosen screws (1).
Remove engine compartment fan (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
