Remove complete exhaust system
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavy weight
.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

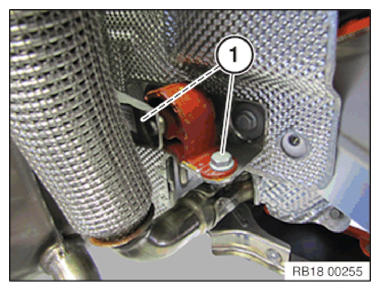

- Loosen nuts (1).
- Loosen screw (2).

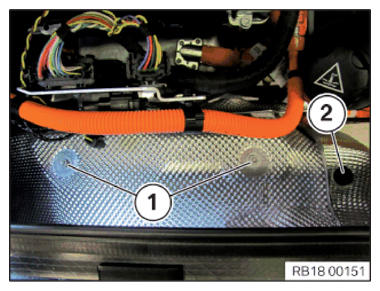

- Loosen screws (1).
- Loosen nuts (2).

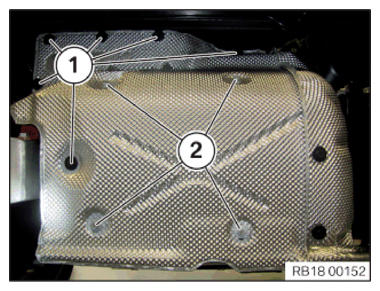

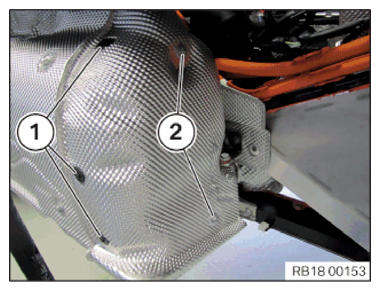

- Loosen screws (1).
- Loosen nuts (2).
- Remove heat shields.

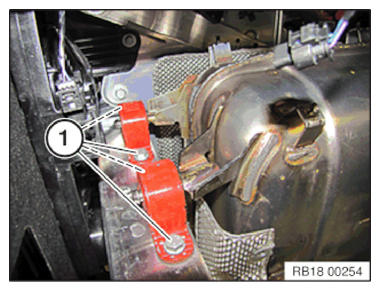

- Loosen screws (1).
- Loosen screws (1).

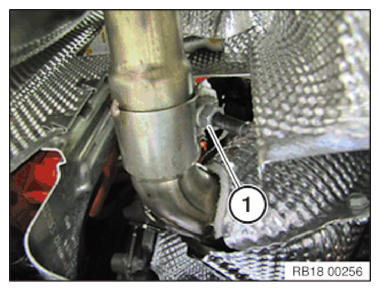

- Unfasten clamp (1).
- Remove exhaust system.
