Installing the safety box

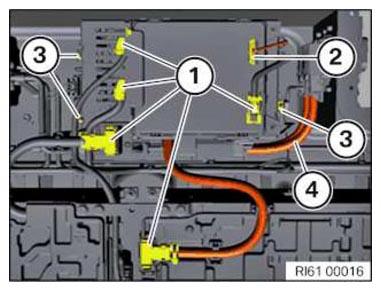

- Insert the safety box and tighten the nuts (3) with the special tool 2 357 541 .
TIGHTENING TORQUES SPECIFICATIONS
| Safety box to housing well | ||
|---|---|---|
| M6 | Tightening torque | 11.8 Nm |
- Connect connectors (1) and lock.
- Connect the connectors (2) for the isolation detector and lock.
- Connect the high-voltage connector (4) to the safety box and lock in place.

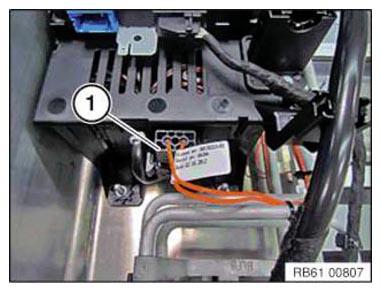

- Connect the connector of the heating for the high-voltage battery unit (1) and lock in place.
