Installing the complete exhaust system

CAUTION: Component with heavy weight  .
Injury hazard!

• Note component's center of gravity.
• Support component using a jack.
• Secure component against falling off the jack.

CAUTION: Heavy component  .
Heavy components can lead to injury or damage  .

• Remove and install heavy components with the aid of another person/other persons.

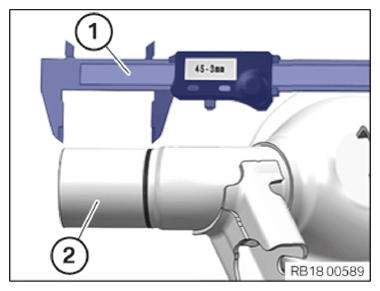

• At the catalytic converter exhaust pipe (2), use a measuring tool for centering (1) 45 mm and then mark the area with a touch-up stick (if applicable, temperature resistant).

  Courtesy of BMW OF NORTH AMERICA, INC.

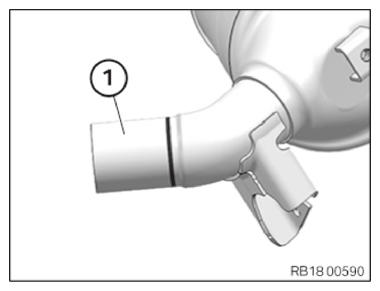

• Clean the exhaust pipe (1) of the catalytic converter with a wire brush.

  Courtesy of BMW OF NORTH AMERICA, INC.

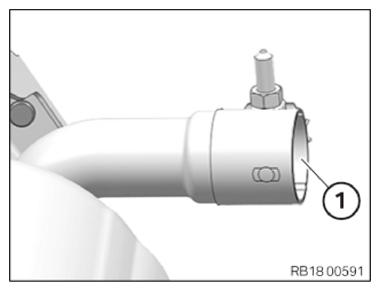

• When reinstalling the same rear silencer: Clean the exhaust pipe (1) of the rear silencer with a wire brush.

  Courtesy of BMW OF NORTH AMERICA, INC.

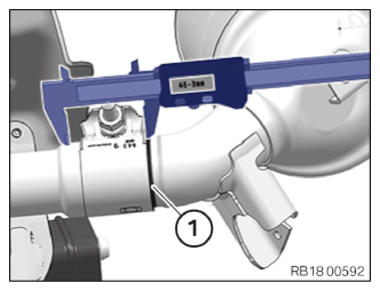

• Slide the exhaust pipe of the rear silencer onto the exhaust pipe of the catalytic converter up to the mark (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, replace clamp.

  Parts:  cl

• Tighten clamp (1).

TIGHTENING TORQUES SPECIFICATIONS

Exhaust system to catalytic converter
Ribbon cable clamp If necessary, replace clamp.	Tightening torque	33 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Check rubber mount for damage, replace if necessary.
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Rubber mount on exhaust bracket
M8 screw	Tightening torque	13 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Check rubber mount for damage, replace if necessary.
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Rubber mount on exhaust bracket
M8 screw	Tightening torque	13 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the heat shields.
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Screw M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (2).

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Nut M6	Tightening torque	3 Nm

• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Screw M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (2).

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Nut M6	Tightening torque	3 Nm

• Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Nut M6	Tightening torque	3 Nm

• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATIONS

Heat shield to exhaust system
Screw M6	Tightening torque	8 Nm
