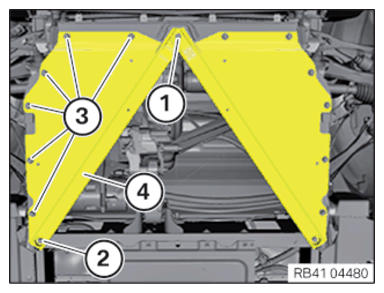

Install the horizontal strut on the left

• Position the horizontal strut on the left (4).
• Hand-tighten the bolts (3).
• Tighten down screws (1) and (2).

TIGHTENING TORQUES SPECIFICATIONS

Horizontal strut to Drive module
M10	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (3).

TIGHTENING TORQUES SPECIFICATIONS

Horizontal strut to Drive module
M8	Tightening torque	28 Nm
