Install rear bumper panel
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Connect associated plug connections.

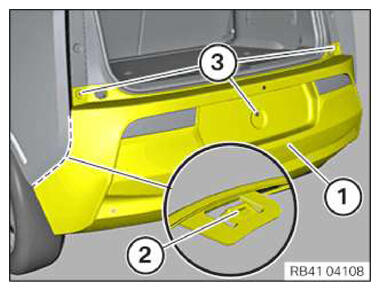

- Position the bumper cover (1) and clip in at the detents (2) on the left and right.
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATIONS
| Bumper cover to guide, middle | ||
|---|---|---|
| Tightening torque | 2 Nm | |

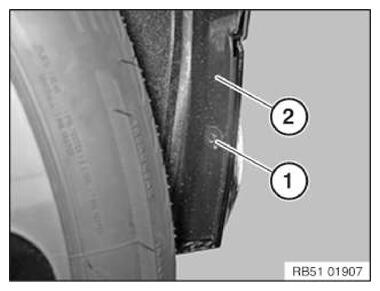

- Tighten bolts (1) on the wheel arch cover (2) on the left and right.
TIGHTENING TORQUES SPECIFICATIONS
| Bumper cover on side wall | ||
|---|---|---|
| Tightening torque | 2 Nm | |

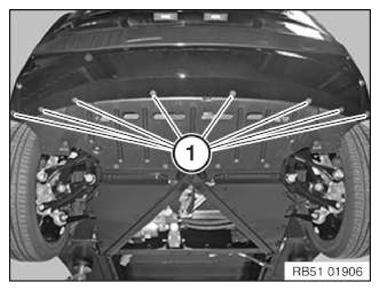

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Bumper cover to underbody planking | ||
|---|---|---|
| Tightening torque | 3 Nm | |
