Install engine compartment fan

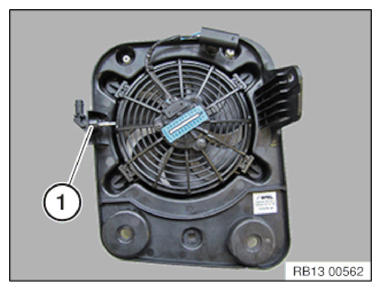

When replacing the engine compartment fan: Remount the temperature sensor (1).
Unclip temperature sensor (1) from the engine compartment fan.
Check the temperature sensor for damage and, if necessary, replace it.
Clip in temperature sensor on the engine compartment fan.

Courtesy of BMW OF NORTH AMERICA, INC.
Install engine compartment fan (2).
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Engine room ventilator on deformation element
M8 screw	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATIONS

Engine room ventilator on vertical strut
Screw M6	Tightening torque	8 Nm

Connect the connector (2) on the temperature sensor and clip in the cable on the fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector (1).
Install the sound insulation (2).
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATIONS

Sound insulation to engine compartment
screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATIONS

Engine room ventilator on deformation element
M8 screw	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (3).
Connect connector (2) on the temperature sensor and clip in cable on the fan cowl.
Connect connector (1) for the engine compartment fan.

TIGHTENING TORQUES SPECIFICATIONS

Engine room ventilator on vertical strut
Screw M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Reading out the fault memory

Check

Result

» A fault memory entry is present.

Measure
