12 31... Replacing alternator belt pulley

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

12 7 110

Remove and install alternator drive belt.

Depending on alternator type, grip shaft with:

hexagon socket.
multi-tooth socket.
Torx socket wrench.

Release nut with special tool 12 7 110.

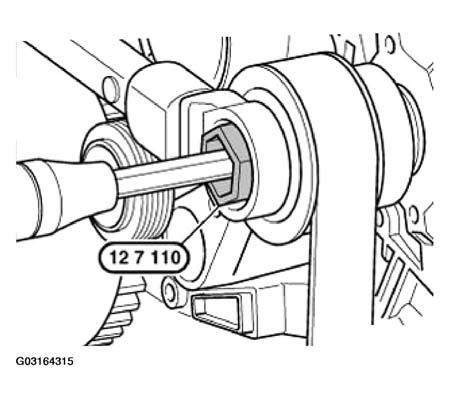

Fig 1: Removing & Installing Alternator Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque: Pulley 45 N.m, Alternator with cooling jacket 80 N.m.
