Repairing The Bushing On The Stiffening Panel

Preliminary work

Follow-up work

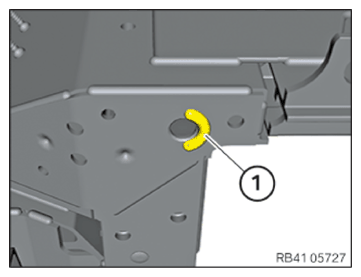

• Grind down the residue from the weld seam (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

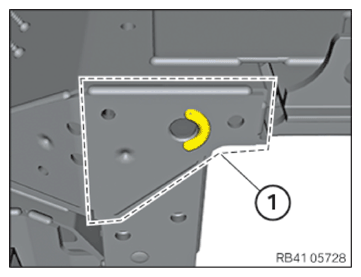

• Check surface (1) around the weld seam for cracks.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Weld seams or panel cracked.

  Measure

• Renew the front axle module.

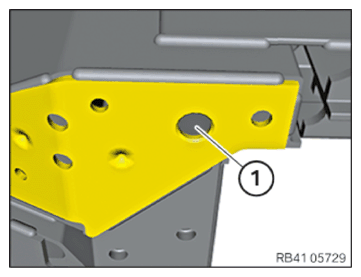

• Drill a hole (1) with a 13 mm diameter.
• Set M10 blind rivet nut.

  Parts:  Blind rivet nut 61257622385

  Courtesy of BMW OF NORTH AMERICA, INC.

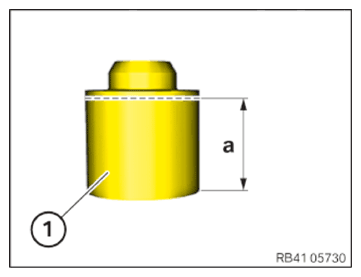

• Shorten the connector (1) to dimension a.

  Dimension a=14, 7 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

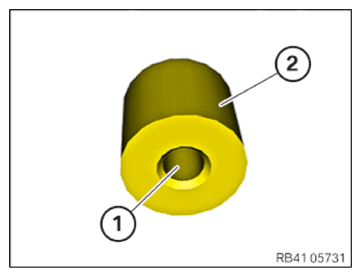

• Drill a hole (1) for the connector (2) with a 10.5 mm diameter.

  Courtesy of BMW OF NORTH AMERICA, INC.

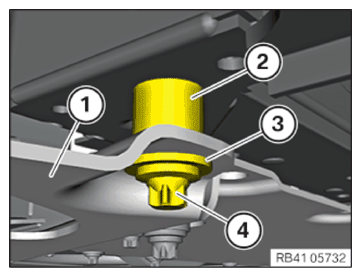

• Position the connector (2) between the stiffening plate (1) and the front axle module.

  Fasten the stiffening plate (1) using the washer (3) and the screw (4).

  Parts:  Washer 07119904119

  Parts:  Torx screw 07119908277

  TIGHTENING TORQUES SPECIFICATION

  Thrust field to front axle support
  M8	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
