84 10 820 Remove and install (replace) telematics control module (i3 base, i3s)
WARNING:
High-voltage system - mortal hazard!
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
IMPORTANT:
Observe the INFORMATION ON PROTECTION FROM ELECTROSTATIC DISCHARGE
.
Comply with notes and instructions on HANDLING OPTICAL FIBER .
Preliminary work needed:
- Refer to DISCONNECTING CABLE FROM BATTERY EARTH LEAD .
- Refer to REMOVING REAR SEAT .

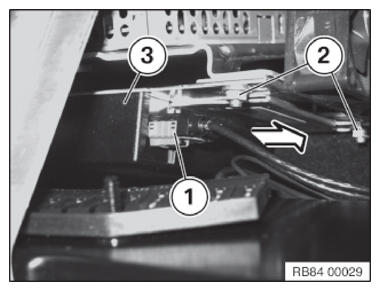

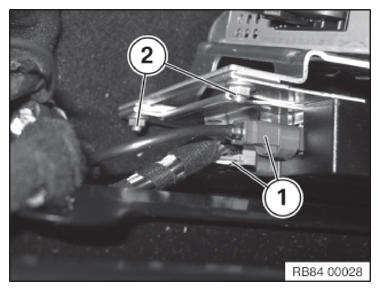

Unlock and disconnect the connector (1).
Unscrew nuts (2).
Unlock and disconnect the connector (1).
Unscrew nuts (2).
Remove telematics control module (3) in arrow direction.
Installation note:
Note color coding of connector.
NOTE:
When replacing the telematics control module check whether the faulty telematics control module is equipped with an EMERGENCY BATTERY :
- if no . then the new part is installed without an emergency battery !
- If yes , ten the new parts is to be equipped with a new emergency battery (separate order, telematics control module is shipped without an emergency battery!)
Replacement:
- Carry out VEHICLE PROGRAMMING/CODING .
