Remove spring strut
Remove spring strut
Unlock and disconnect plug connection
(1)
at the spring strut.
Remove cable from holder
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Loosen screws
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

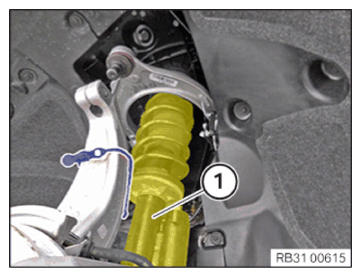

Feed out and remove spring strut
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
