Installing the undershield
Installing the undershield

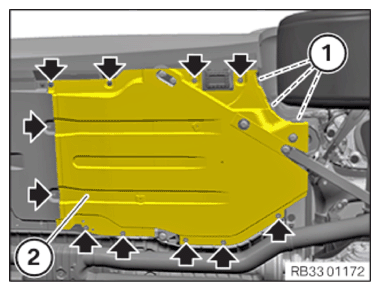

Position the undershield
(2)
.
Tighten screws and nuts (arrows).
Tighten the screws
(1)
.
TIGHTENING TORQUES SPECIFICATION
Undershield, side
Hexagon screw
Tightening torque
2.6 Nm
Plastic nut
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
