Remove accelerator pedal module

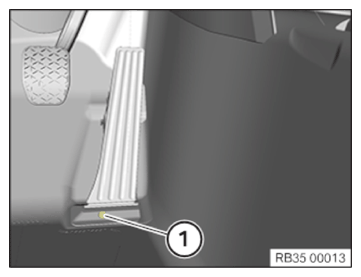

- Lever out cover (1)
towards the top.

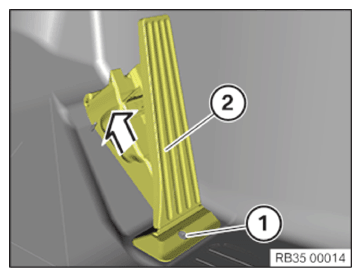

- Release the hexagon socket screw (1) .
- Feed out accelerator pedal module (2)
upwards (see the next step).

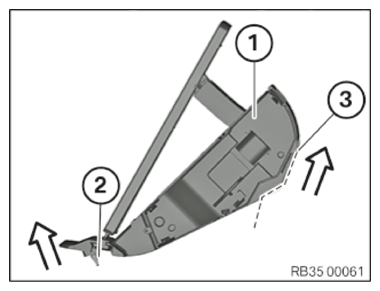

- Lift the accelerator pedal module (1) at the bottom approx. 2 cm to feed out from the holder (2) .
- Slide the accelerator pedal module (1)
out of the holder (3)
in the arrow direction (diagonally upwards).

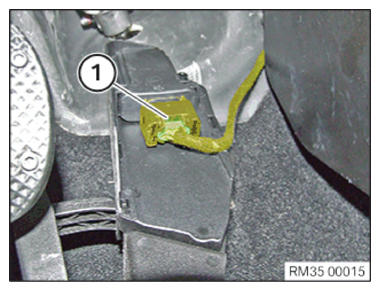

- Disconnect plug connection (1)
and remove the accelerator pedal module.
