Install steering column shroud lower section

Remove the rubber plugs (1) from the steering column shroud lower section.

Courtesy of BMW OF NORTH AMERICA, INC.

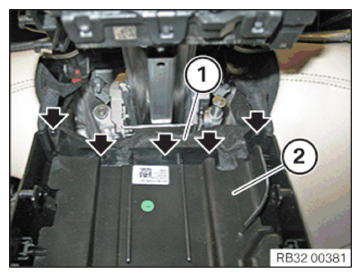

Clip in the gap cover (1) into the steering column shroud lower section (2) (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the wire (1) to the holder (2).

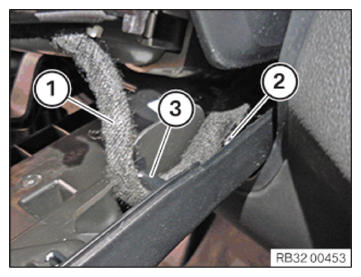

Insert the line (1) at the guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

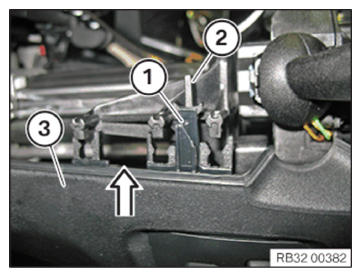

Align the steering column shroud lower section (3) to the steering column using the retaining lug (2).
Push the steering column shroud lower section (3) upwards in arrow direction until the lug (1) locks with the retaining lug (2).

Courtesy of BMW OF NORTH AMERICA, INC.
