Remove steering column
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
Preliminary work
- Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
- Refer to REMOVING LOWER PART OF STEERING SHAFT .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING AIRBAG UNIT .
- Refer to REMOVING STEERING WHEEL .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL MECHANISM .

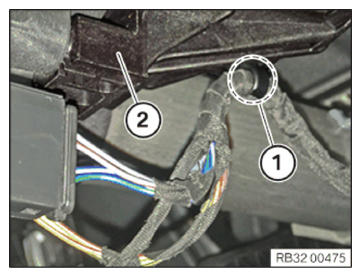

- Detach cable (1)
from the steering column (2)
.

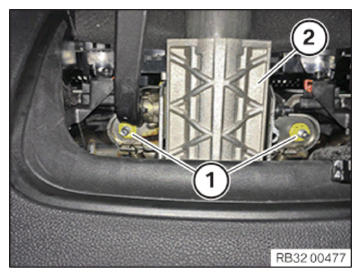

- Loosen the nuts (1) on the steering column (2) of the footwell.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

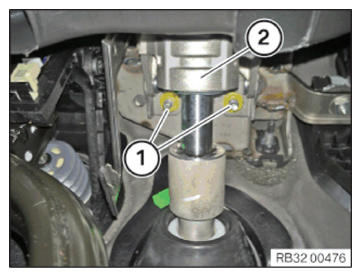

- Loosen the nuts (1)
on the steering column (2)
of the footwell.

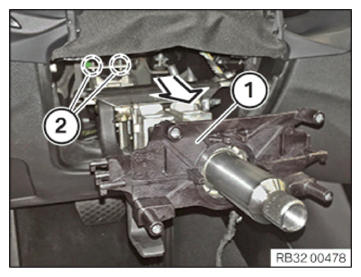

- Feed out steering column (1) at the pins (2) .
- Feed out steering column (1) in arrow direction and remove.
