Removing steering column shroud upper section
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
NOTE:
Perform the steps on the right and left side.

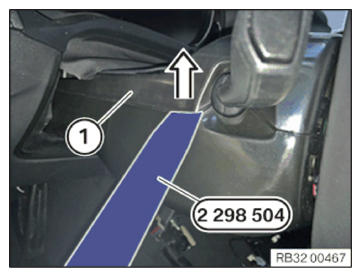

- Unlock the steering column shroud upper section (1)
with the special tool 2 298 504
and fold it upwards.
- Unclip the steering column shroud upper section (1) from holders (2) .
- Remove the steering column shroud upper section (1) .
