Installing the engine wiring harness for sensor system 1

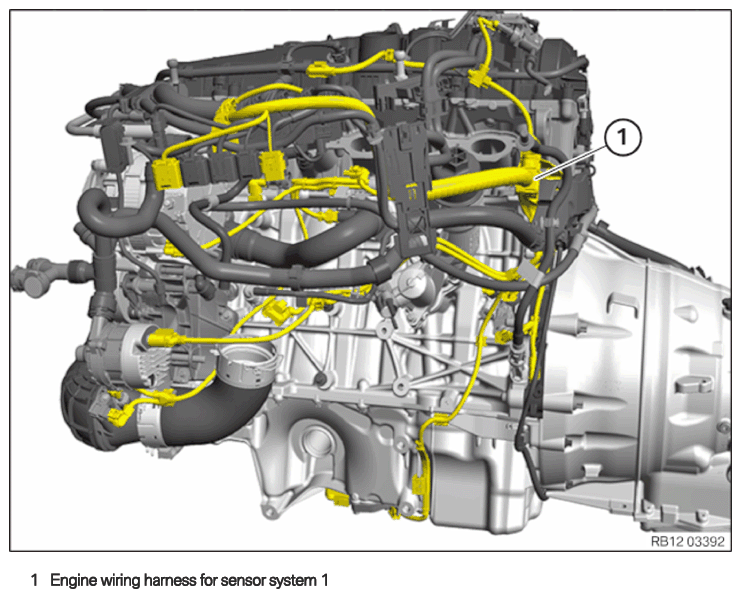

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in and install the engine wiring harness (1)
for the sensor system 1.
- Feed in and install the engine wiring harness (1) for the sensor system 1.

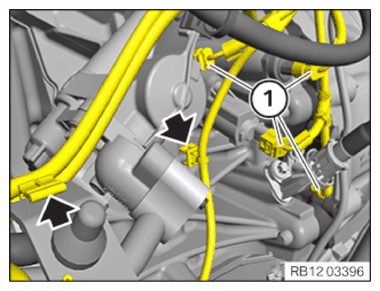

- Secure clamps (1)
.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Secure clamp (arrow).
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

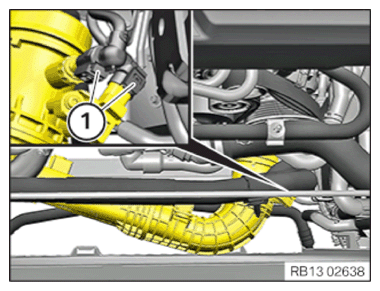

- Feed in and install the charge air line (1)
in arrow direction.
- Secure the clamp (1) .
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and install the engine wiring harness (2) for the sensor system 1.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | Tightening torque | 10 Nm |
- Guide in the wiring harness section (2) and install.
- Make sure that the lock (arrow) engages correctly.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | Tightening torque | 10 Nm |
- Connect connectors (1)
and (2)
and lock.
The connectors (1) and (2) must engage audibly.
- Secure clamp (arrow).
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
