Install eccentric shaft

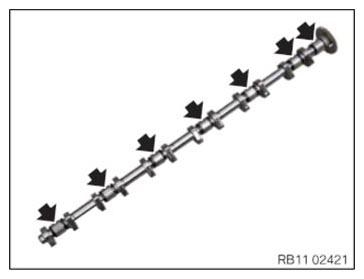

• Check all needle bearings (arrows) of the eccentric shaft for ease of movement.
• If the needle bearings are stiff, replace the eccentric shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

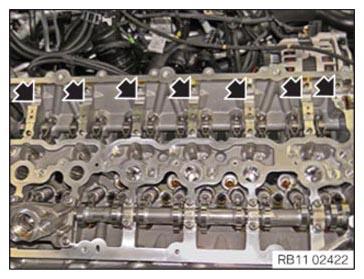

• Clean all bearing positions in cylinder head and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

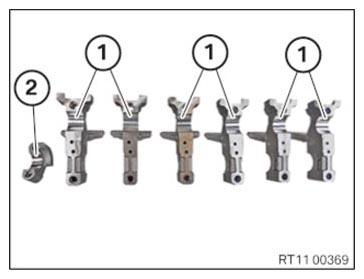

• Clean bearing positions (1)  of the bearing brackets and coat with motor oil.
• Clean the bearing position (2)  of the bearing cap and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

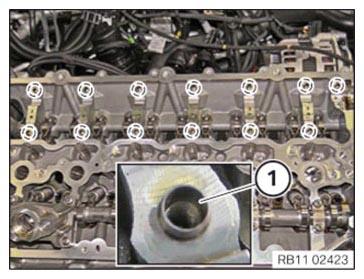

• Check all guide bushings (1)  for damage and replace faulty guide bushings (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the needle bearing (1)  up to the stop in the arrow direction before installing the eccentric shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Oil all needle bearings of the eccentric shaft (1)  .
• Insert eccentric shaft (1)  into the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the bearing bracket.

  All bearing brackets must be installed again in the same position from where they were removed.

• Tighten down screws (1)  .

• Install it with a bearing cap provided with a stop (1)  .
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SERVOMOTOR FOR THE ECCENTRIC SHAFT .
• Refer to INSTALLING INTAKE CAMSHAFT .
• Refer to ADJUSTING THE CAMSHAFTS WITH THE SPECIAL TOOL .
• Refer to INSTALLING THE INTAKE ADJUSTER .
• Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
• Refer to RELEASING VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
• Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
• Refer to PRE-TENSIONING THE TIMING CHAIN WITH THE SPECIAL TOOL .
• Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
• Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
• Refer to REMOVING ALL SPECIAL TOOLS .
• Refer to INSTALLING CHAIN TENSIONER .
• Refer to CHECKING THE TIMINGS OF THE CAMSHAFT .
• Refer to CHECKING THE INTERMEDIATE LEVER CLASSIFICATION .
• Refer to INSTALLING ALL INTERMEDIATE LEVERS .
• Refer to INSTALLING ALL GATES .
• Refer to CHECKING THE POSITION OF THE INTAKE CAMSHAFT .
• Refer to CHECKING THE POSITION OF THE INTAKE CAMSHAFT AT CYLINDER 3 AND 4 .
• Refer to INSTALLING TORSION SPRINGS .
• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
• Refer to INSTALLING CYLINDER HEAD COVER .
• Refer to INSTALLING THE COOLANT RETURNING LINE BETWEEN THE EXHAUST TURBOCHARGER AND THE THERMOSTAT .
• Refer to INSTALLING THE COOLANT FEED LINE PART 2 BETWEEN THE AUXILIARY COOLANT PUMP AND EXHAUST TURBOCHARGER .
• Refer to FASTENING THE AUXILIARY COOLANT PUMP FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING BOTH ACTUATORS .
• Refer to PREPARING THE INJECTORS FOR INSTALLATION .
• Refer to INSTALLING THE HIGH-PRESSURE RAIL WITH INJECTORS OF THE CYLINDERS 4 TO 6 .
• Refer to INSTALLING THE HIGH-PRESSURE RAIL WITH INJECTORS OF THE CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE HIGH PRESSURE PUMP FOR CYLINDERS 4 TO 6 .
• Refer to INSTALLING THE HIGH PRESSURE PUMP OF CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE HIGH PRESSURE LINE BETWEEN THE HIGH PRESSURE PUMP AND THE RAIL FOR CYLINDERS 4 TO 6 .
• Refer to INSTALLING THE HIGH PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL SPARK PLUGS .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR CYLINDERS 4 TO 6 .
• Refer to FASTENING THE CHARGE AIR CROSSING .
• Refer to INSTALLING RIGHT AIR DUCT .
• Refer to INSTALLING THE LEFT AIR DUCT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING THE SECOND END PANEL UNDERNEATH .
• Refer to INSTALLING THE COWL UPPER PART .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to PARTIALLY INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
