Installing the electromechanical steering gear

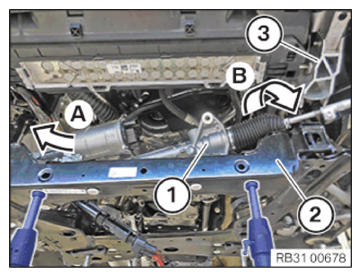

• Guide in the electromechanical steering gear (1)  with the right tie rod in the arrow direction (A)  .
• Guide in the electromechanical steering gear (1)  with the left tie rod between the front subframe (2)  and the front subframe adapter (3)  in the arrow direction (B)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

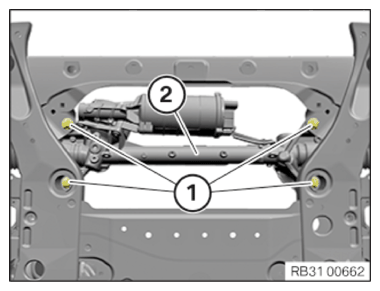

• Position the electromechanical steering gear (2)  on the front axle support.
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE ANTI-ROLL BAR .
• Refer to INSTALLING THE HOLDER FOR THE TRANSMISSION OIL LINES .
• Refer to RAISING THE FRONT SUBFRAME .
• Refer to FASTENING FRONT AXLE SUPPORT .
• Refer to SECURING THE TRANSMISSION OIL COOLER LINES ON THE HOLDER .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT ON THE ANTI-ROLL BAR .
• Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE TIE ROD TO THE RIGHT AND LEFT ON THE SWIVEL BEARING .
• Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
• Refer to SECURING THE DOUBLE PIVOT ON THE STEERING GEAR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR SECTION OF BRAKE AIR DUCT ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH TRIM .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY
• Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
• Refer to REPLACEMENT: COMMISSIONING (INITIALIZATION) OF THE ELECTROMECHANICAL STEERING .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
